Inspection Procedure E-3: Keyless Entry System: Encrypted Code Cannot Be Registered: Diagnosis

Check Trouble Symptom - Can the encrypted code register mode be set?
- YES : Go to Step 3.
- NO : Go to Step 2.
Check The Input Signal (By Using The Pulse Check) - Check the input signals from the following switches:
- Key reminder switch
- Hazard warning light switch
  CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502.

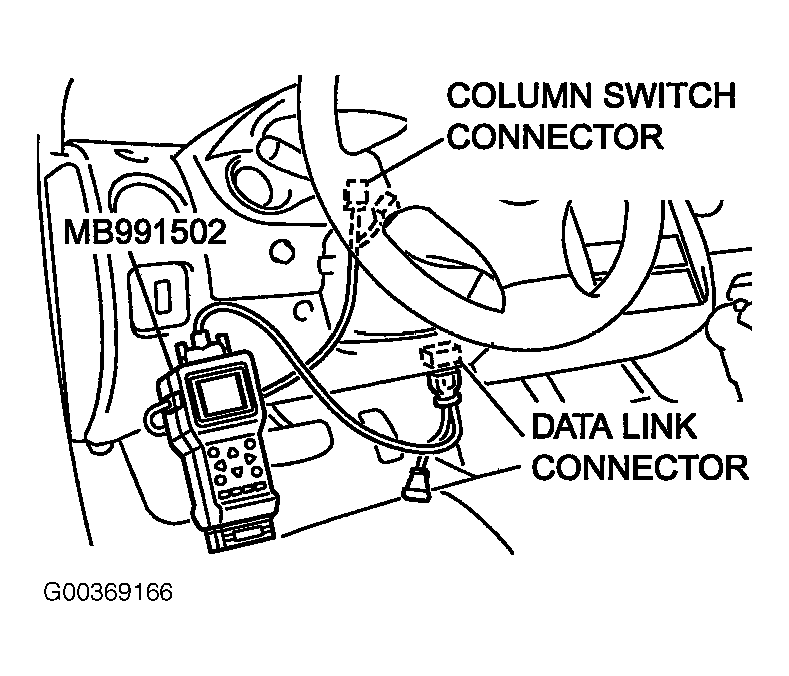

1. Connect scan tool MB991502 to the data link connector. See Figure.
2. If the switches (see Fig 1), which are applicable for the input signal check, are operated, check if scan tool MB991502 sounds or not.

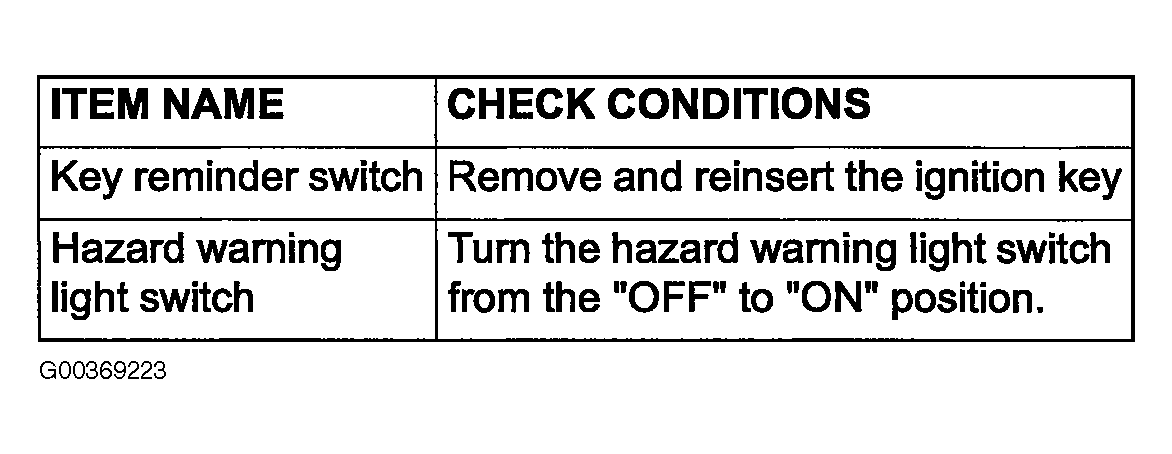

  Fig 1: Identifying Check Conditions
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the key reminder switch and the hazard warning light switch are operated, does scan tool MB991502 sound in each case?
- YES : Replace the ETACS-ECU. Check that the encrypted code can be registered in the transmitter.
- NO : Scan tool MB991502 does not sound when the ignition key is removed and reinserted: Refer to INSPECTION PROCEDURE P-1: ETACS-ECU DOES NOT RECEIVE A SIGNAL FROM KEY REMINDER SWITCH .
- NO : Scan tool MB991502 does not sound when the hazard warning light switch is turned from "OFF" to "ON": Refer to INSPECTION PROCEDURE P-2: THE ETACS-ECU DOES NOT RECEIVE ANY SIGNAL FROM THE HAZARD WARNING LIGHT SWITCH .
Check The Transmitter - When the transmitter's battery is replaced, can the encrypted code be registered?
- YES : No action to be taken.
- NO : Replace the transmitter. If the encrypted code can not be registered by means of the new transmitter, replace the ETACS-ECU. Check that the encrypted code can be registered in the transmitter.
