A/T Fluid Temperature Sensor Continuity Check

Remove the A/T fluid temperature sensor.
Measure the resistance between terminals 1 and 2 of the A/T fluid temperature sensor connector.

Fig 1: Testing A/T Fluid Temperature Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Standard value:

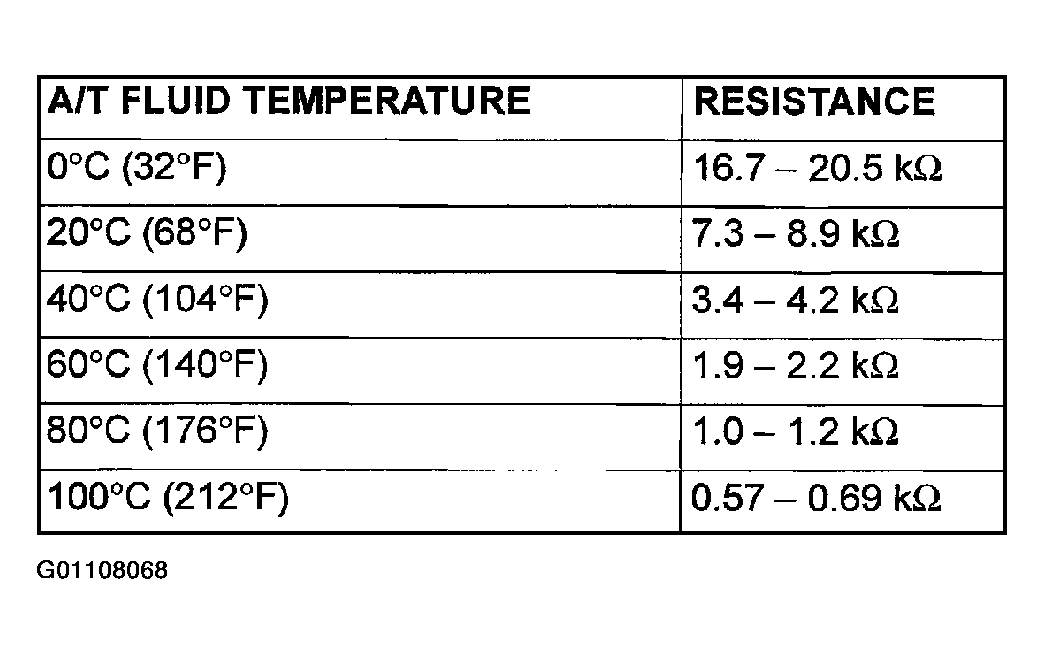

Fig 2: A/T Fluid Temperature/Resistance Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the A/T fluid temperature sensor resistance is not consistent with the fluid temperature, replace A/T fluid temperature sensor.
NOTE: The N range indicator light on the combination meter flashes when the temperature reaches approximately 125°C or higher, and then stops flashing when the temperature drops below approximately 115°C.
