Removal And Installation: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

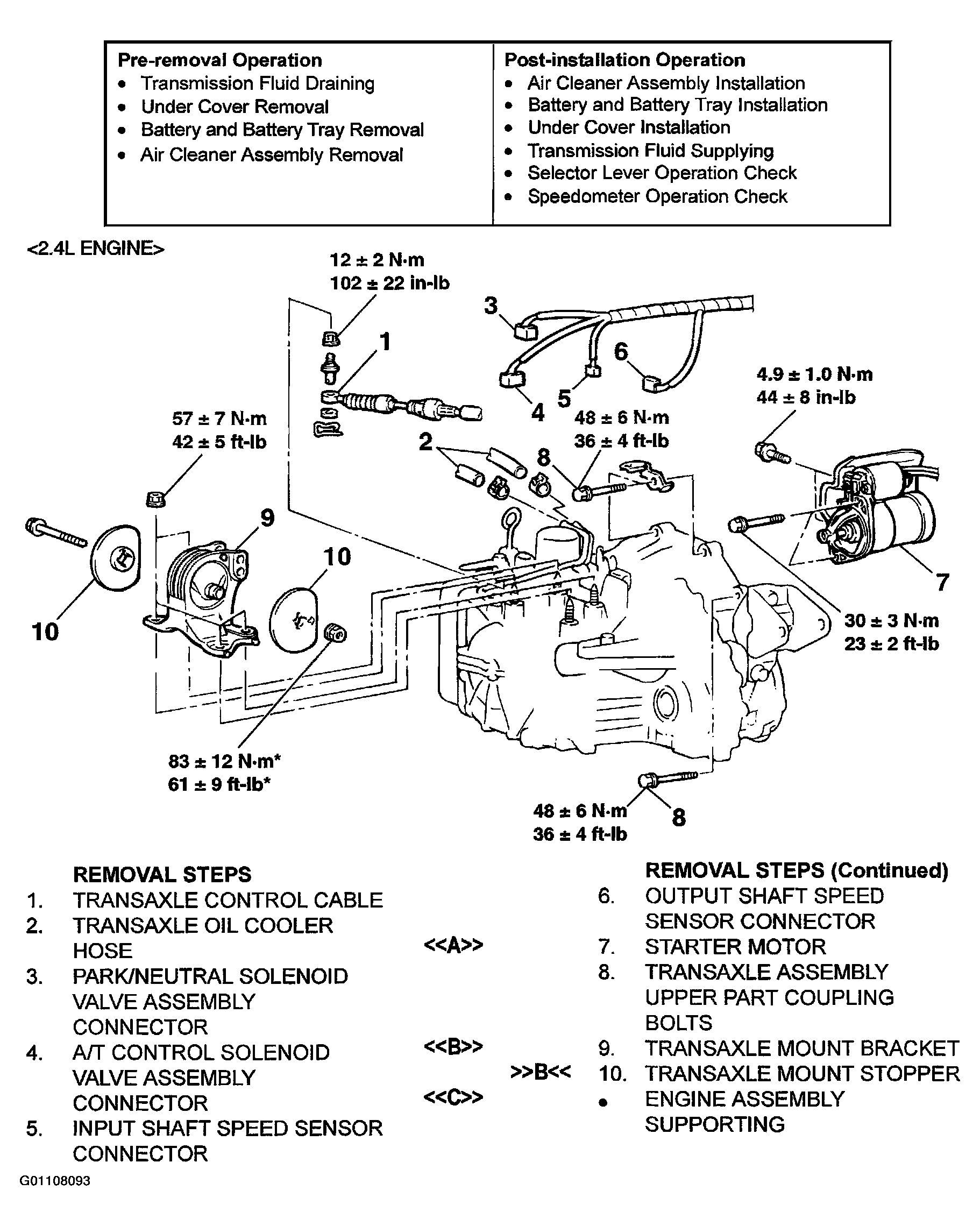

Fig 1: Removing & Installing Transaxle (2.4L) - 1 Of 2
G01108093Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

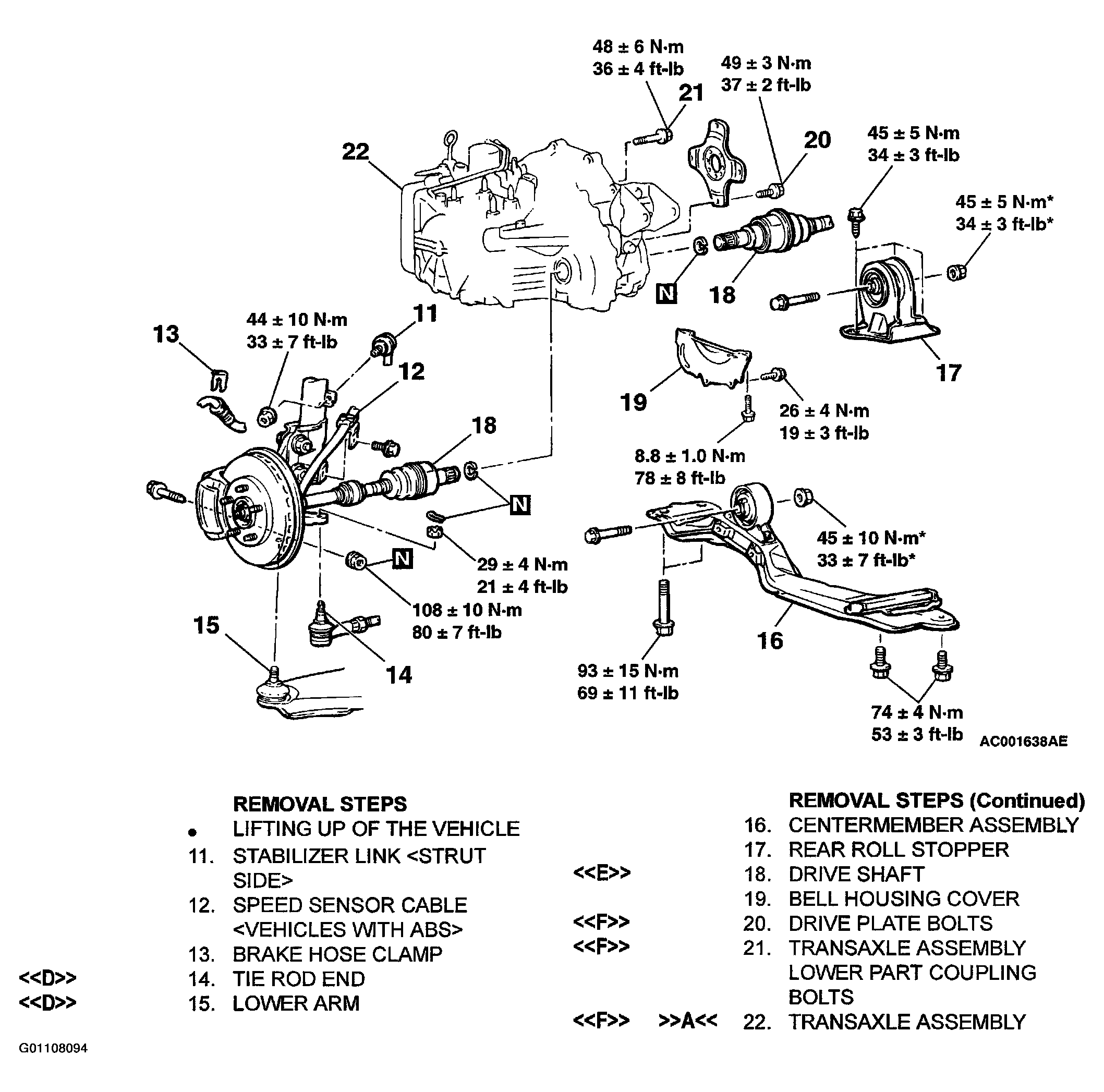

Fig 2: Removing & Installing Transaxle (2.4L) - 2 Of 2
G01108094Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

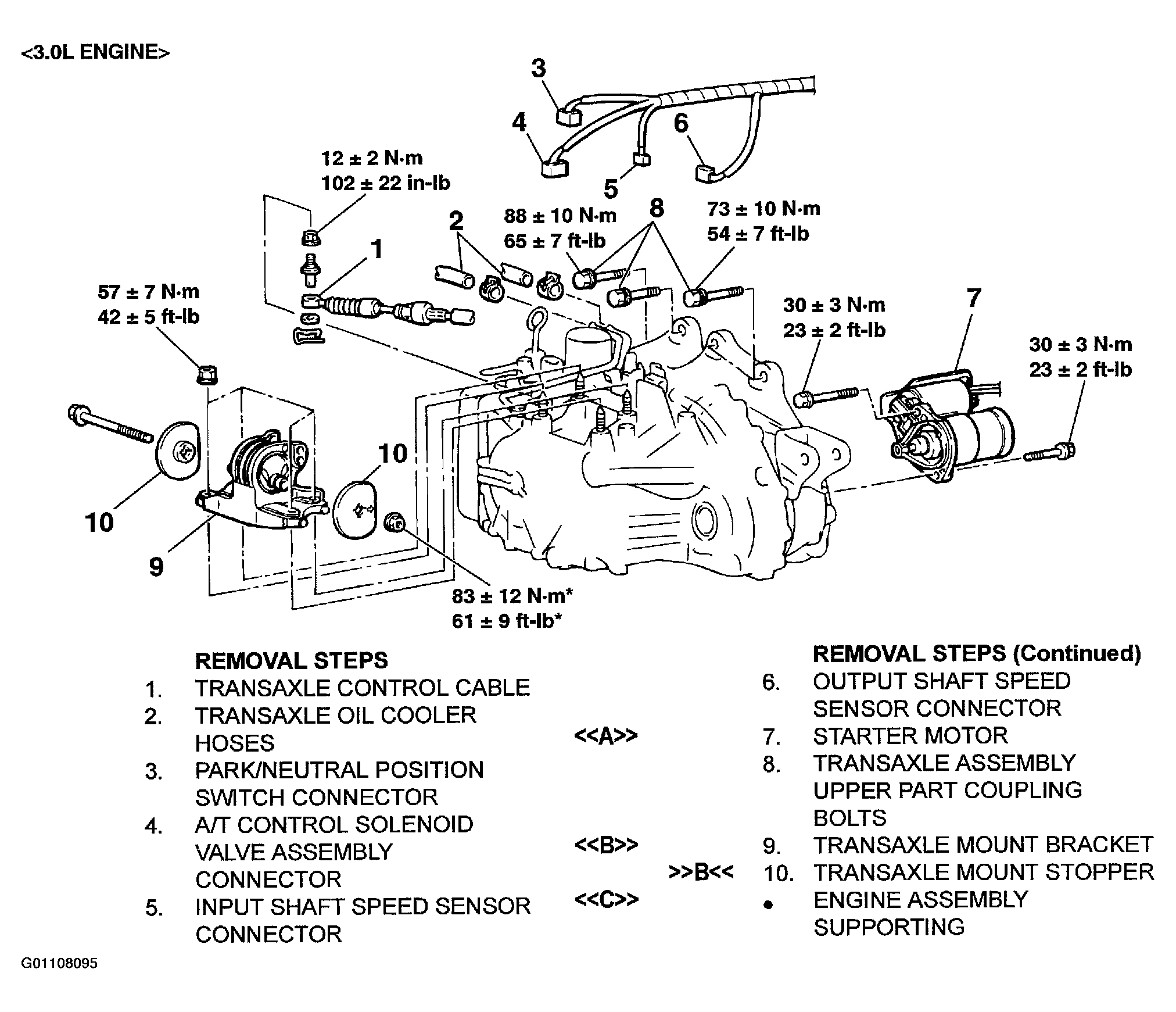

Fig 3: Removing & Installing Transaxle (3.0L) - 1 Of 2
G01108095Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle on the ground and loading the full weight of the engine on the vehicle body.

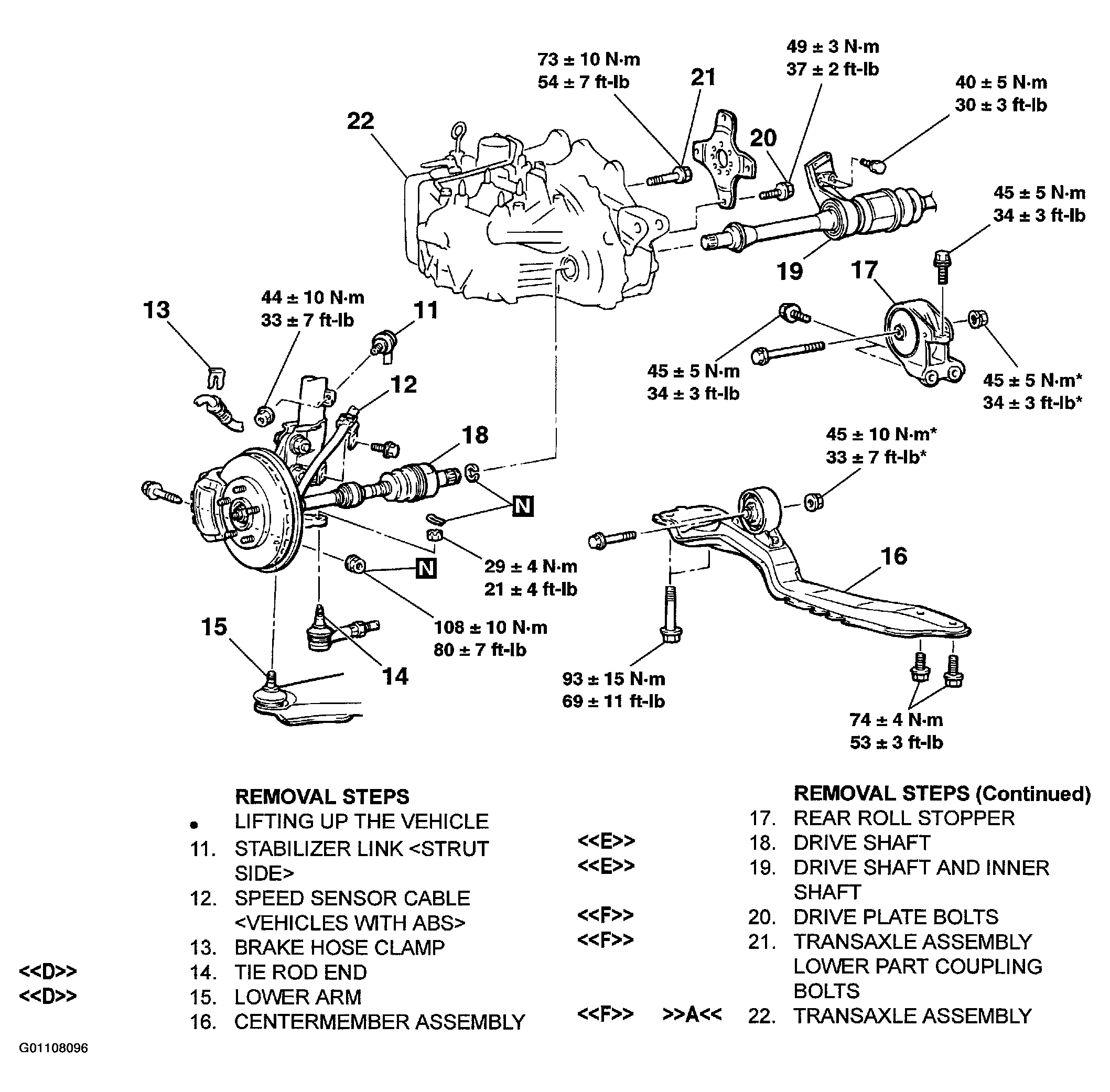

Fig 4: Removing & Installing Transaxle (3.0L) - 2 Of 2
G01108096Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
