Brake Rotor/Disc

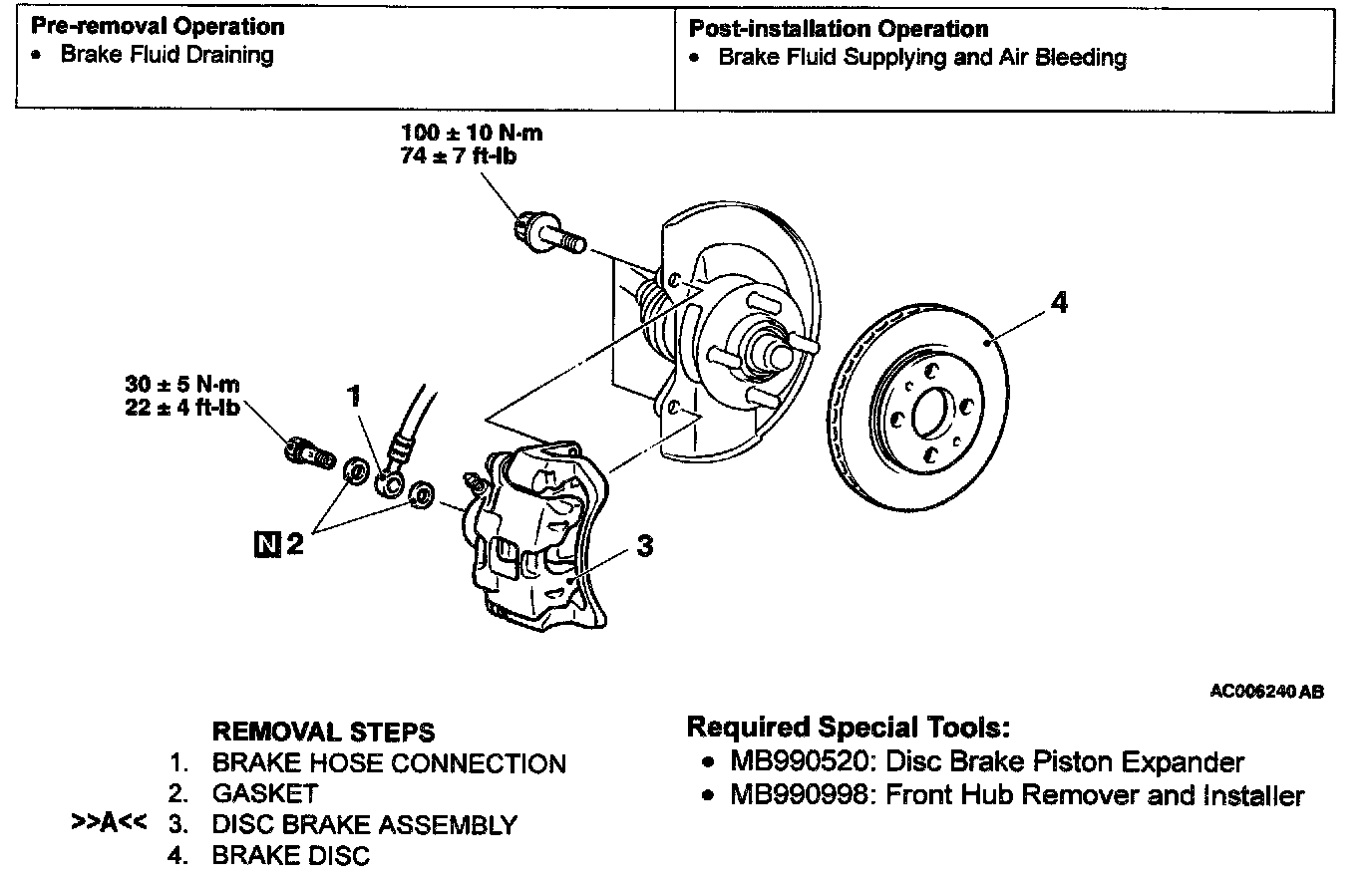

FRONT DISC BRAKE ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
Replacement

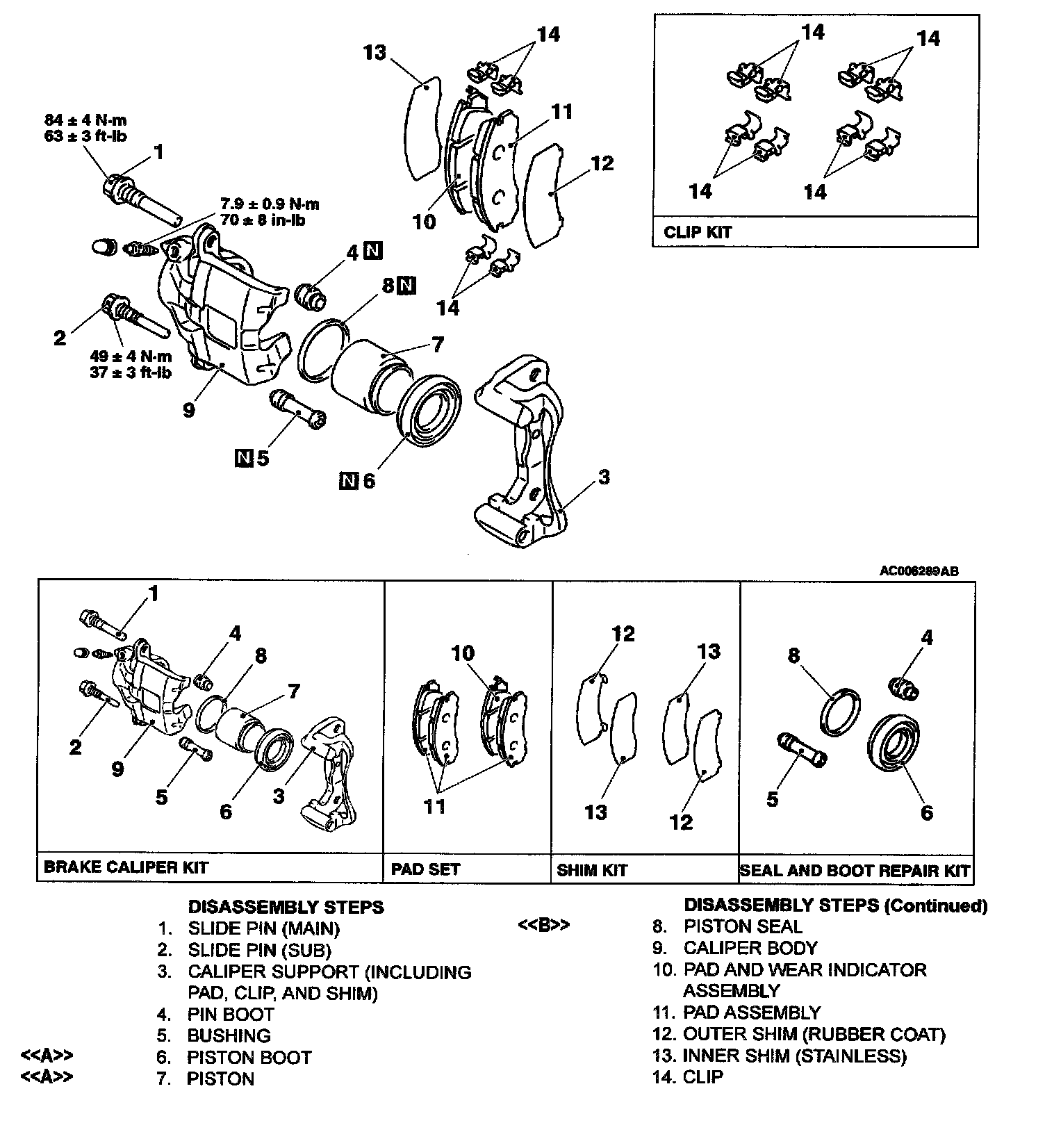

Overhaul
