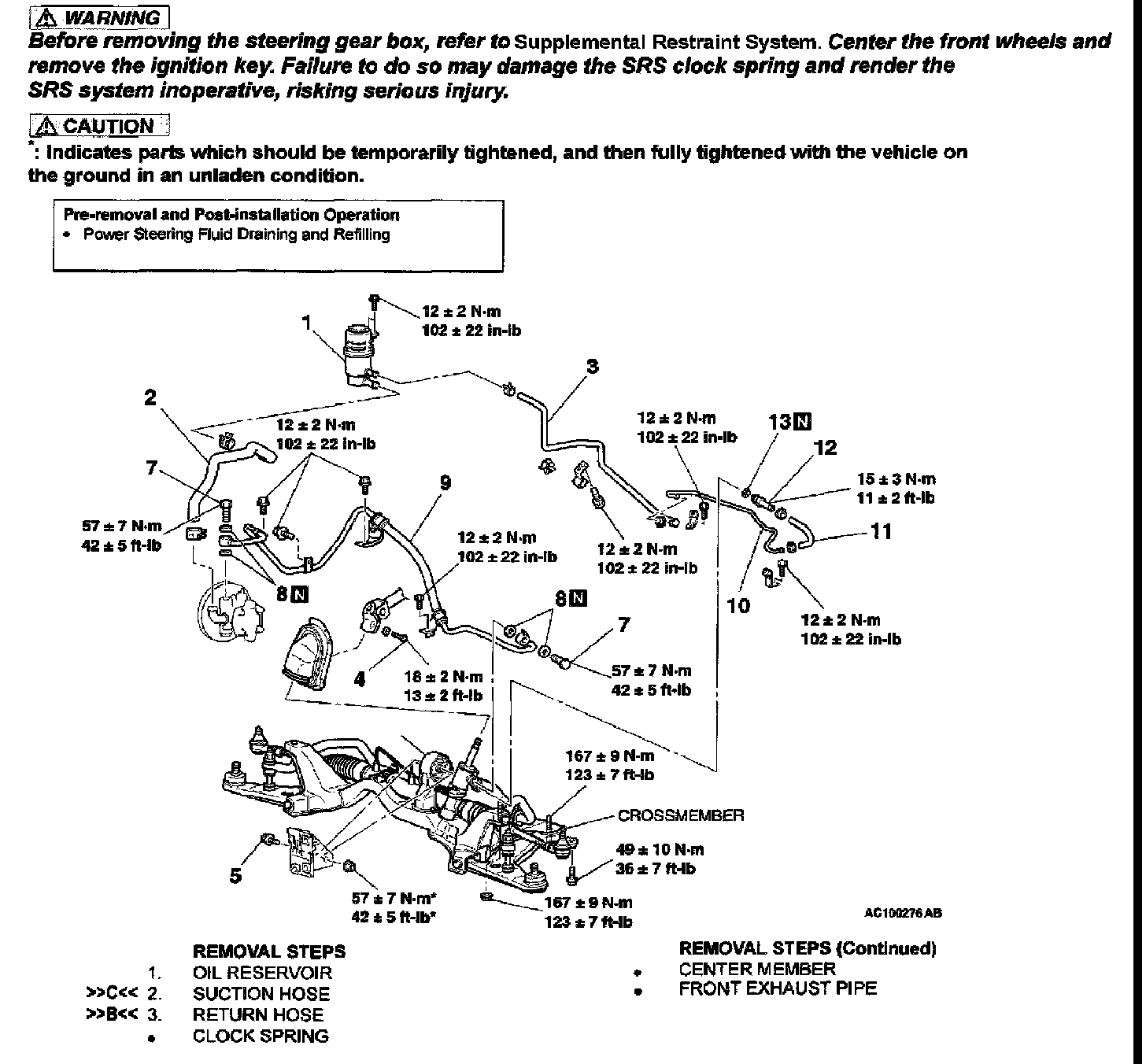

Power Steering Line/Hose

POWER STEERING HOSES REPLACEMENT W/ RELATED COMPONENTS





Part 1 of 2





Part 2 of 2
