Sectional View

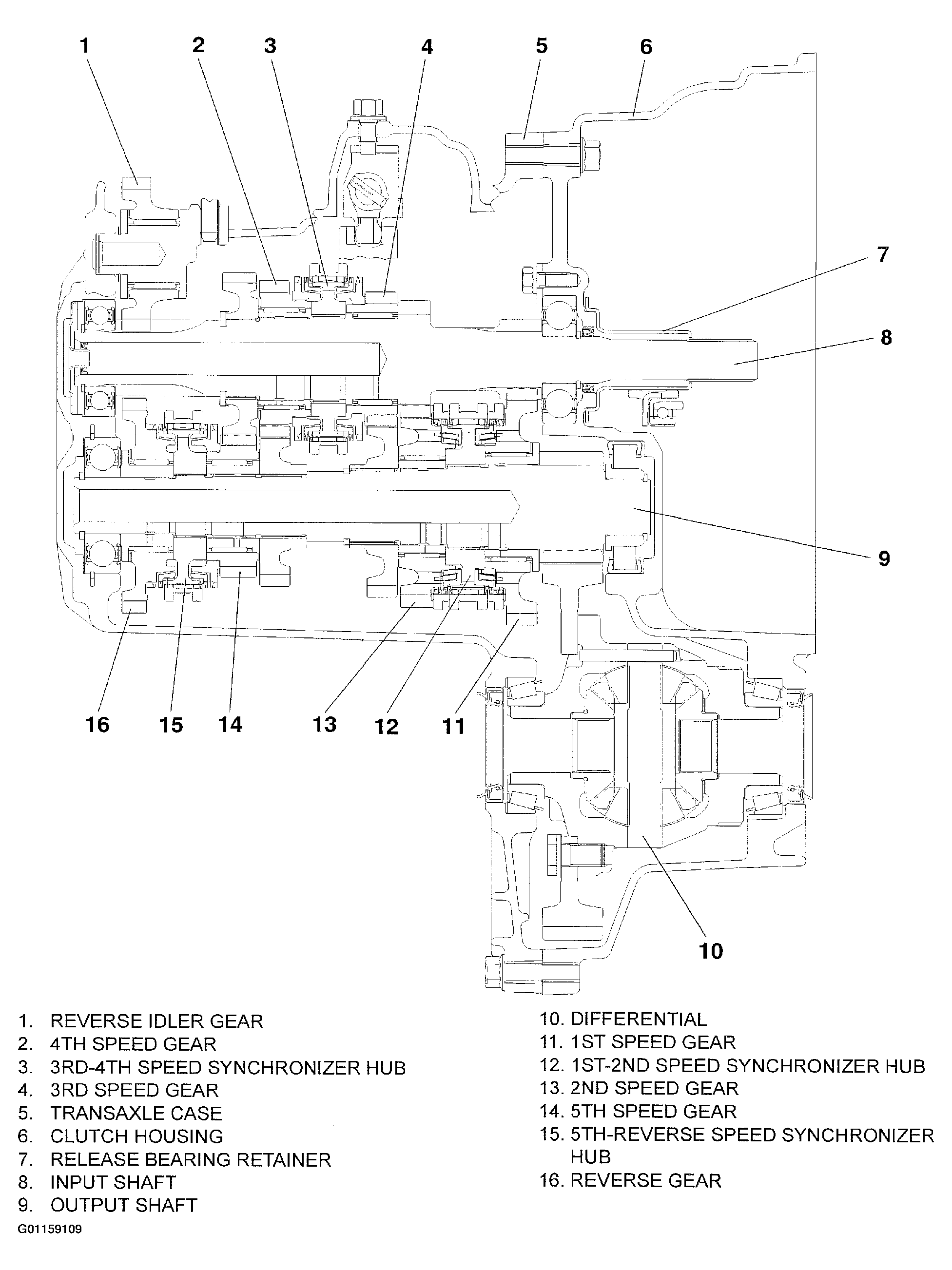

Fig 1: Identifying Sectional View Of Manual Transaxle
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
