Fastener Tightening Specifications

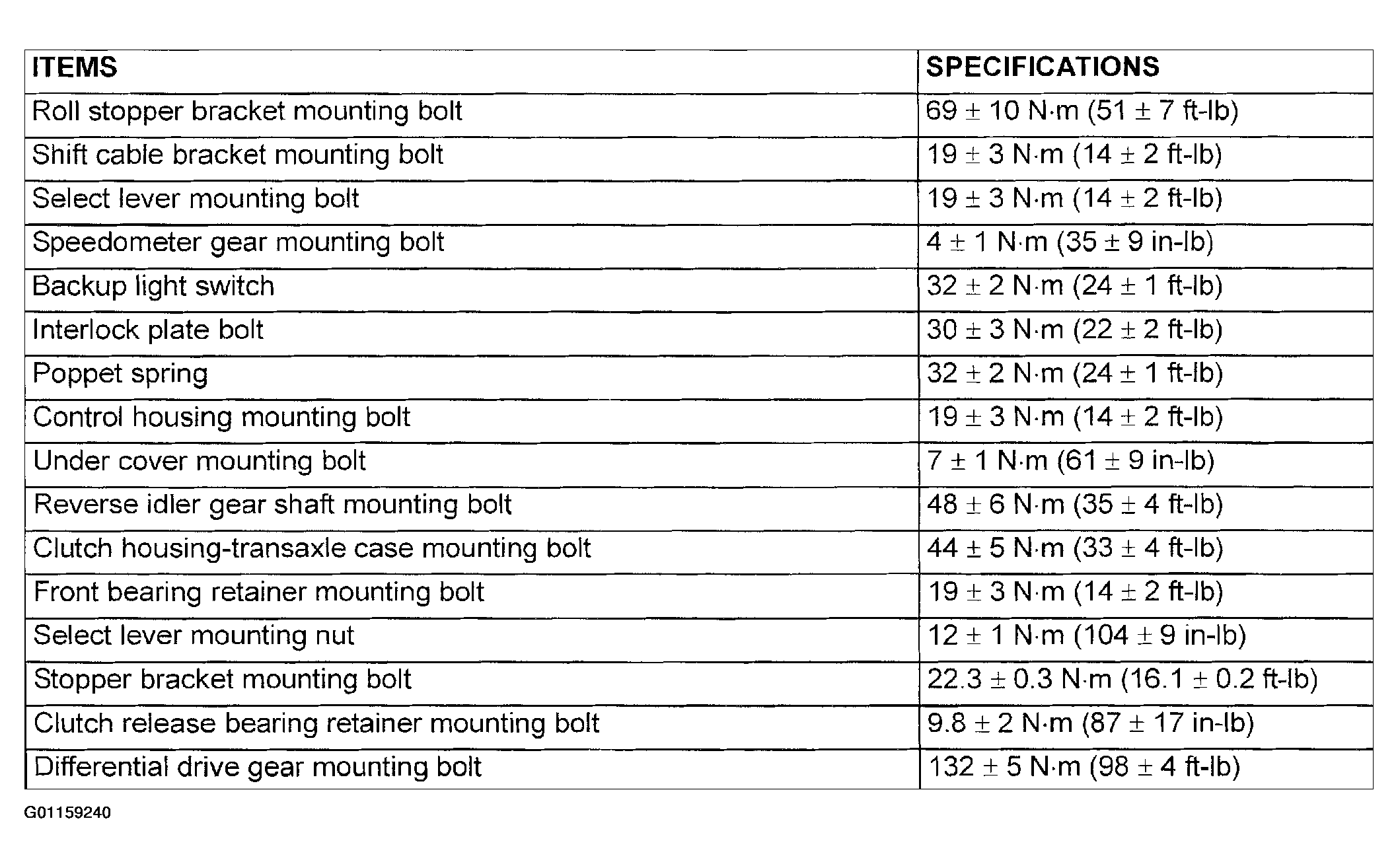

Fig 1: Fastener Tightening Torque Specifications Table
G01159240Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
