Ignition Lock: Testing and Inspection

KEY INTERLOCK MECHANISM CHECK

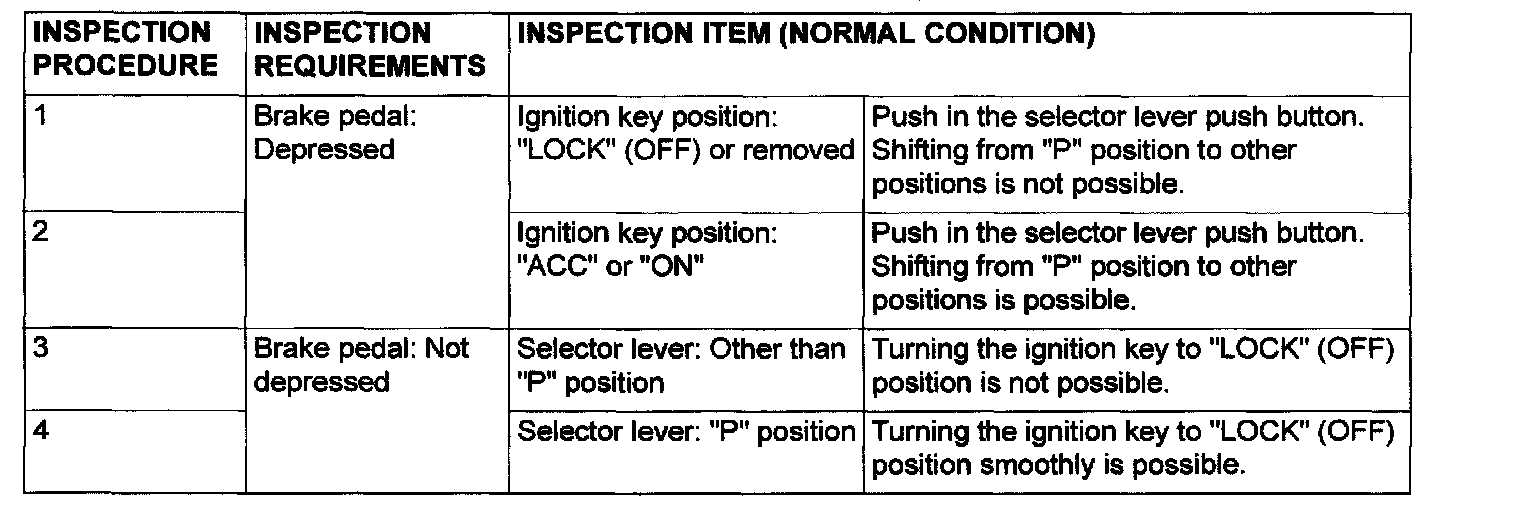

1. Carry out the following inspection.





2. When any of the above checks are not normal, adjust the key interlock cable by following procedure.
1. Remove the floor console.
2. Shift the selector lever to "P" position.
3. Turn the ignition key to the "LOCK" (OFF) position.
4. Loosen the locking nut of the key interlock cable.
5. Push the cable joint on the lock cam gently toward the arrow until the cable stops. Tighten the locking nut.
Tightening torque: 12 ± 2 Nm (107 ± 17 inch lbs.)
6. Install the floor console.
3. After adjusting, check the operation once more. If the operation is still incorrect, replace the key interlock cable.
