Auto-Cruise Control Check

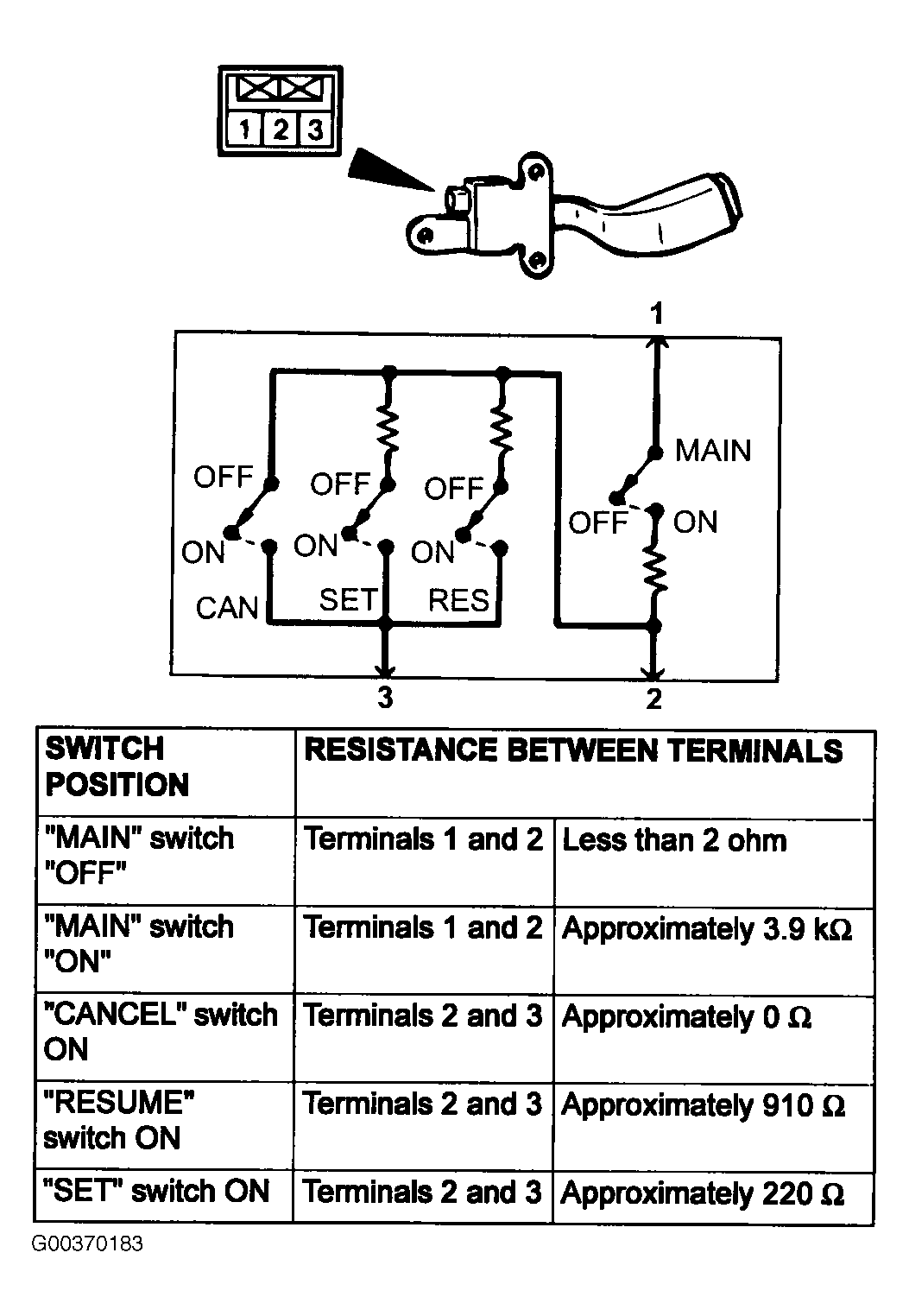

Measure the resistance between the terminals when each of the SET, RESUME, CANCEL and MAIN switches is pressed. If the values measured at the time correspond, the resistance values are correct. See Fig 1 .
Measure the resistance between the terminals when each of the SET, RESUME, CANCEL and MAIN switches is pressed. If the values measured at the time correspond, the resistance values are correct. See Fig 1 .
