Check Auto-Cruise Control-Ecu Terminals

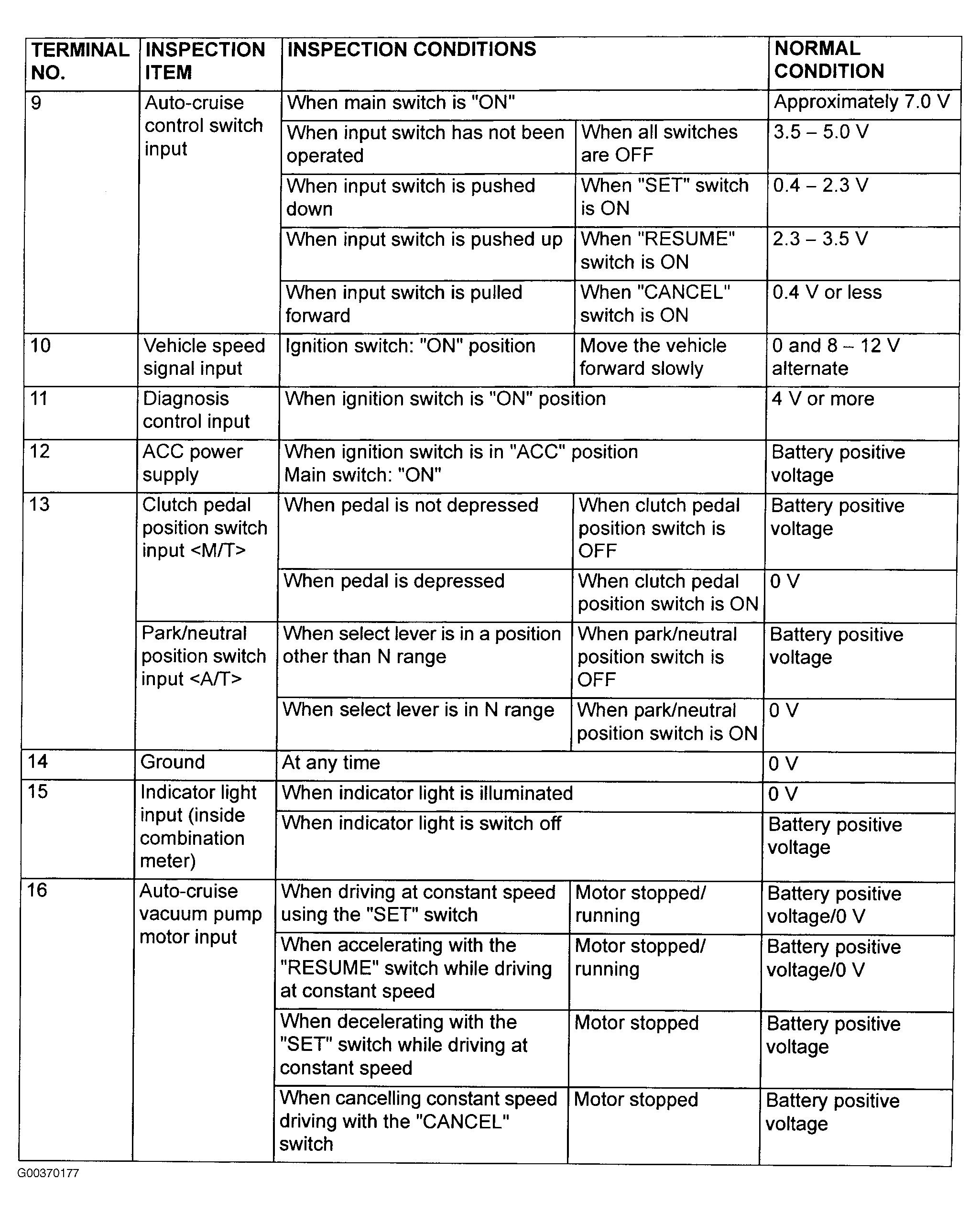

Fig 1: Checking Auto-Cruise Control-ECU Terminals (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

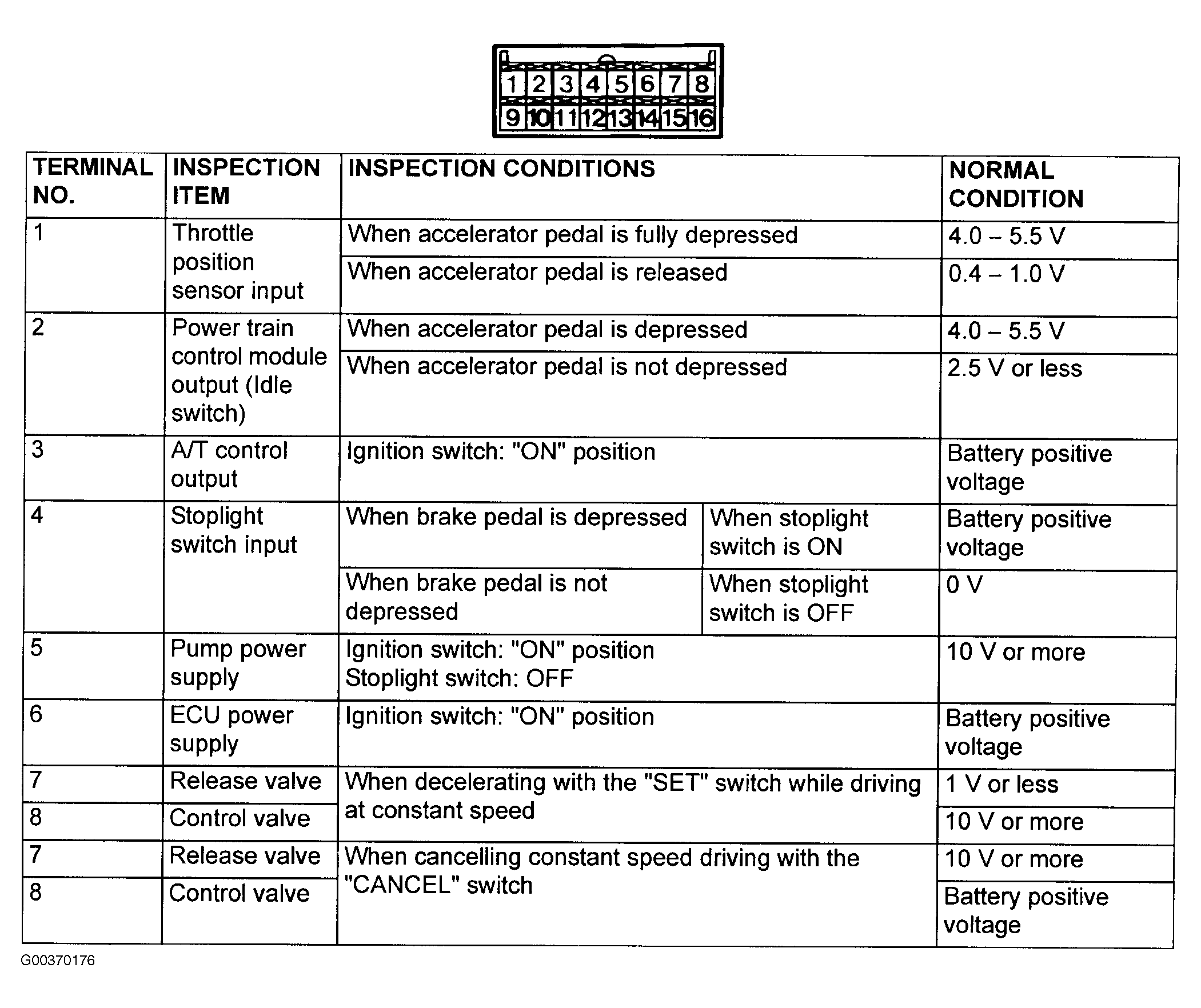

Fig 2: Checking Auto-Cruise Control-ECU Terminals (2 Of 2
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
