Component Locations
To locate ABS related components, see
Fig 1
-
Fig 3
.

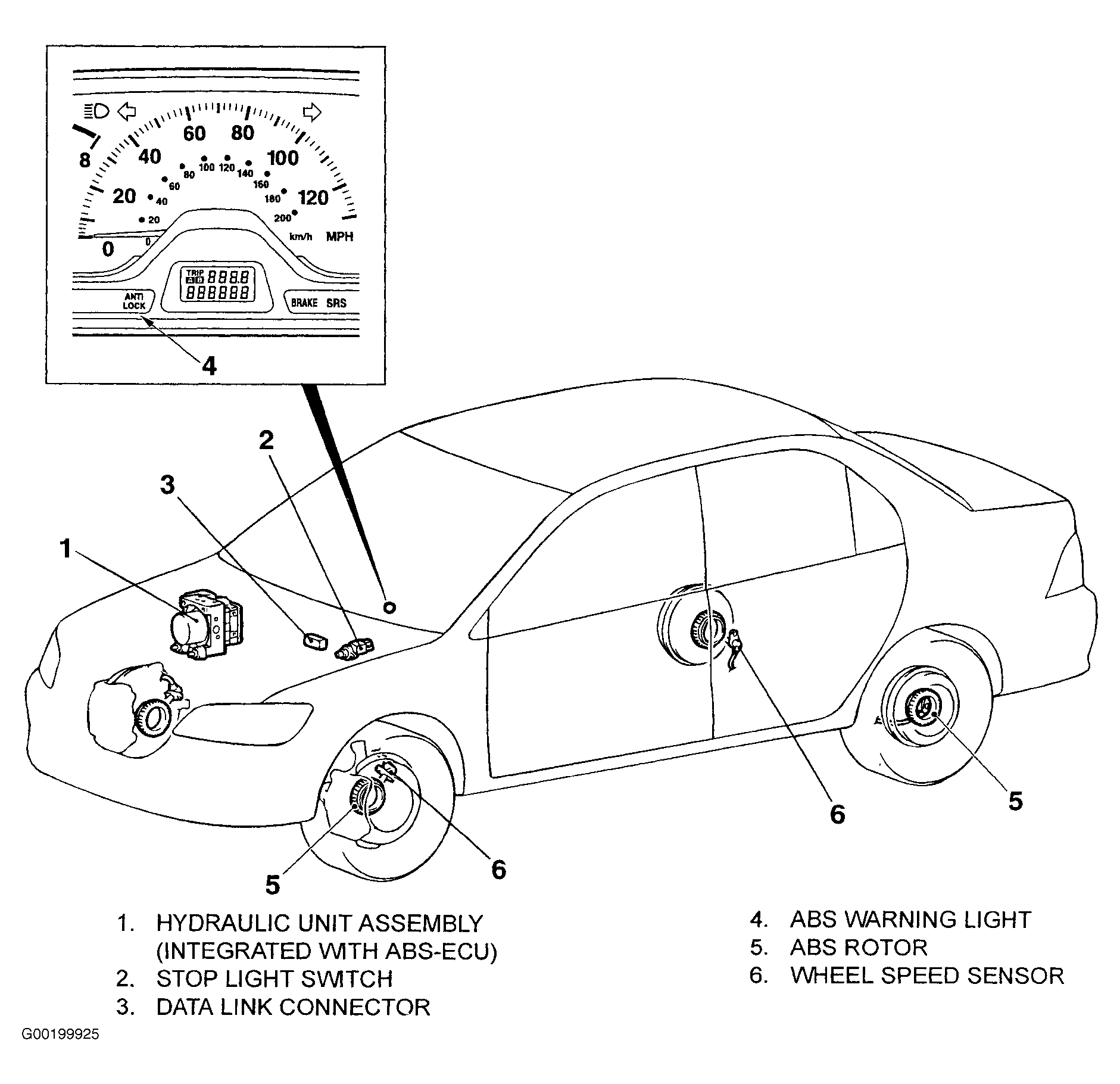

Fig 1: Locating ABS Related Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Locating Various ABS Related Harness Connectors (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Locating Various ABS Related Harness Connectors (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
