DTC P0551: Power Steering Pressure Sensor Circuit Range/Performance: Notes

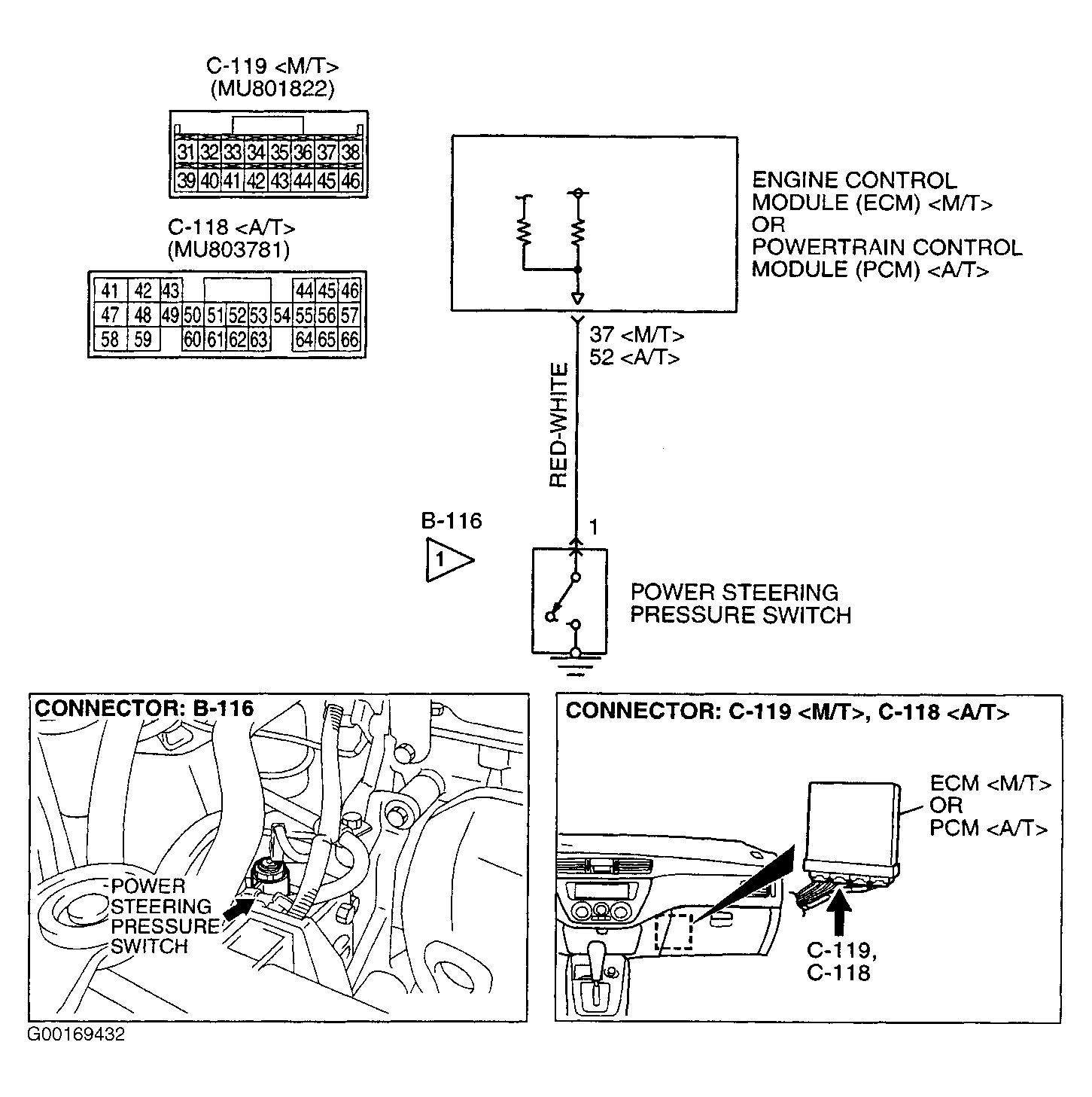

Fig 1: Identifying PSPS Circuit, Component & Connector Location
G00169432Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
