Differential Carrier Assembly: Assembly: Notes

WARNING: This page is about a different car, the 2002 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.

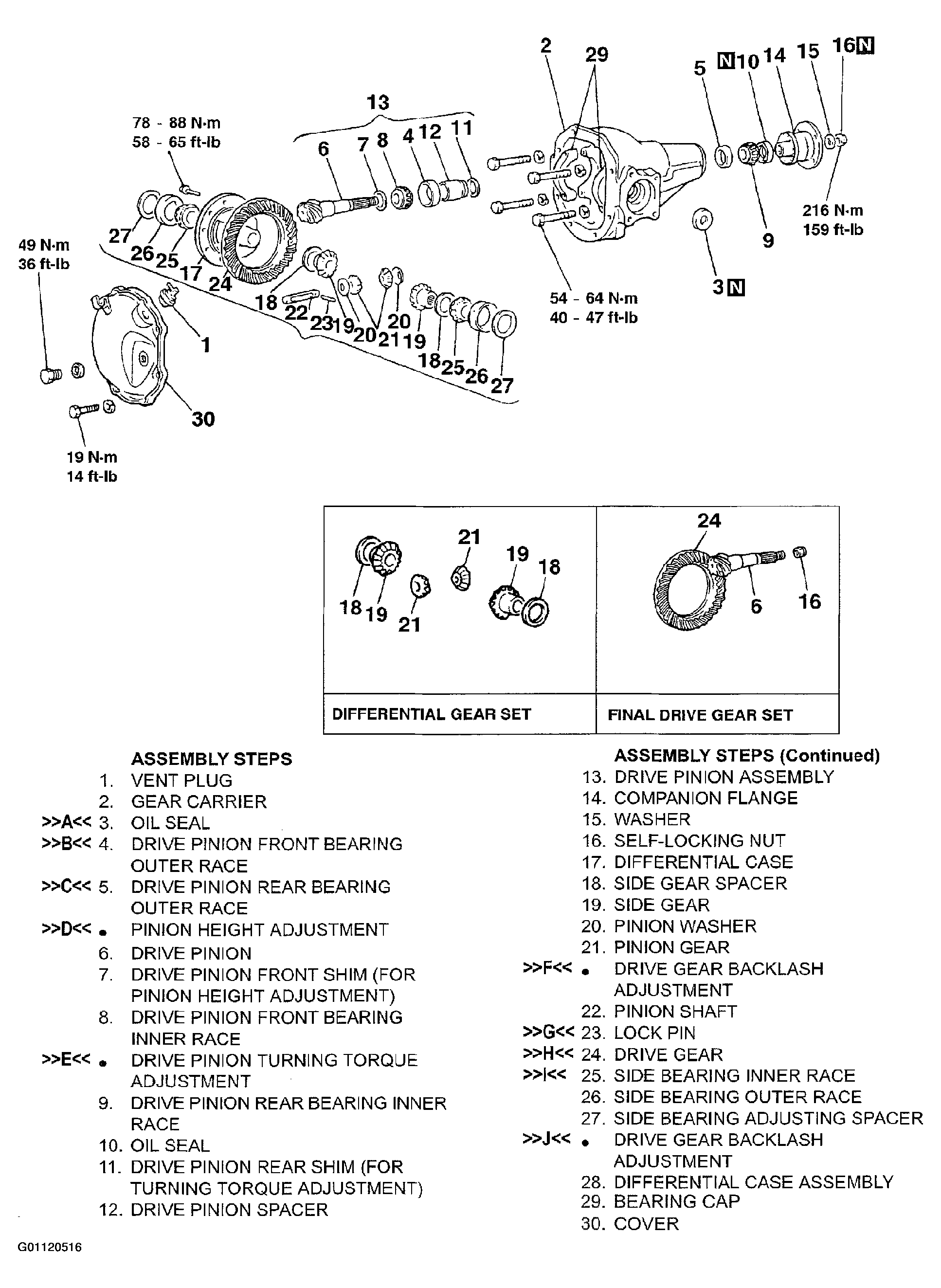

Fig 1: Exploded View Of Differential Carrier Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990031 or MB990699: Drive Pinion Oil Seal Installer
MB990326: Preload Socket
MB990727: End Yoke Holder
MB990802: Bearing Installer
MB990819: Drive Pinion Gauge Assembly
MB990934: Installation Adapter
MB990936: Installation Adapter
MB990938: Bar
MB990939: Brass Bar
MB991170: Cylinder Gauge
MB990685: Torque Wrench
