Differential Carrier Assembly: Disassembly: Notes

WARNING: This page is about a different car, the 2002 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.

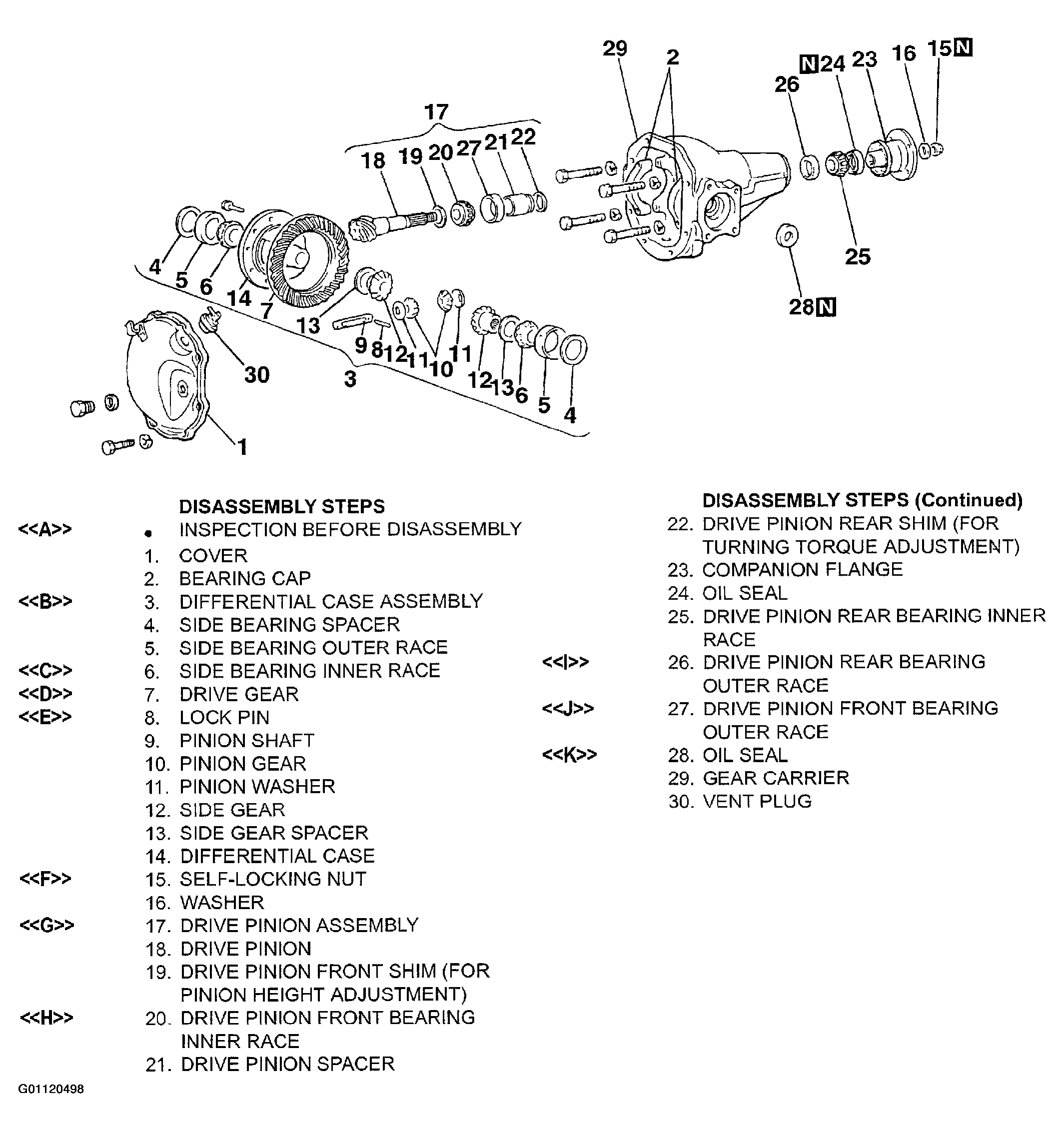

Fig 1: Exploded View Of Differential Carrier Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990339: Bearing Puller
MB990590: Rear Axle Shaft Oil Seal Remover
MB990648: Bearing Remover
MB990767: End Yoke Holder
MB990810: Side Bearing Puller
MB990811: Differential Side Bearing Cap
MB990939: Bearing and Oil Seal Installer Set
