Service Specifications
WARNING:
This page is about a different car, the 2002 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.

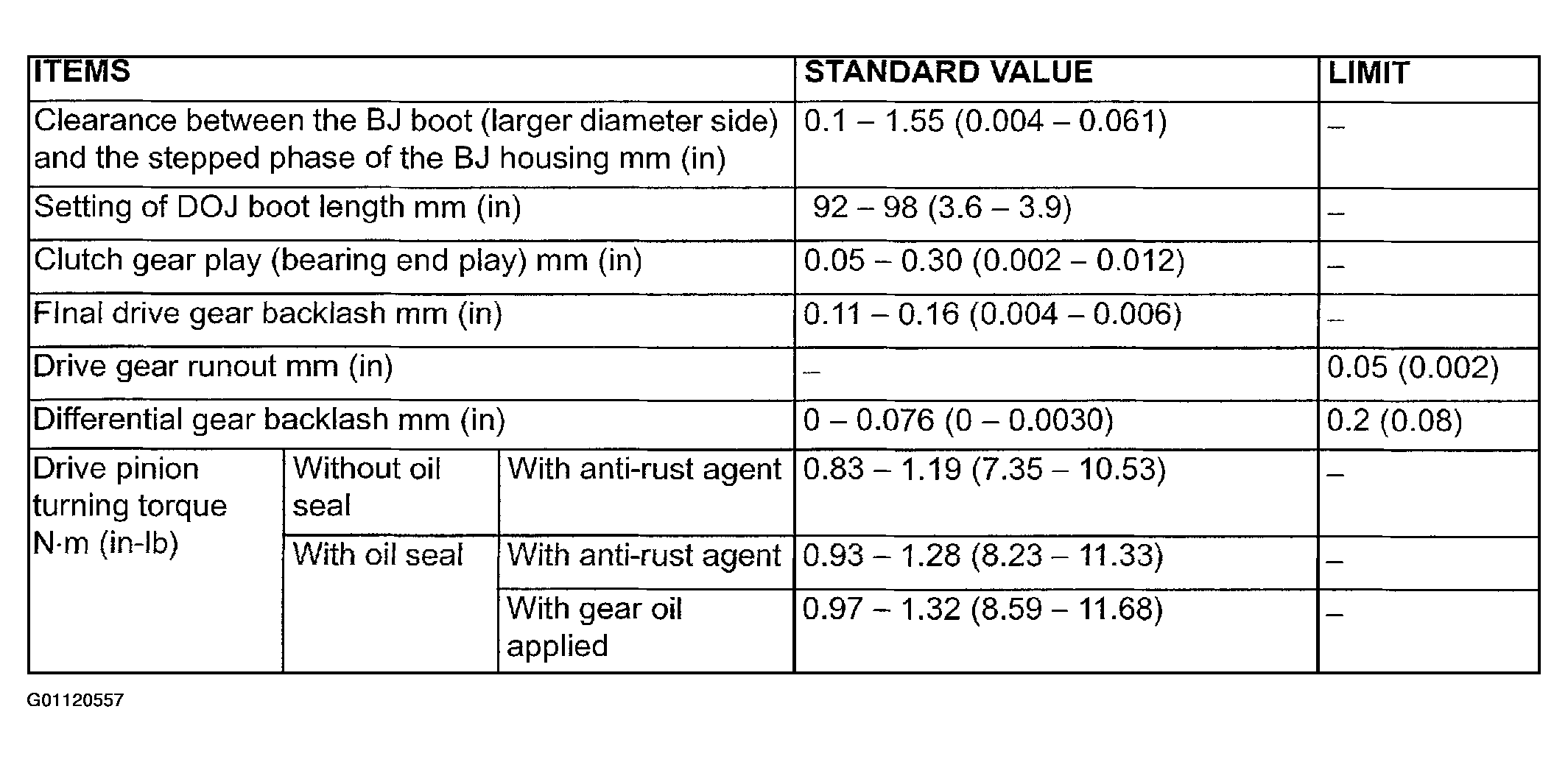

Fig 1: Service Specifications (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

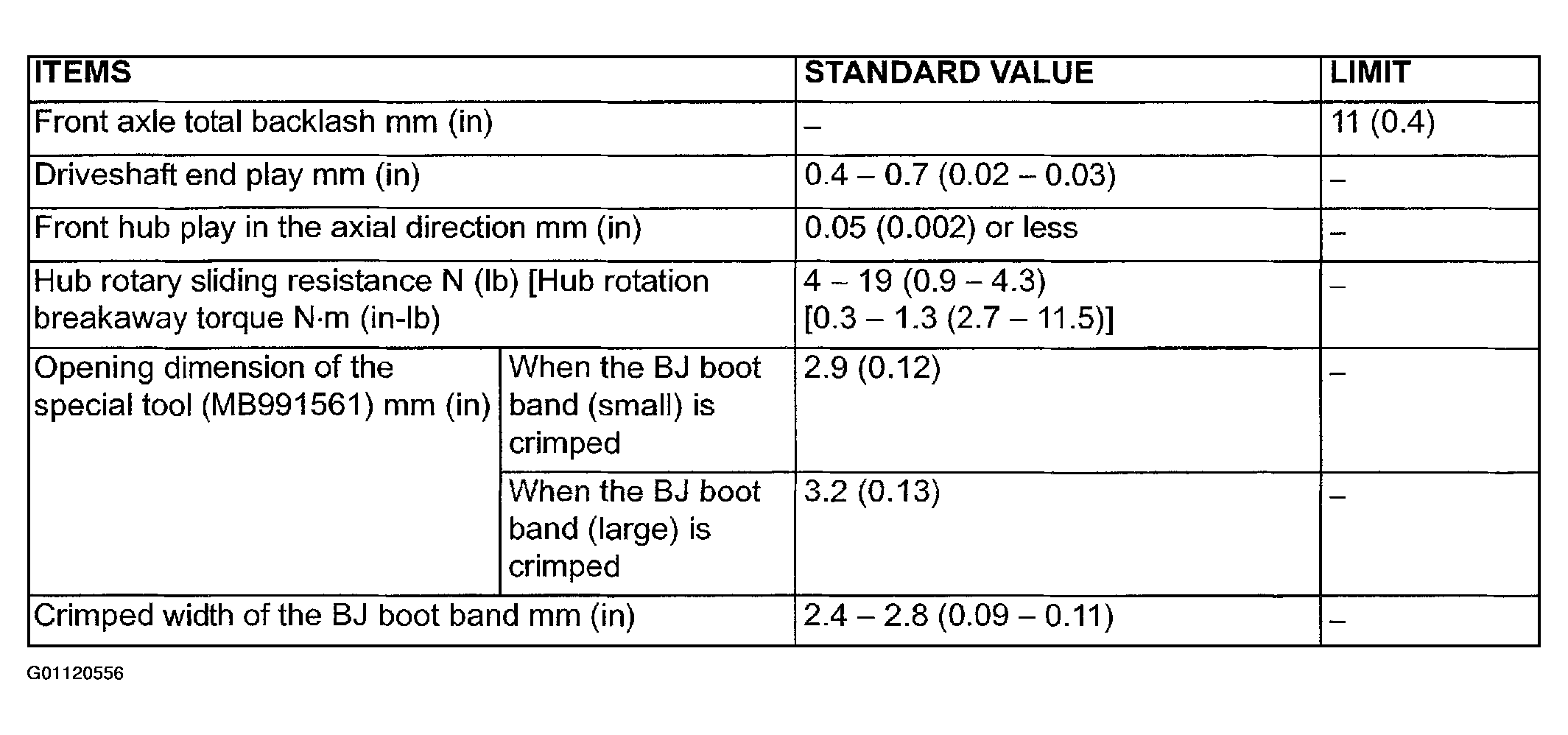

Fig 2: Service Specifications (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
