Disassembly And Reassembly: Notes

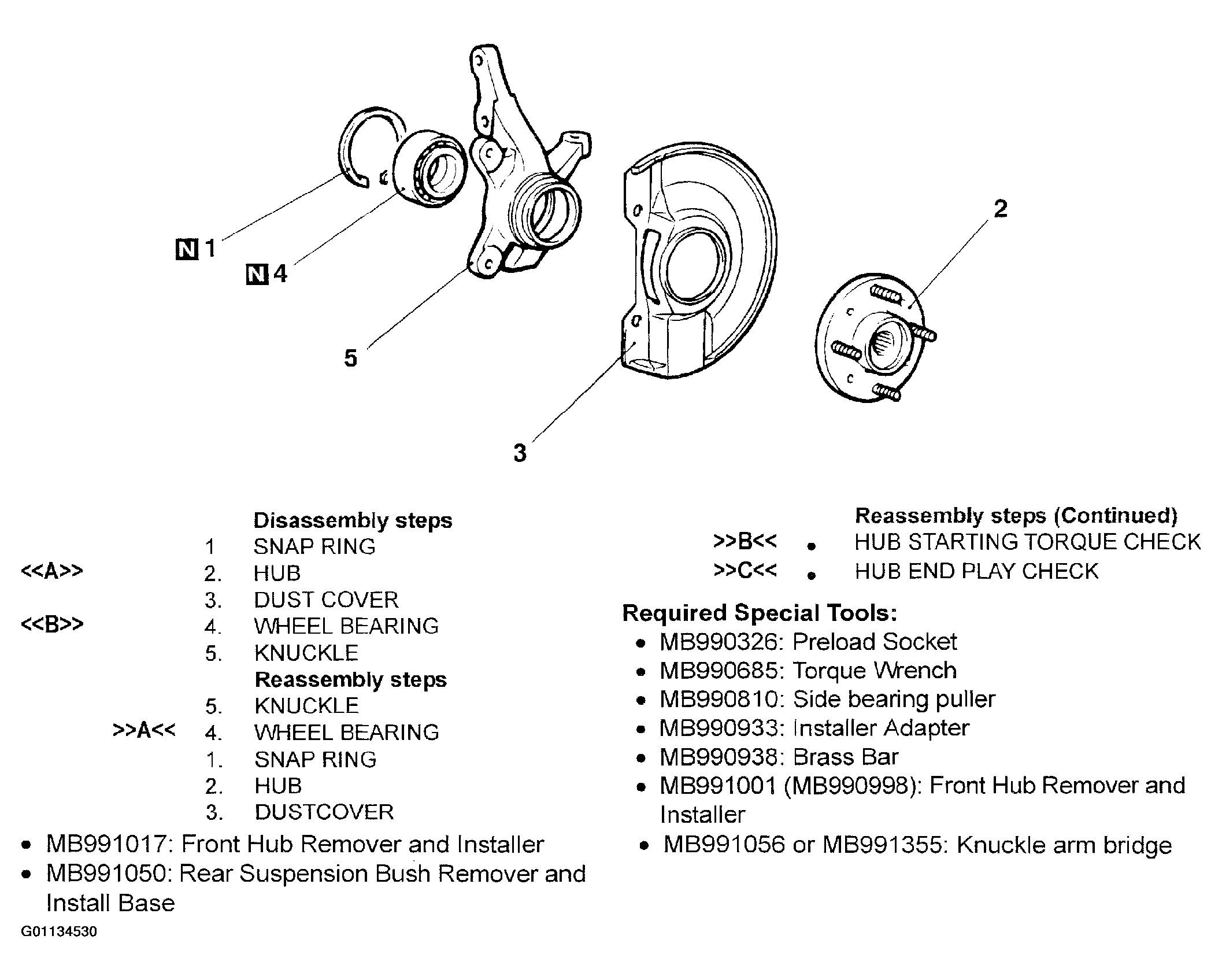

For front axle hub disassembly procedures, follow numbered steps in illustration. See Fig 1. For front axle hub assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling front axle hub assembly. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the disassembly procedure. See DISASSEMBLY SERVICE POINTS . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See REASSEMBLY SERVICE POINTS .
Required Special Tools:
- MB990326: Preload Socket
- MB990685: Torque Wrench
- MB990810: Side bearing puller
- MB990933: Installer Adapter
- MB990938: Brass Bar
- MB991001 (MB990998): Front Hub Remover and Installer
- MB991017: Front Hub Remover and Installer
- MB991050: Rear Suspension Bush Remover and Install Base
- MB991056 or MB991355: Knuckle arm bridge
