Removal And Installation: Notes

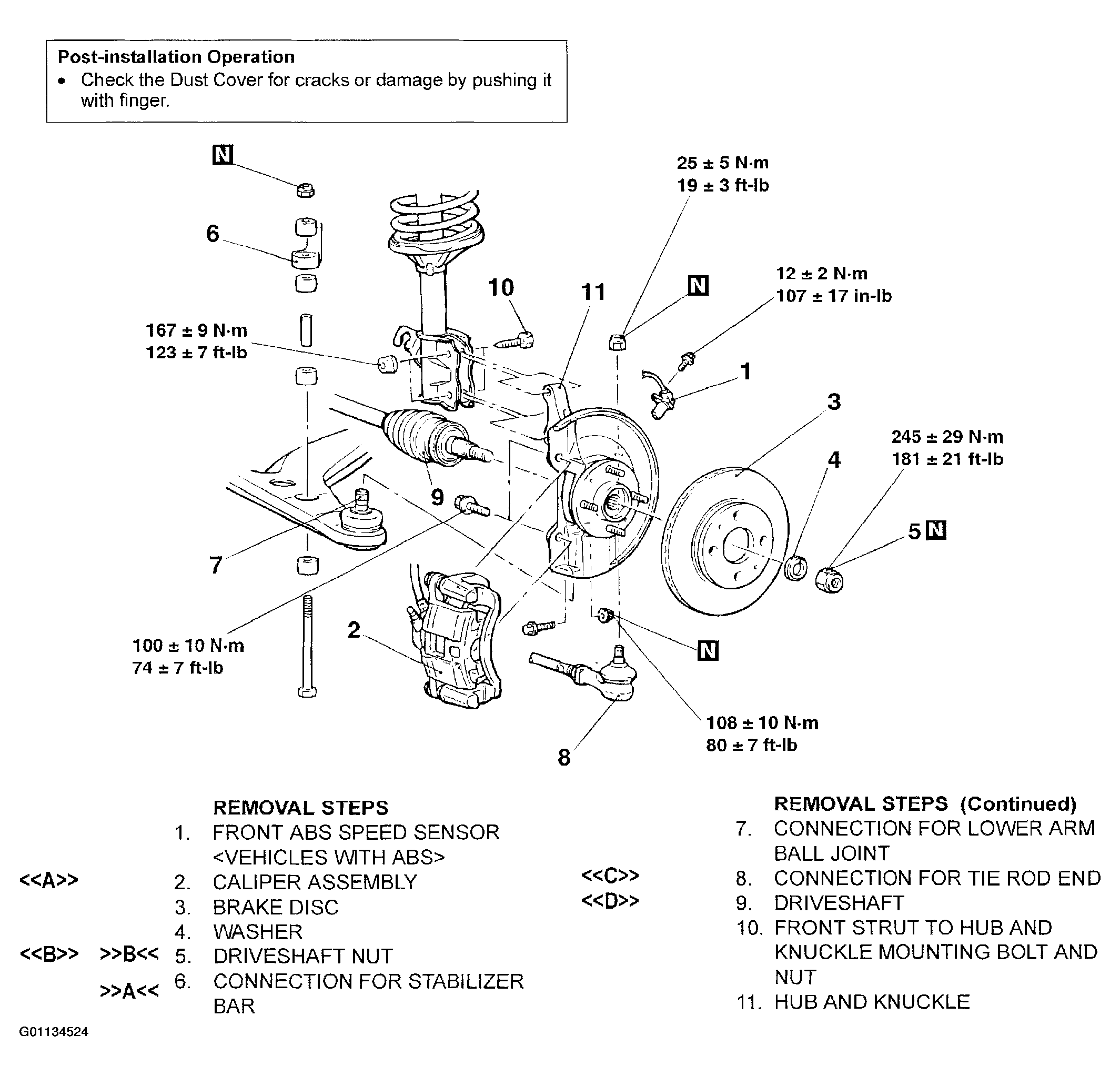

For front axle hub assembly removal procedures, follow numbered steps in illustration. See Fig 1. For front axle hub assembly installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing front axle hub assembly. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the removal procedure. See REMOVAL SERVICE POINTS . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the installation procedure. See INSTALLATION SERVICE POINT .
Required Special Tools:
- MB990241: Axle shaft puller
- MB990326: Preload Socket
- MB990767: End Yoke Holder
- MB990998: Front Hub Remover and Installer
- MB991113 or MB990635: Steering Linkage Puller
