Removal And Installation: Notes
CAUTION:
For vehicles with ABS, be careful when handling the pole piece at the tip of the speed sensor so as not to damage it by striking against other parts.

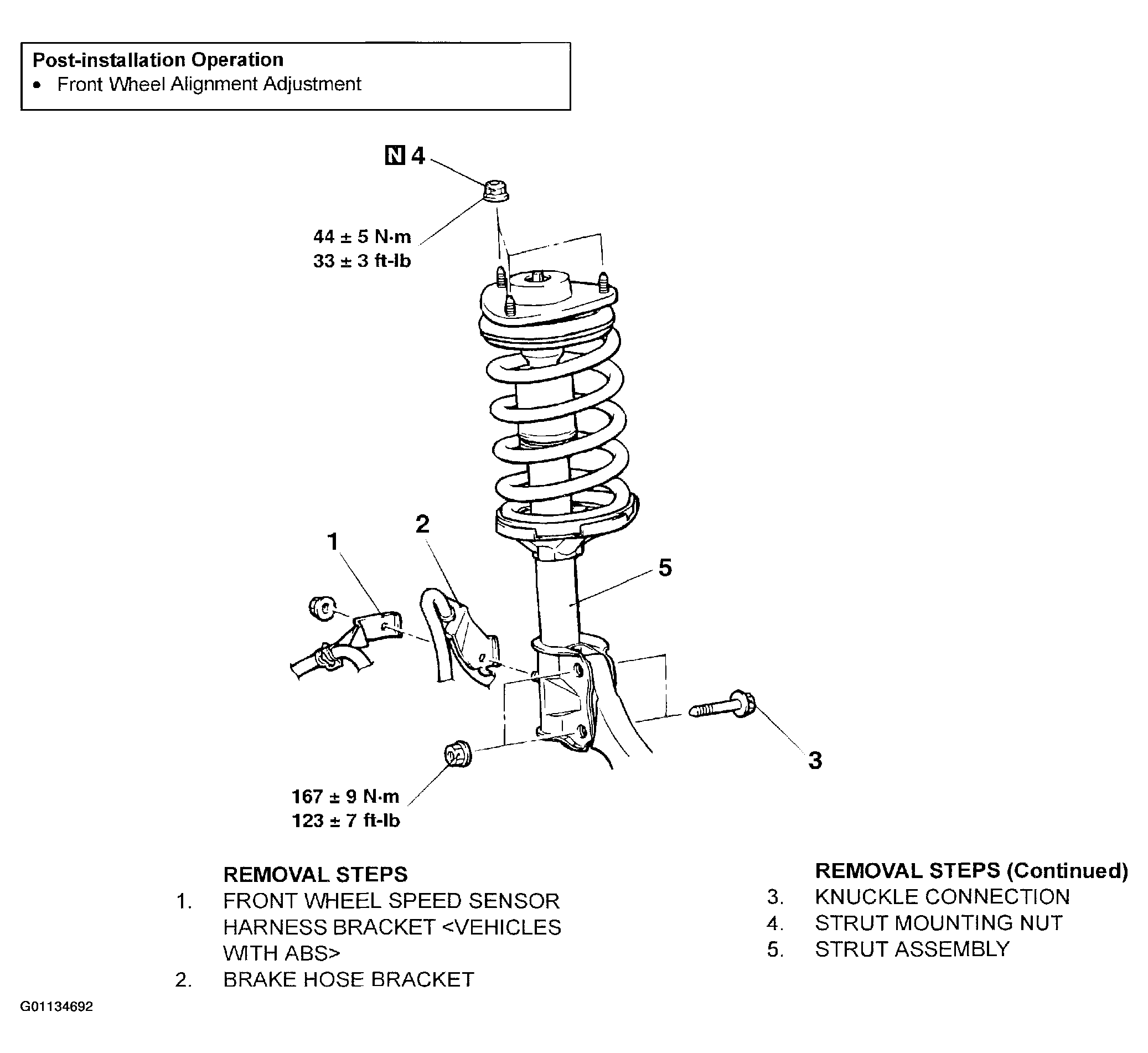

For strut assembly removal procedures, follow numbered steps in illustration. See Fig 1. For strut assembly installation procedures, follow numbers steps in illustration in reverse order.
