Specifications & Procedures: Specifications: Diamante

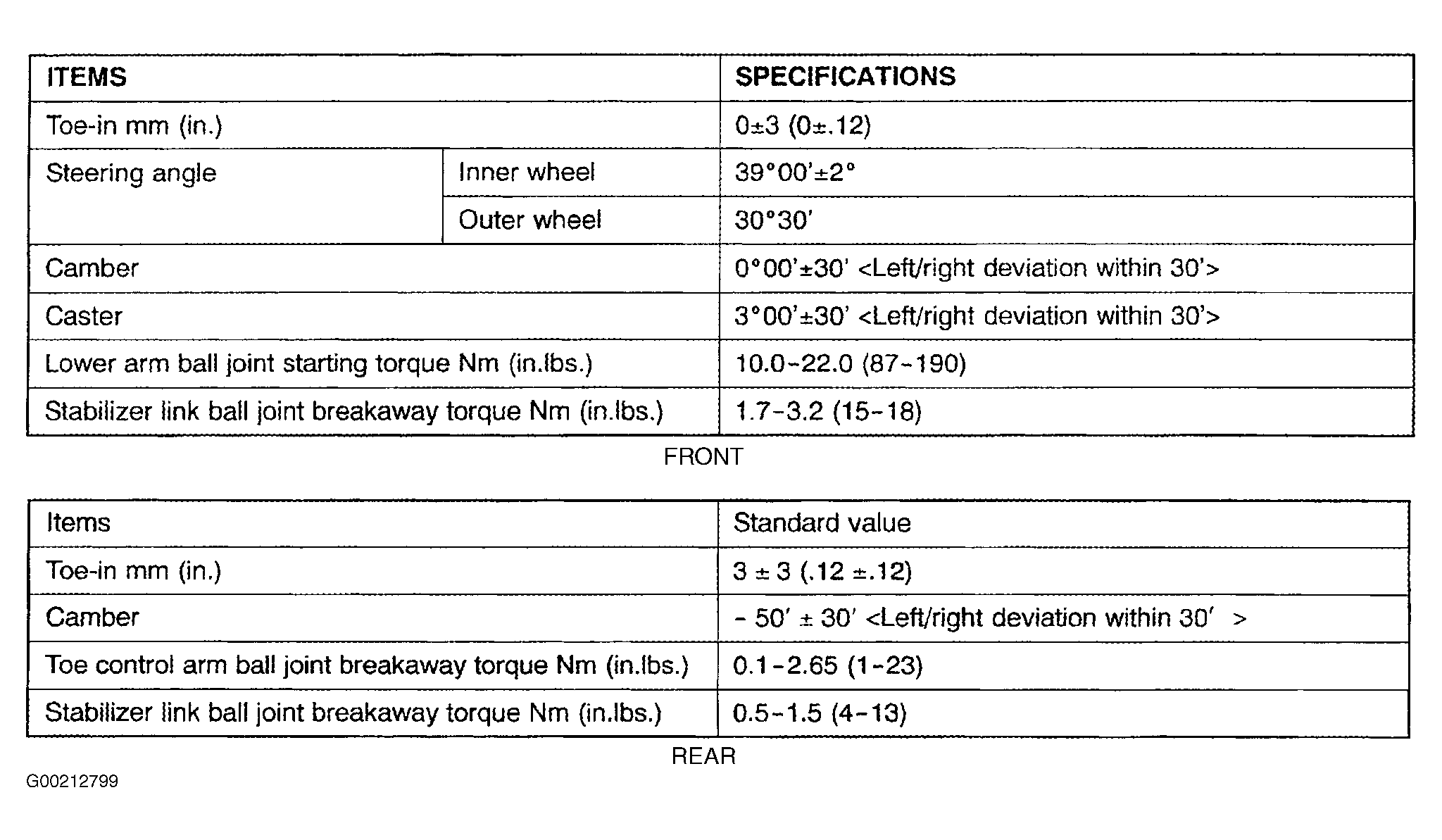

Fig 1: Wheel Alignment Specifications (Diamante)
G00212799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
