Specifications & Procedures: Specifications: Eclipse

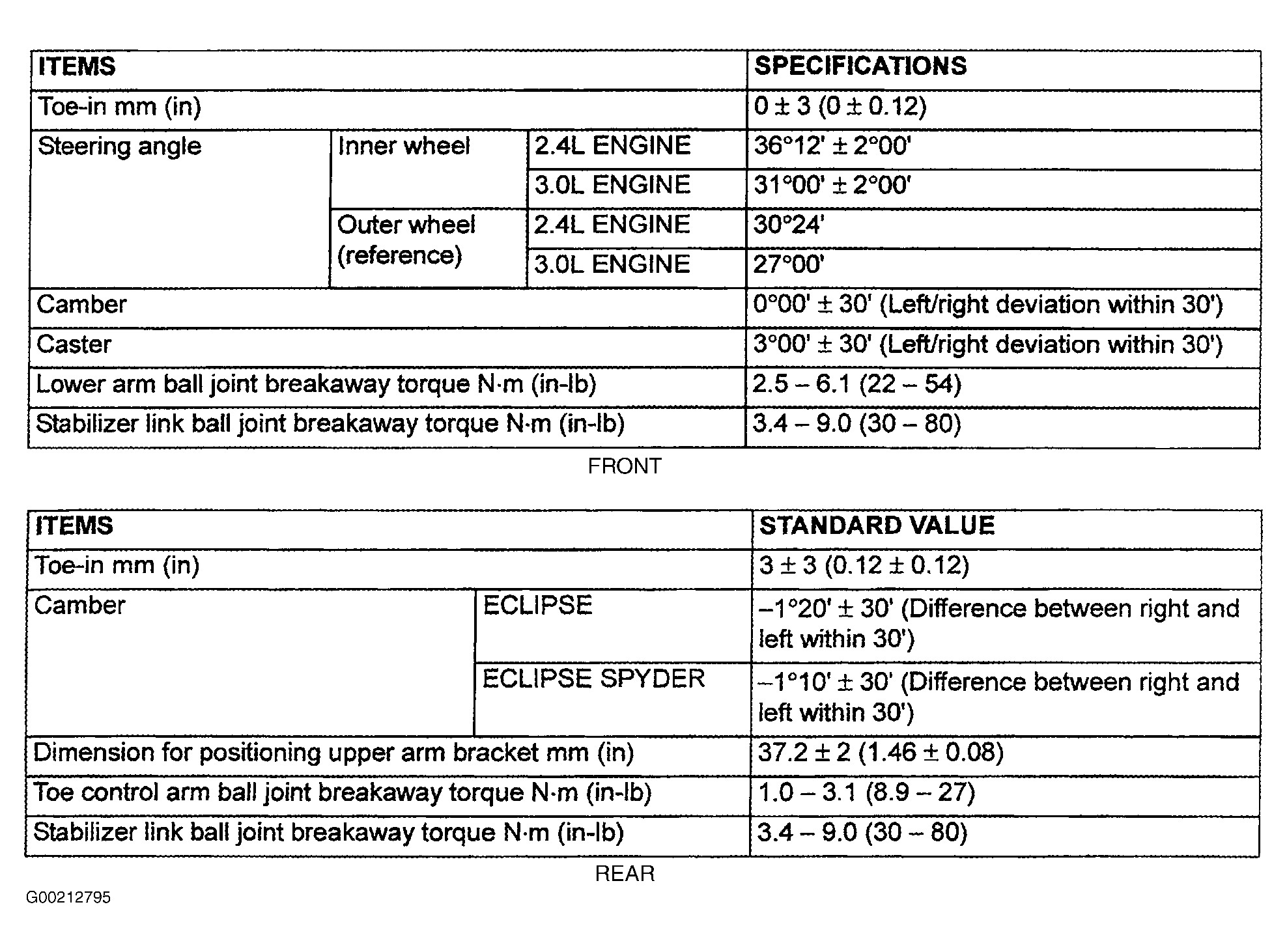

Fig 1: Wheel Alignment Specifications (Eclipse)
G00212795Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
