Specifications & Procedures: Specifications: Lancer

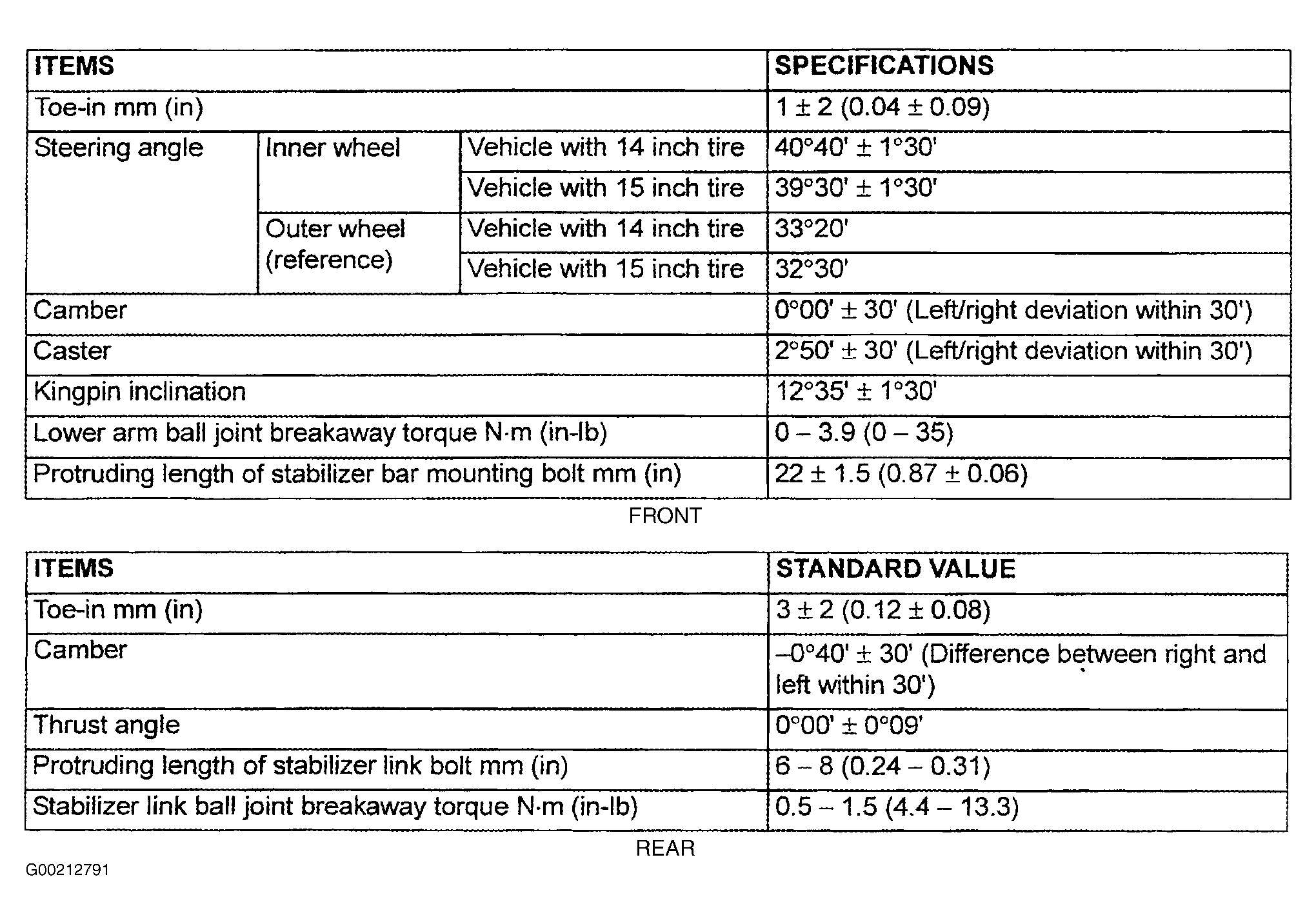

Fig 1: Wheel Alignment Specifications (Lancer)
G00212791Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
