Disassembly And Assembly: Notes

For low-revese brake disassembly procedures, follow numbered steps in illustration. See Fig 1. For low-reverse brake assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling low-reverse brake. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINT .

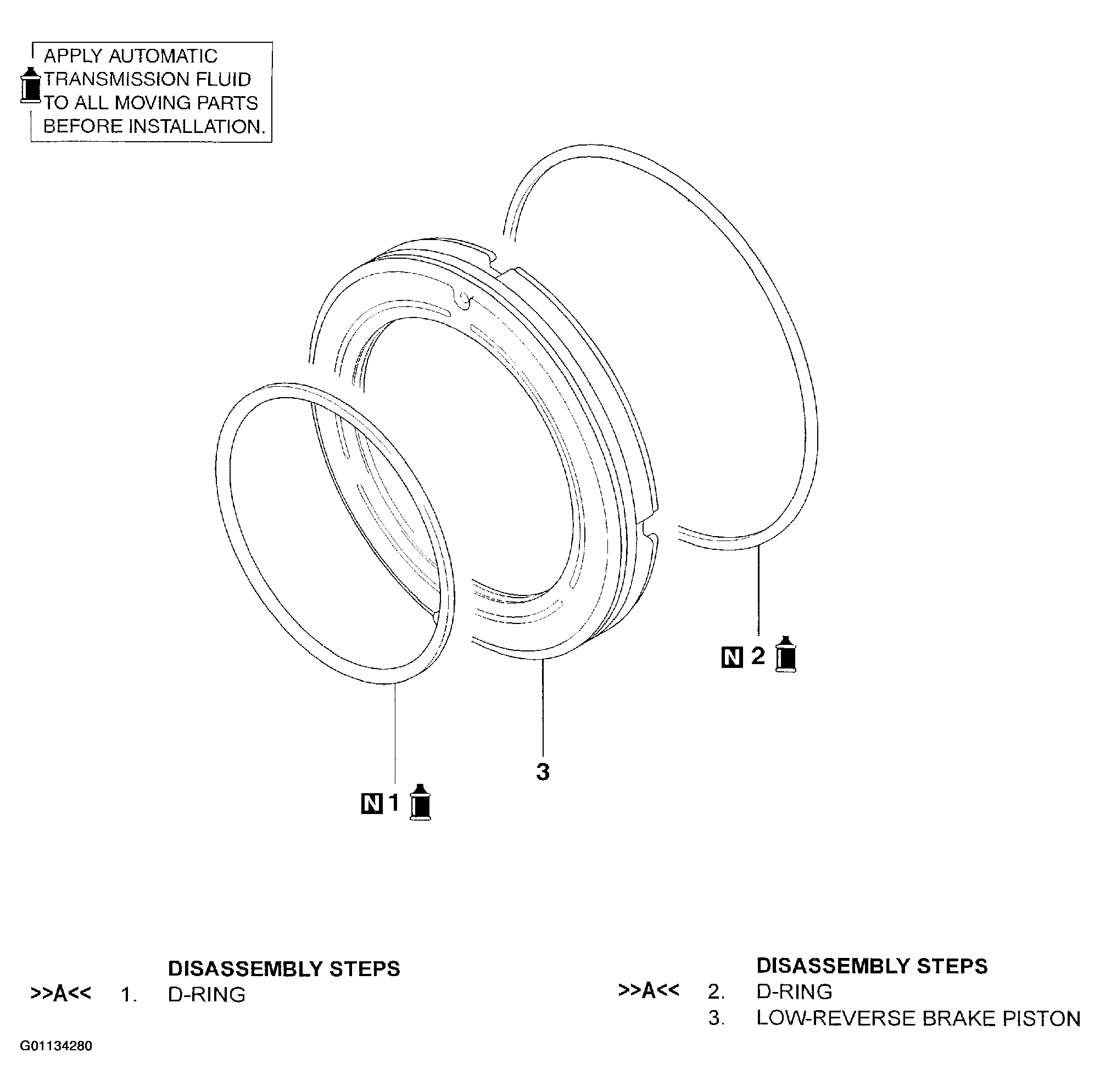

Fig 1: Exploded View Of Low-Reverse Brake

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
