Fastener Tightening Specifications

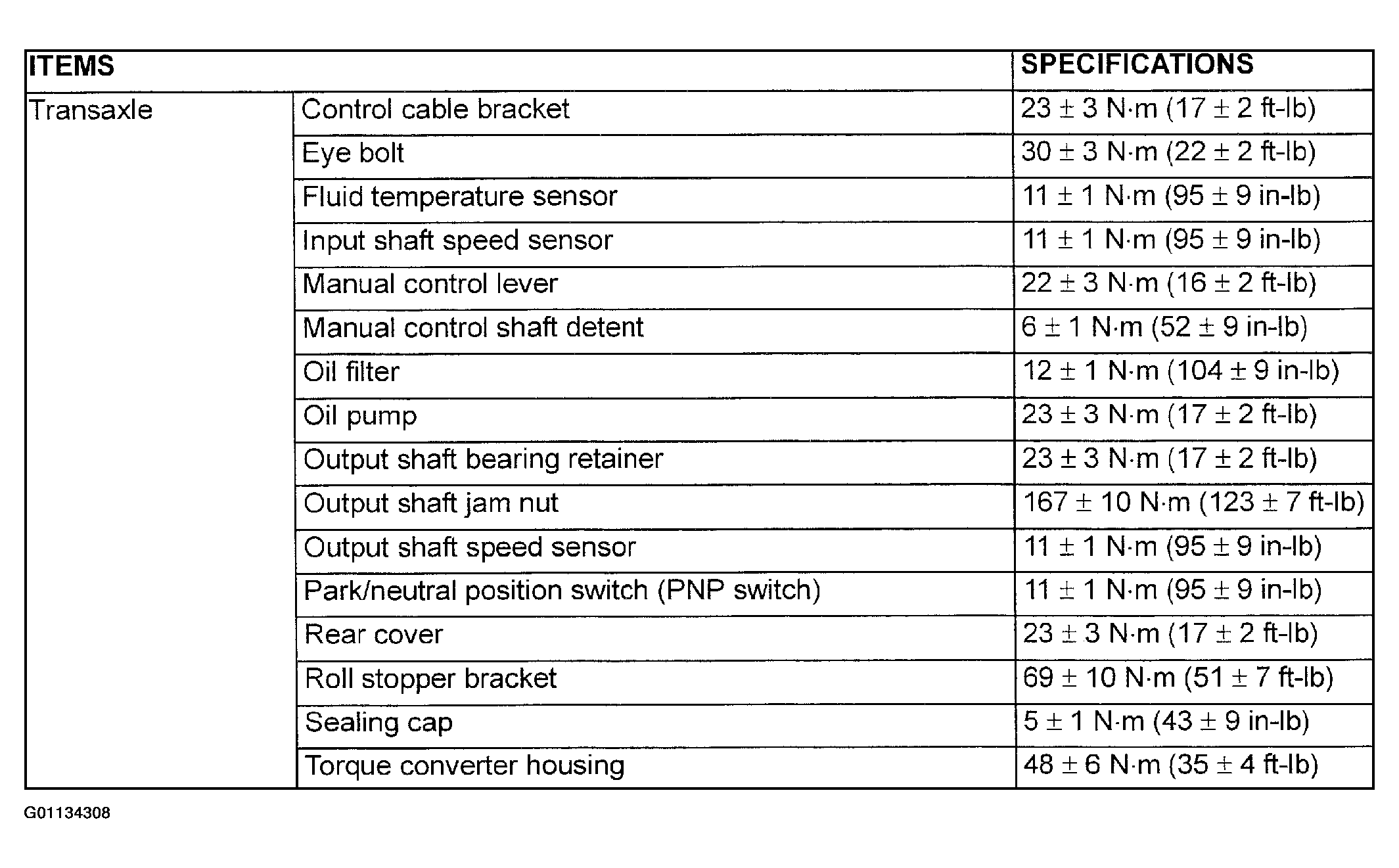

Fig 1: Fastener Torque Specifications Table (1 Of 2)
G01134308Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

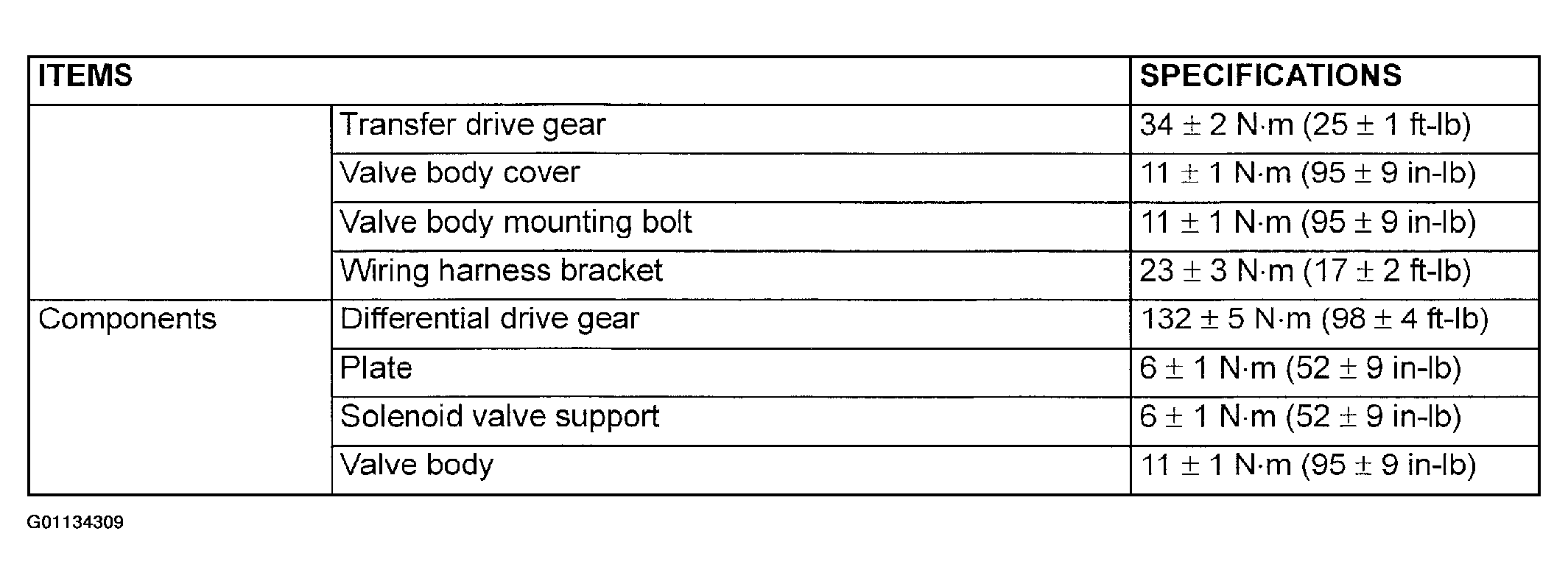

Fig 2: Fastener Torque Specifications Table (2 Of 2)
G01134309Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
