Disassembly And Reassembly: Notes

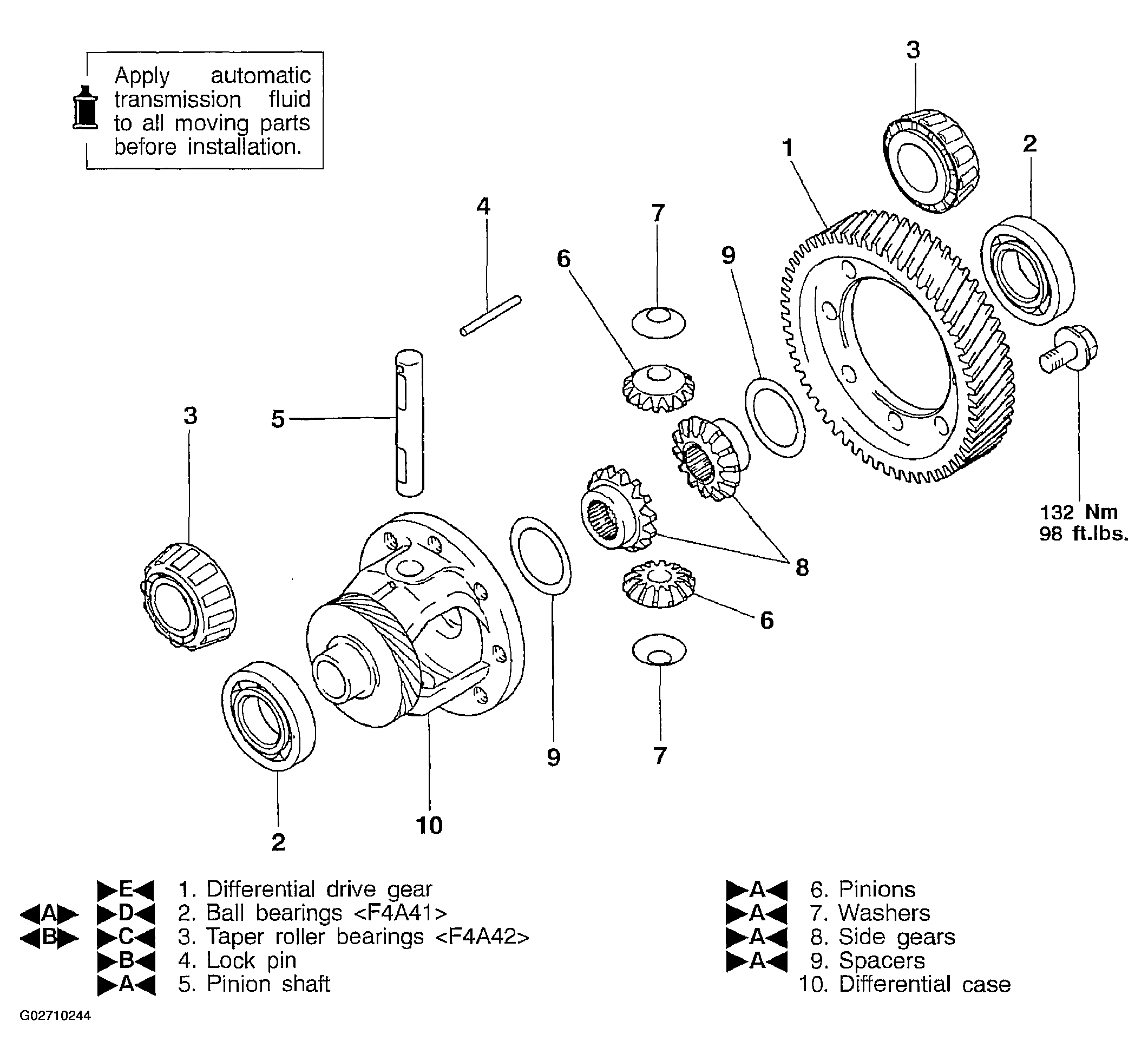

Fig 1: Exploded View Of Differential Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
