Sectional View

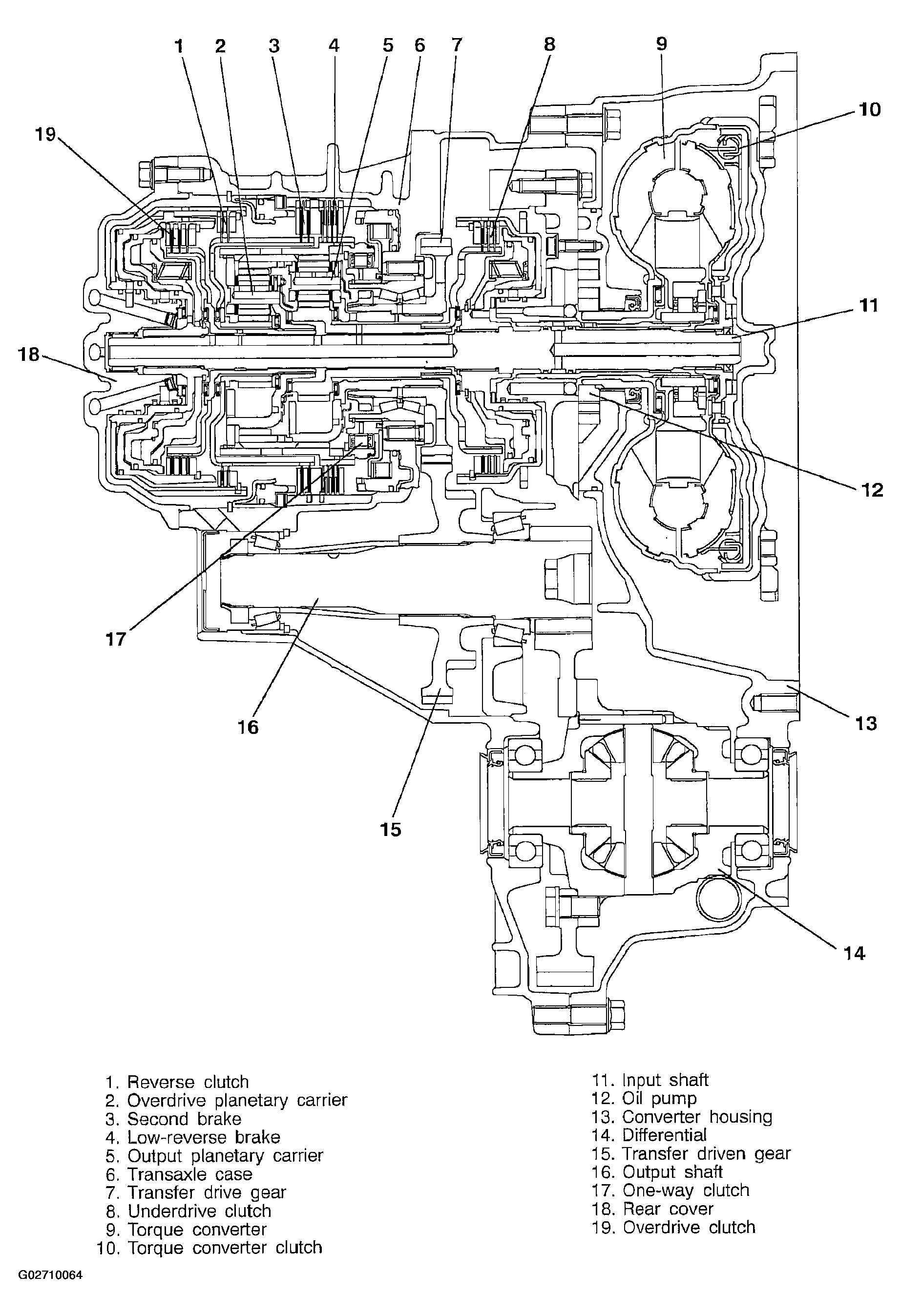

Fig 1: Sectional View < F4A41 >
G02710064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

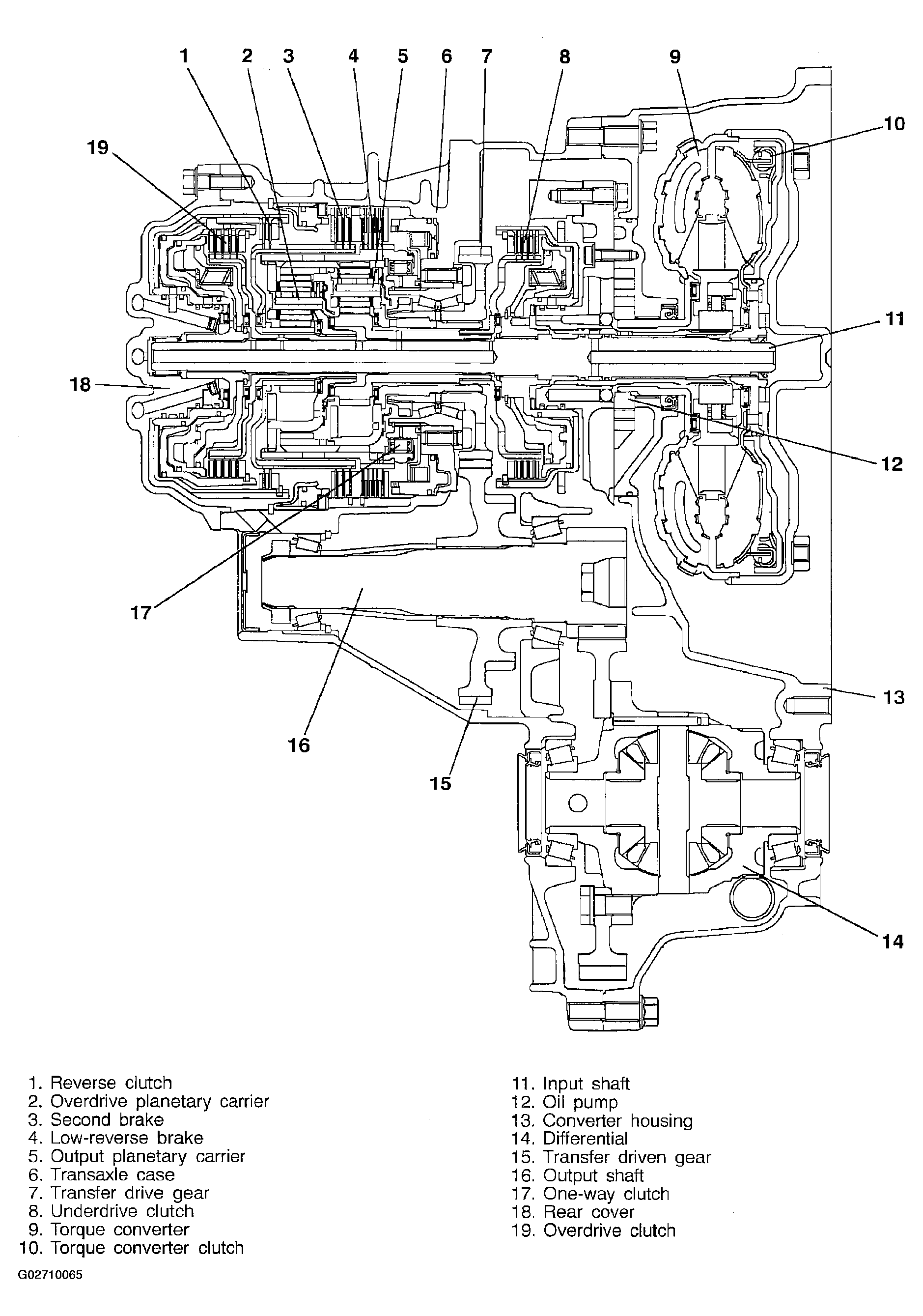

Fig 2: Sectional View < F4A42 >
G02710065Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
