Disassembly And Reassembly: Notes

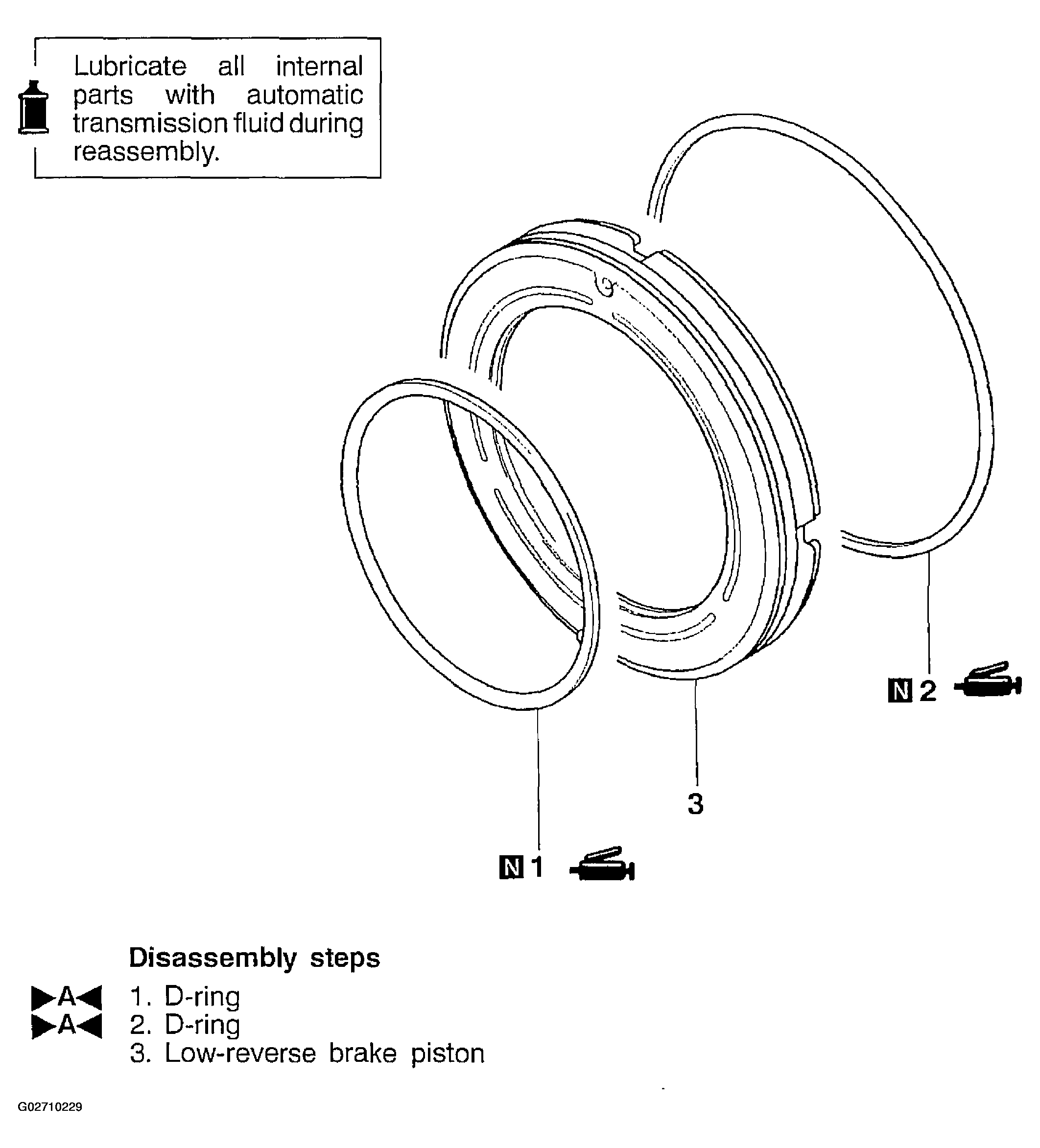

Fig 1: Exploded View Of Low-Reverse Brake Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
