Disassembly And Reassembly: Notes

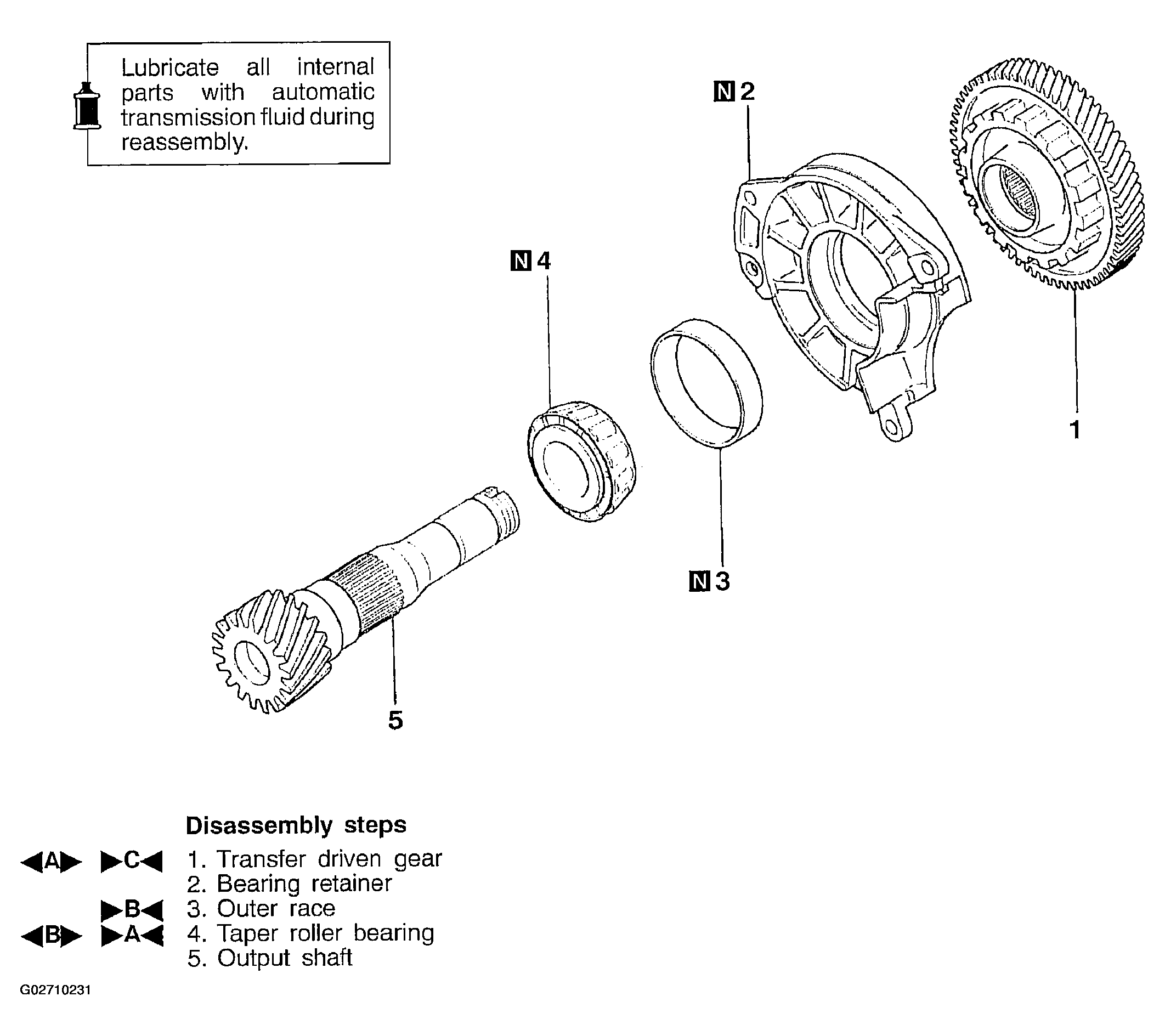

Fig 1: Exploded View Of Output Shaft Components

G02710231

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
