Function Element Table
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Function Element Table

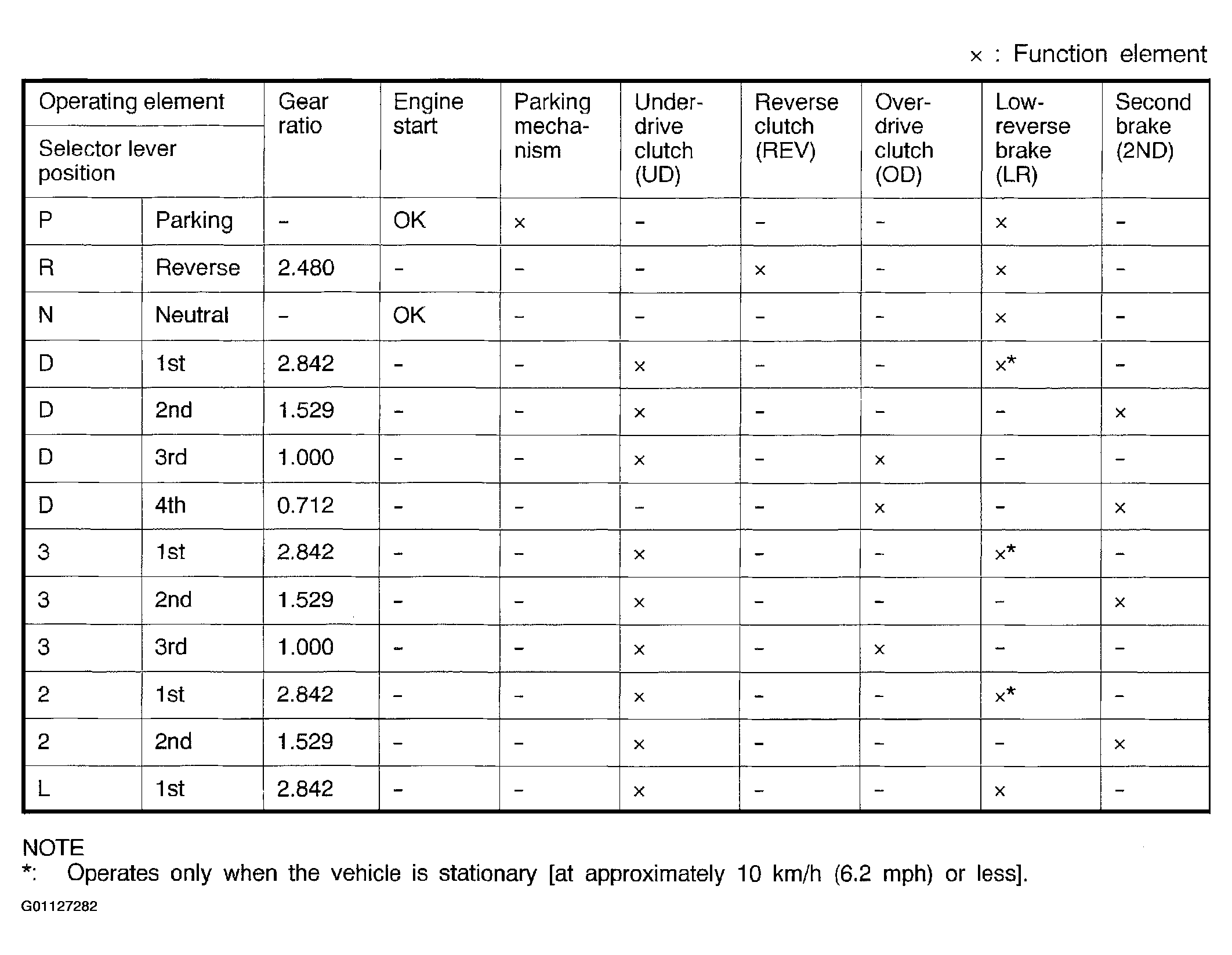

Fig 1: Function Element Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
