Disassembly And Reassembly

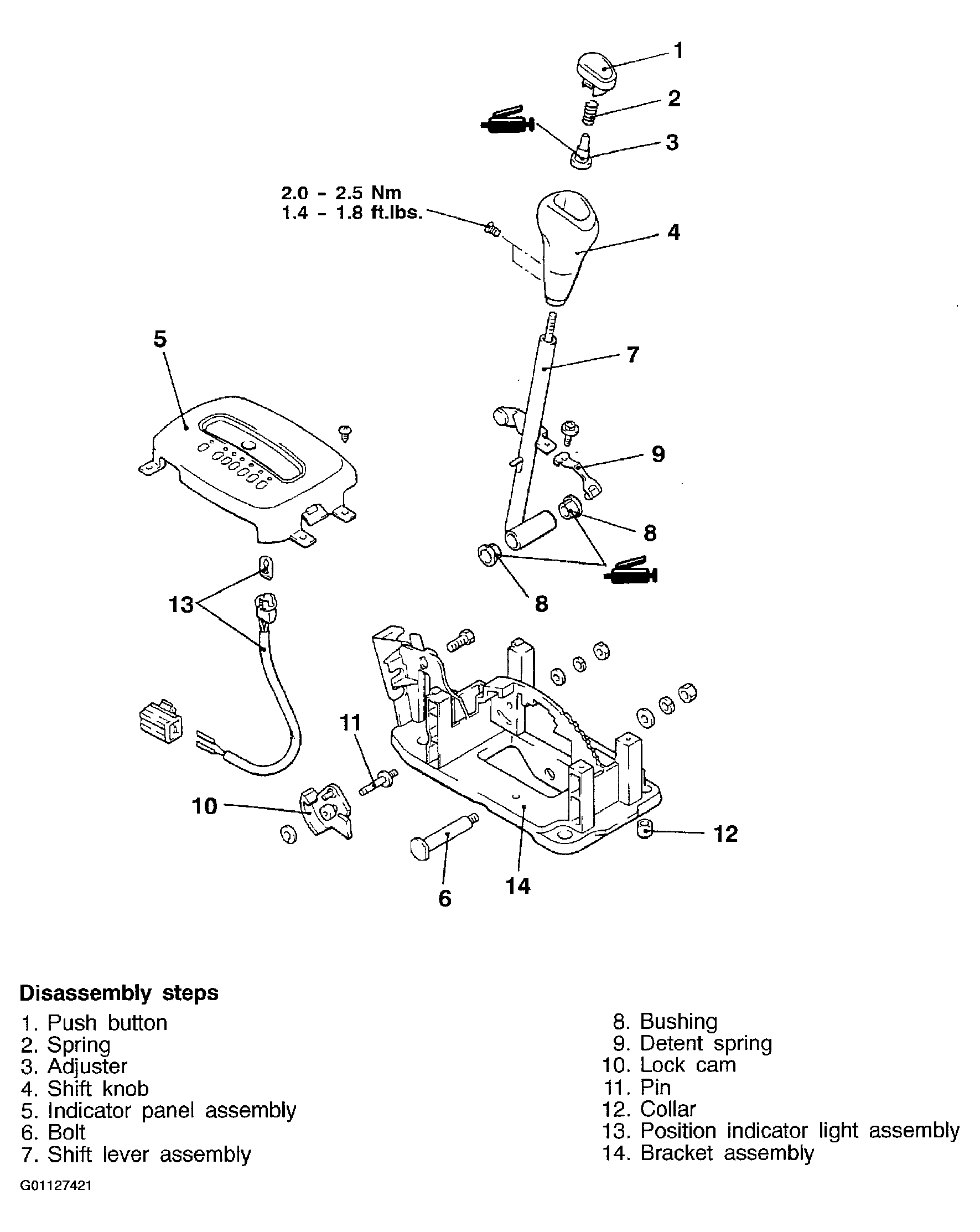

Fig 1: Exploded View Of Selector Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
