Component Locations

To locate ABS related components, see Fig 1 - Fig 3 .

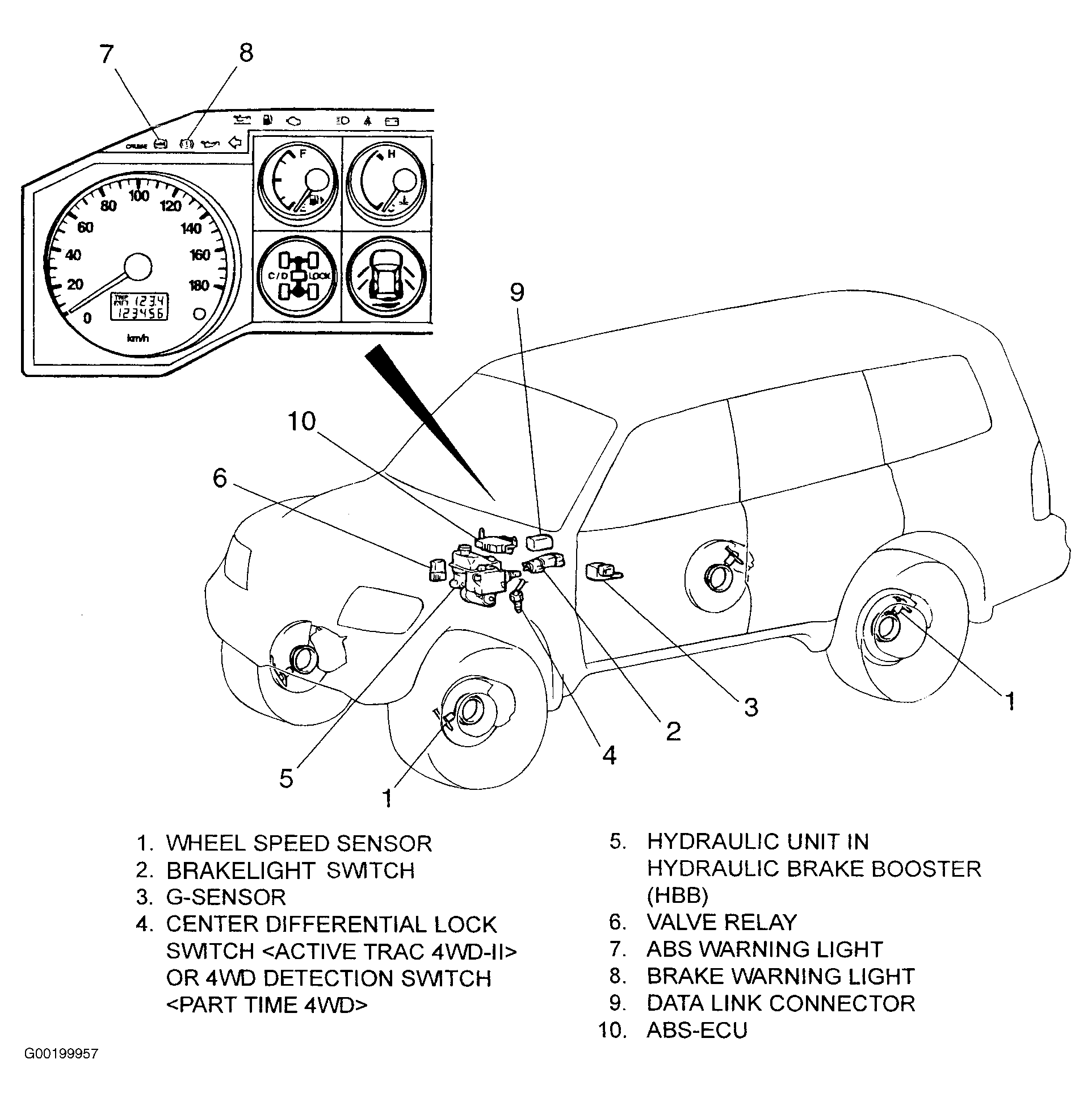

Fig 1: Locating ABS Related Components
G00199957Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Locating Various ABS Related Harness Connectors (1 Of 2)
G00199981Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Locating Various ABS Related Harness Connectors (2 Of 2)
G00199982Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
