Valve Body Spring Identification

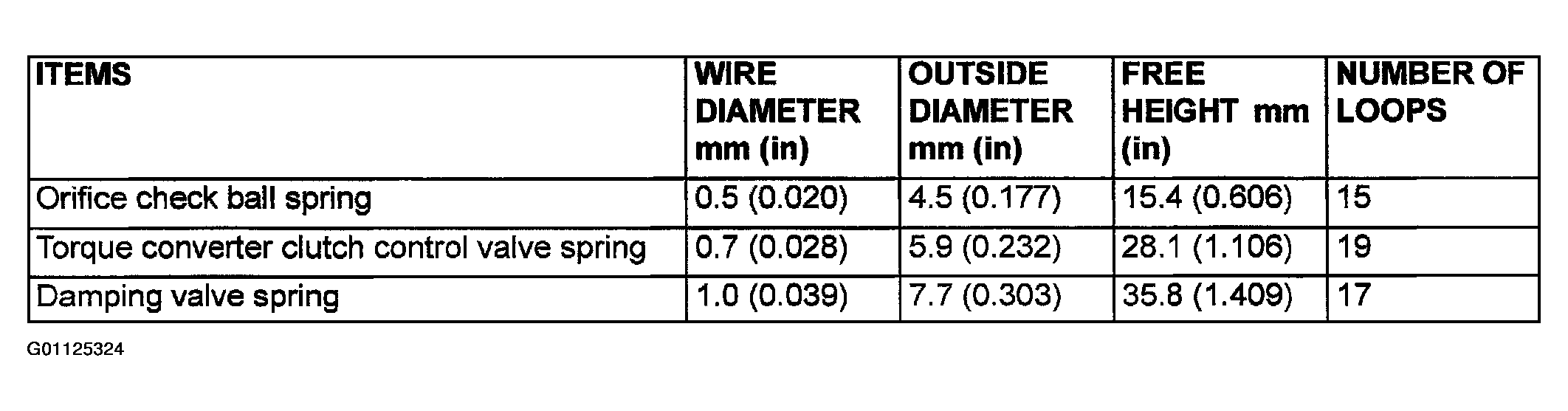

Fig 1: Identifying Valve Body Springs (1 Of 2)
G01125324Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

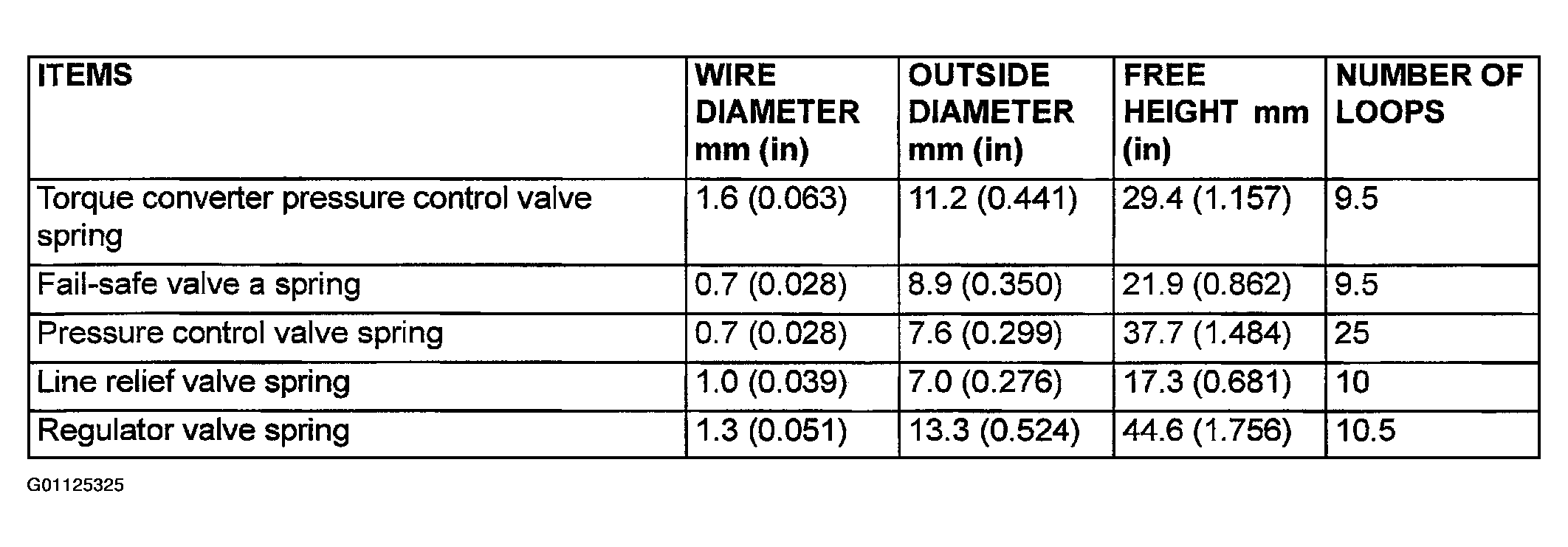

Fig 2: Identifying Valve Body Springs (2 Of 2)
G01125325Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
