Disassembly And Assembly: Notes

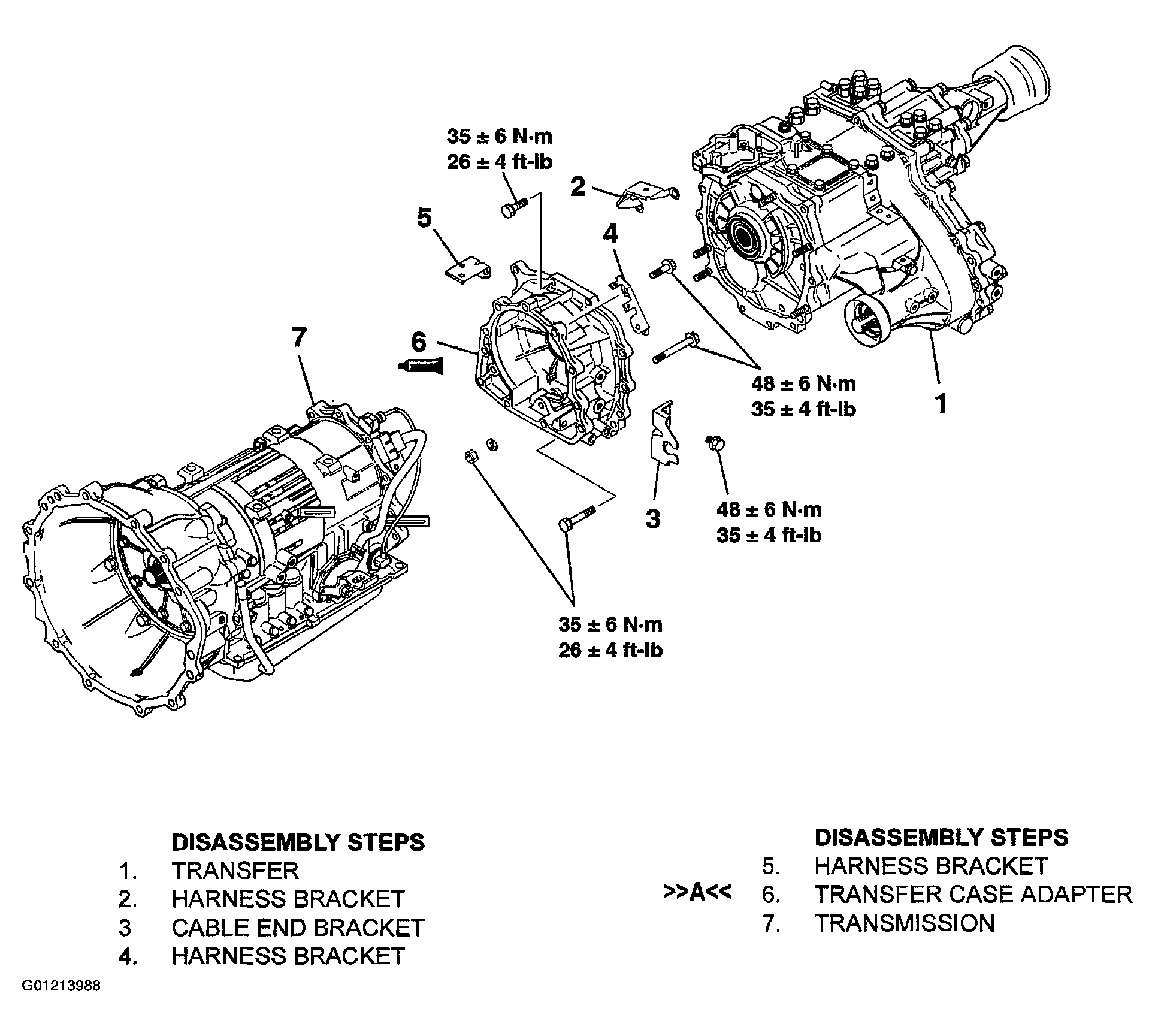

For transmission and transfer disassembly procedures, follow numbered steps in illustration. See Fig 1. For transmission and transfer assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling transmission and transfer. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINT .
