Adjustment Procedures Of SWS Function
>>
Configuration Of Functions
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Configuration Of Functions

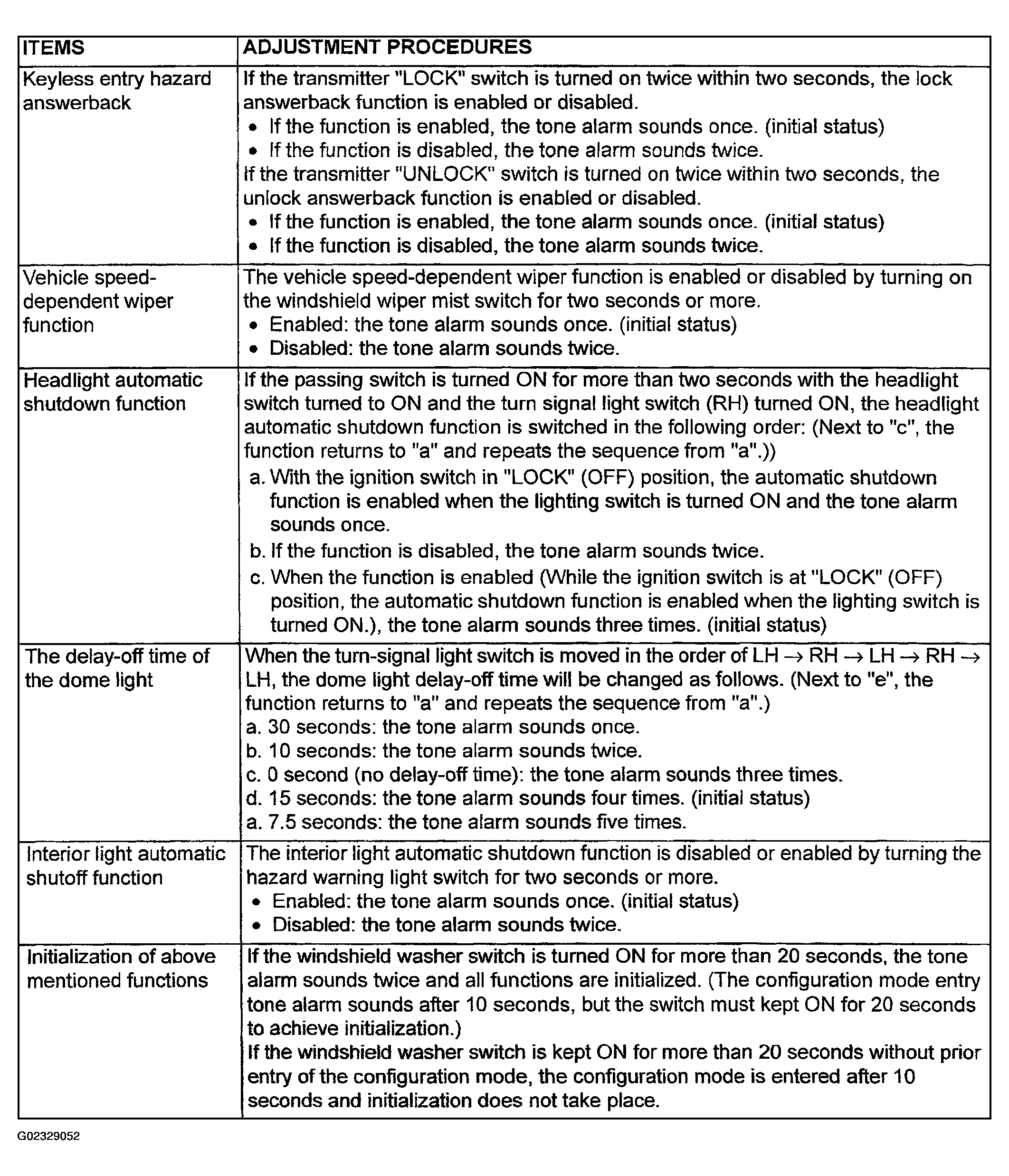

Fig 1: Identifying Functions
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
