Remote Controlled Mirror Assembly Check

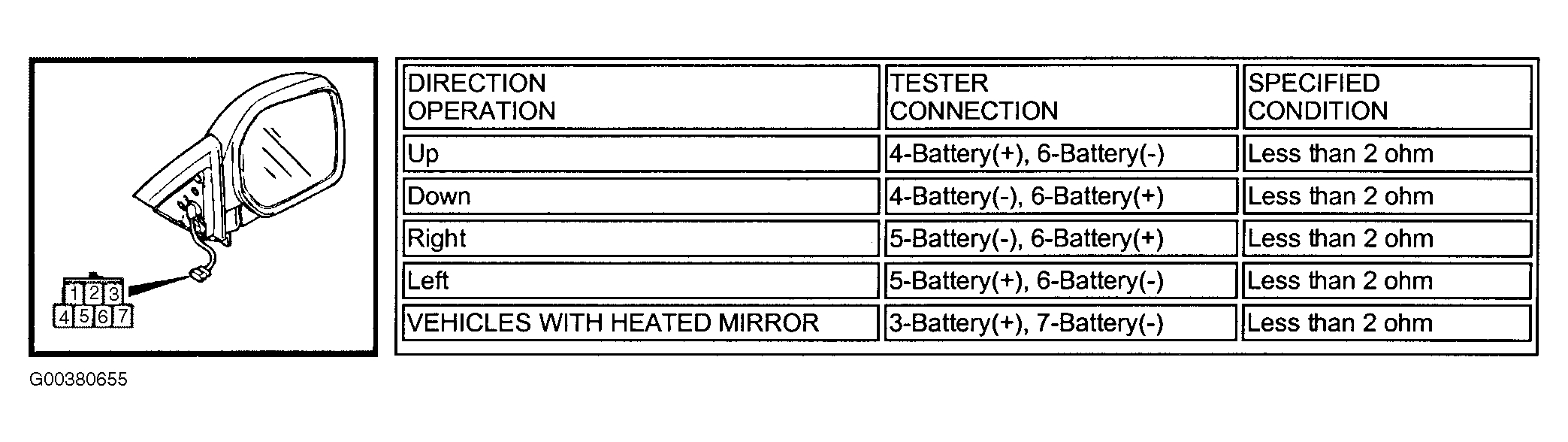

Fig 1: Checking Remote Controlled Mirror Assembly
G00380655Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
