Remote Controlled Mirror Switch Continuity Check

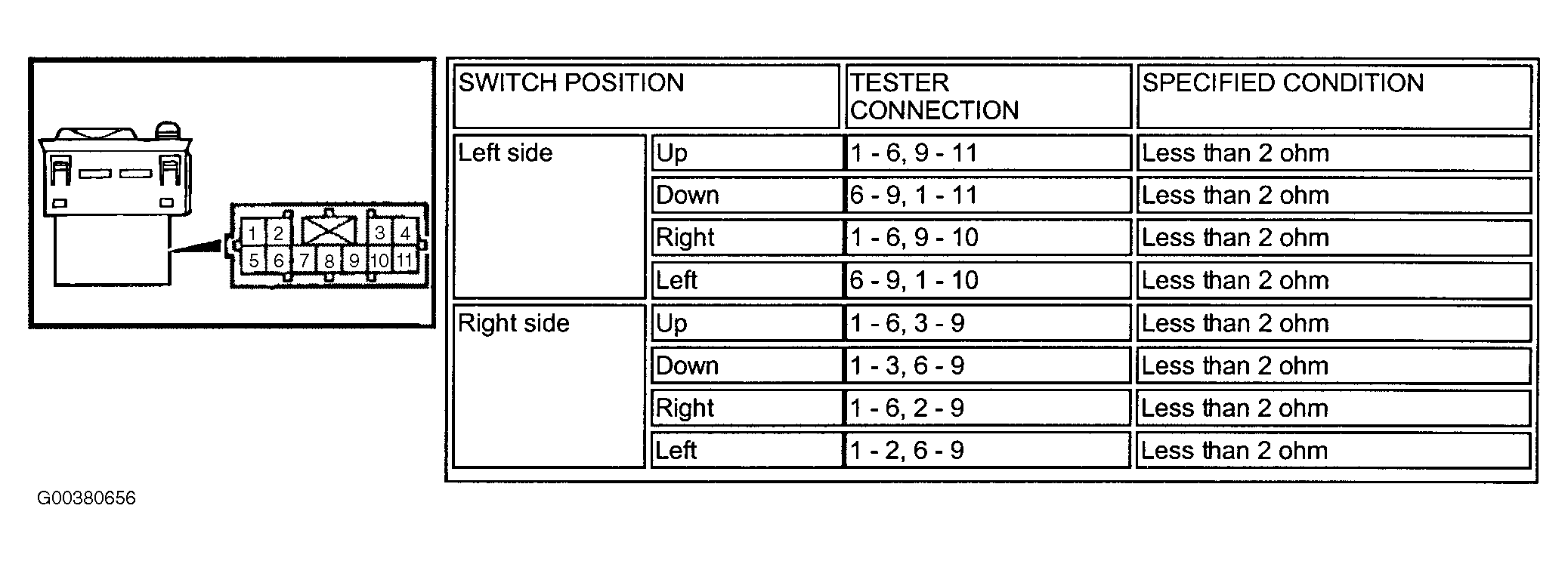

Fig 1: Checking Remote Controlled Mirror Switch Continuity
G00380656Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
