Disassembly And Assembly: Notes

CAUTION: Do not disassemble the pressure switch assembly and valve subassembly.

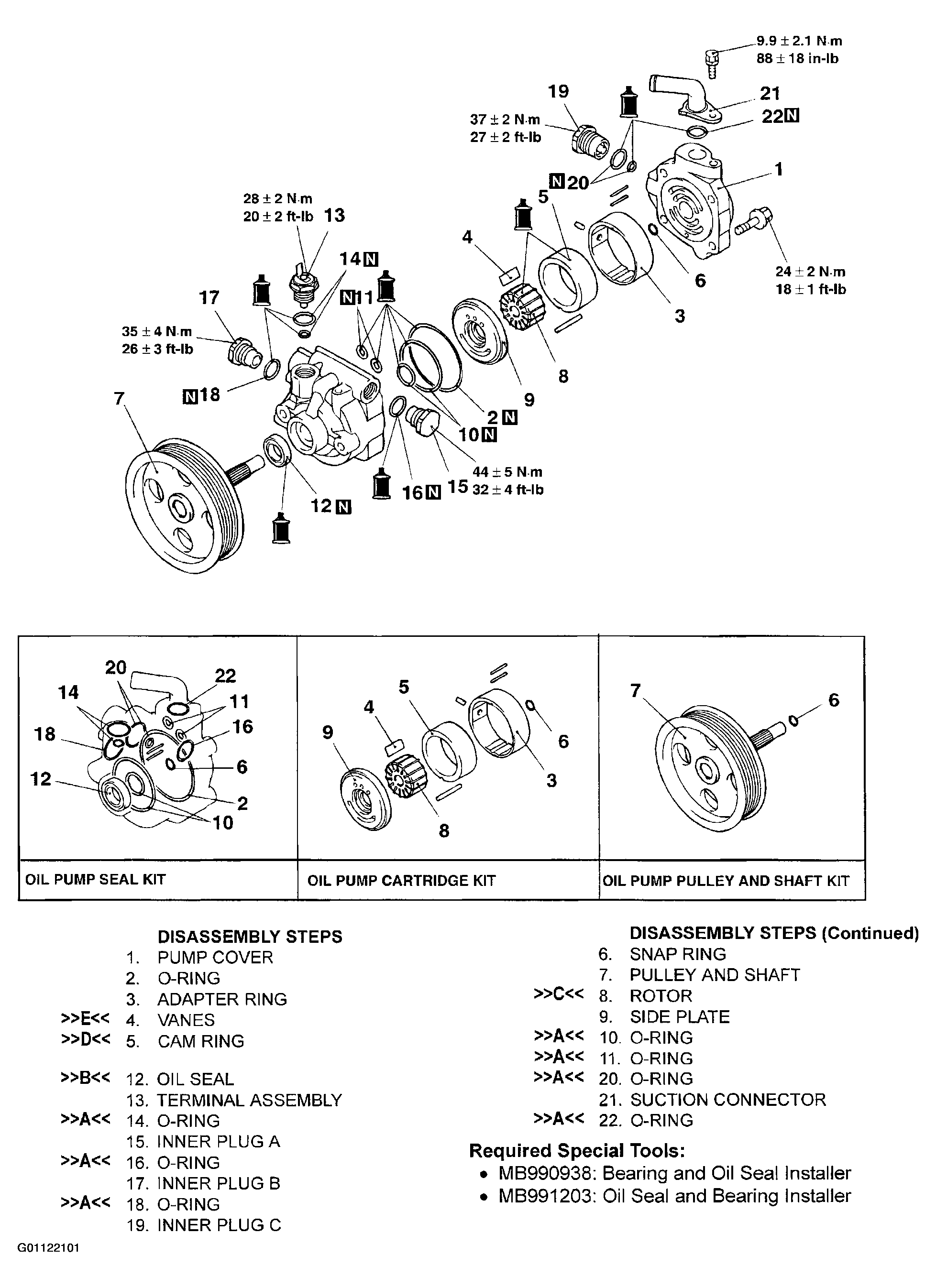

Fig 1: Exploded View Of Power Steering Pump
G01122101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
