Service Specifications: Generator

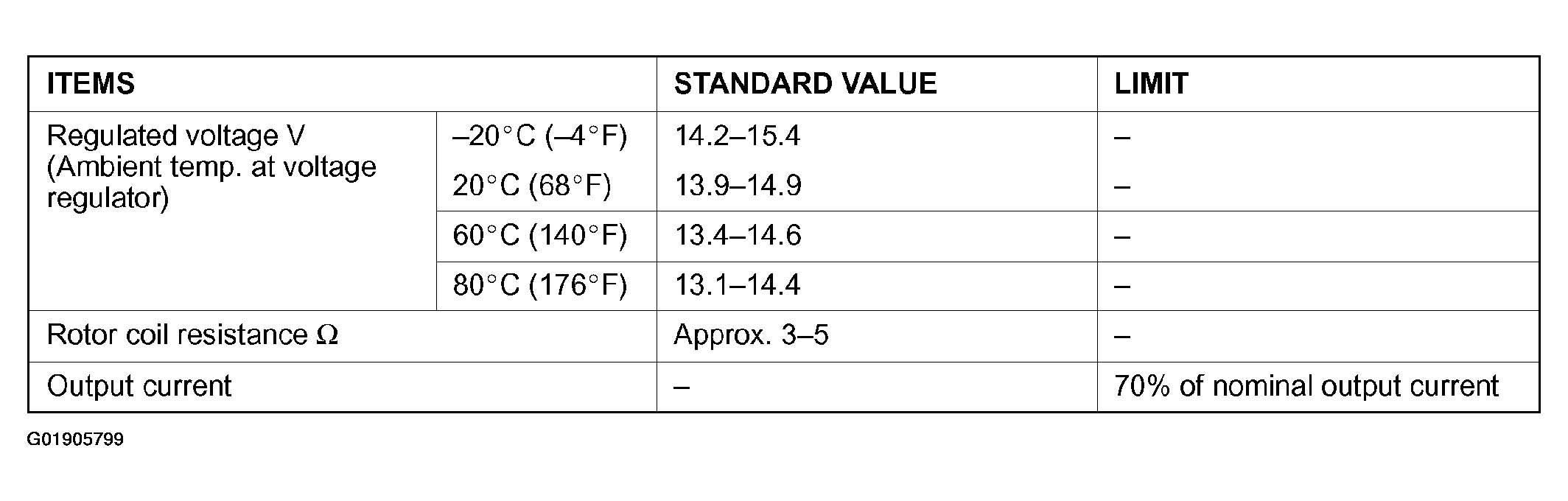

Fig 1: Generator Service Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
