Disassembly Service Points

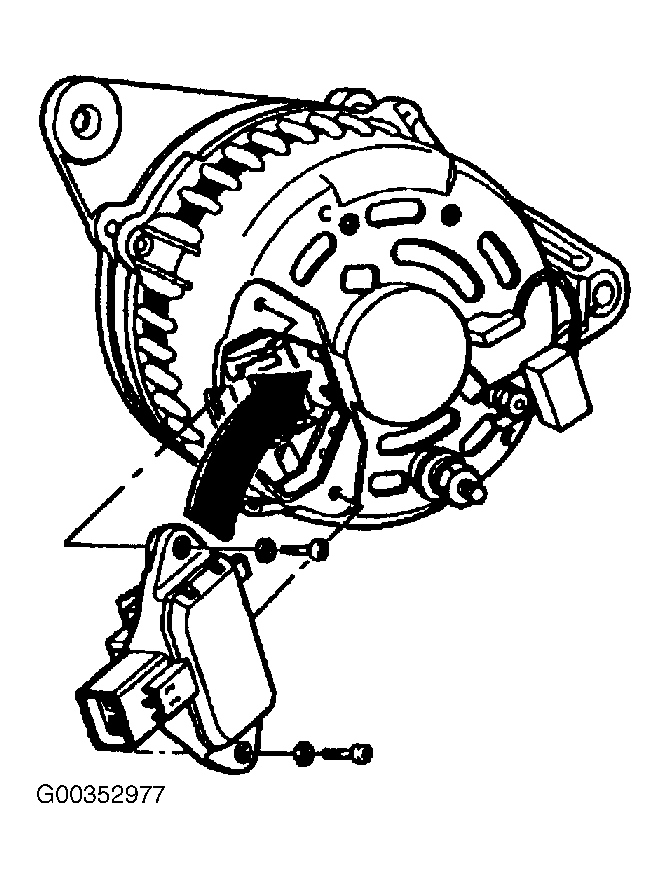

- A) Voltage Regulator Removal - Tilt the regulator slightly from the plug connection until the regulator clears the housing then lift clear. See Fig 1 .

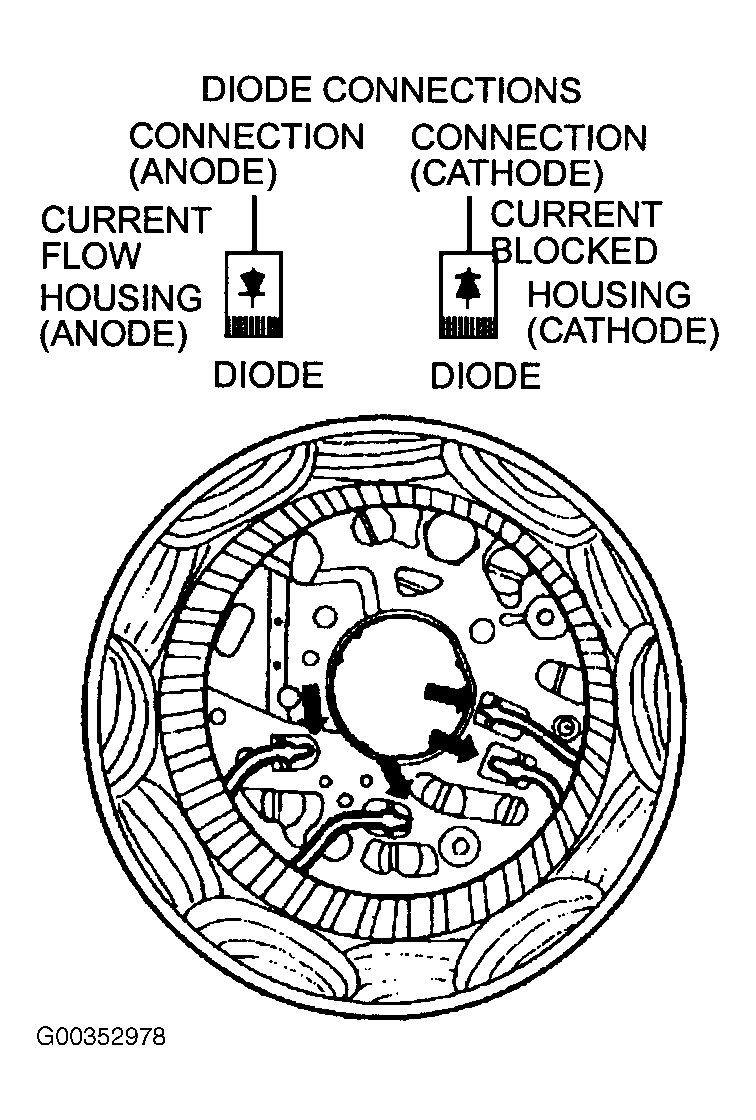

- B) Stator Removal - When removing stator, unsolder the stator leads soldered to main diodes on rectifier. See Fig 2 .
CAUTION:
When soldering or unsoldering, use care to make sure that heat of soldering iron is not transmitted to diodes for a long period. Finish soldering or unsoldering in as short a time as possible.
CAUTION:
Use care that no undue force is exerted to leads of diodes.
