System Construction Diagram

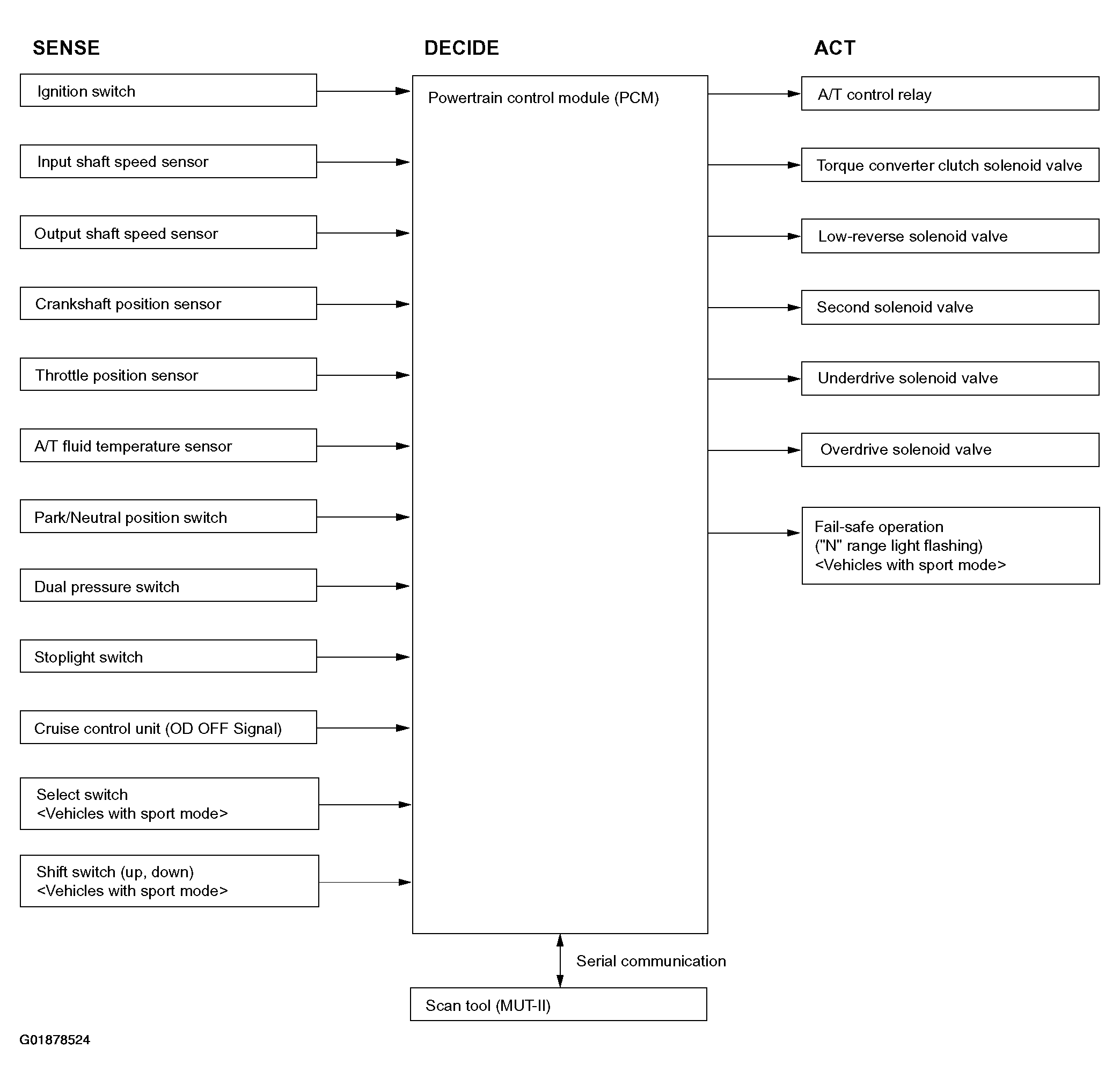

Fig 1: Automatic Transaxle System Construction Diagram
G01878524Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
