Eclipse

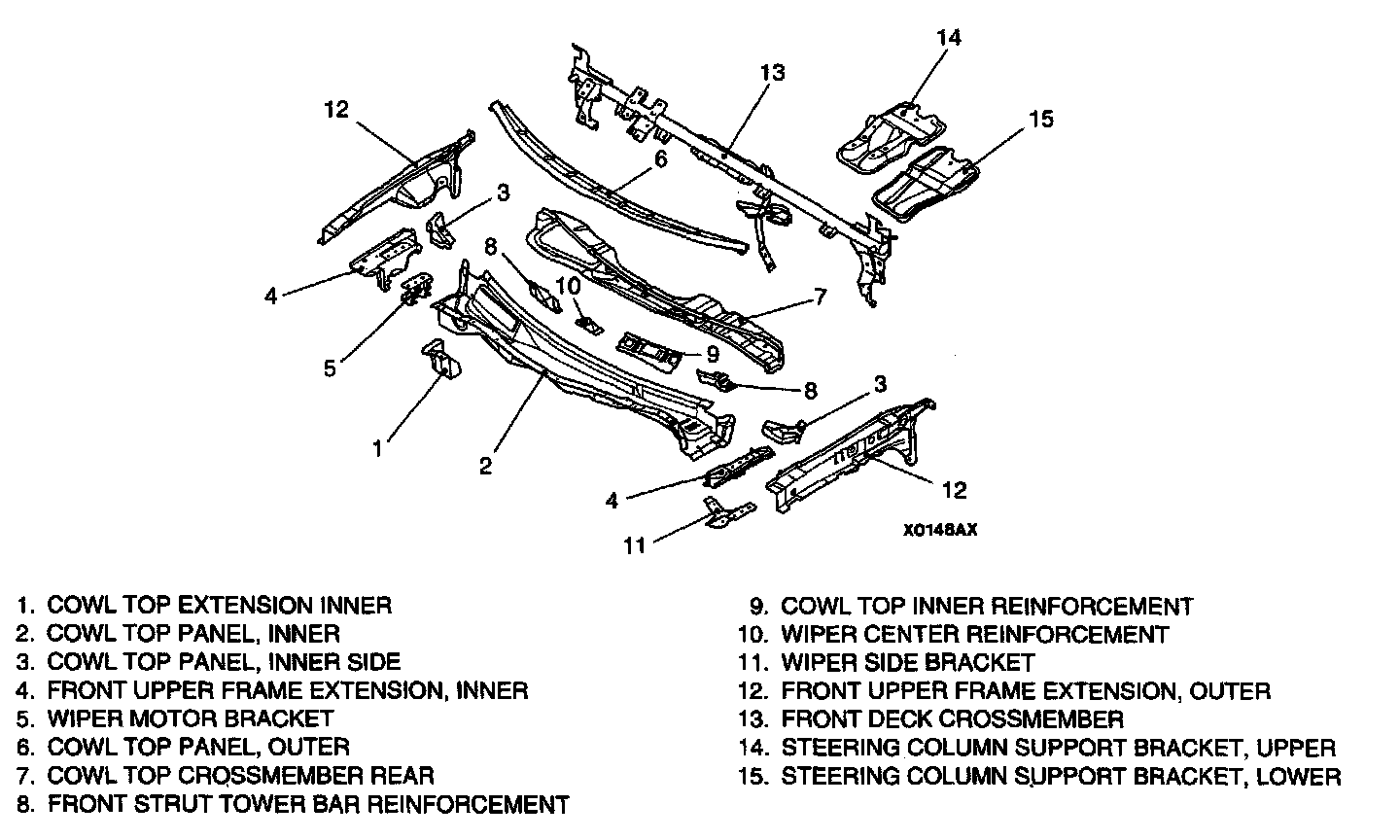

FRONT DECK




Large front upper frame extension outers have been adopted to increase the rigidity of the joints between the front pillars and the fender shield.
