Catalytic Converter

REMOVAL AND INSTALLATION

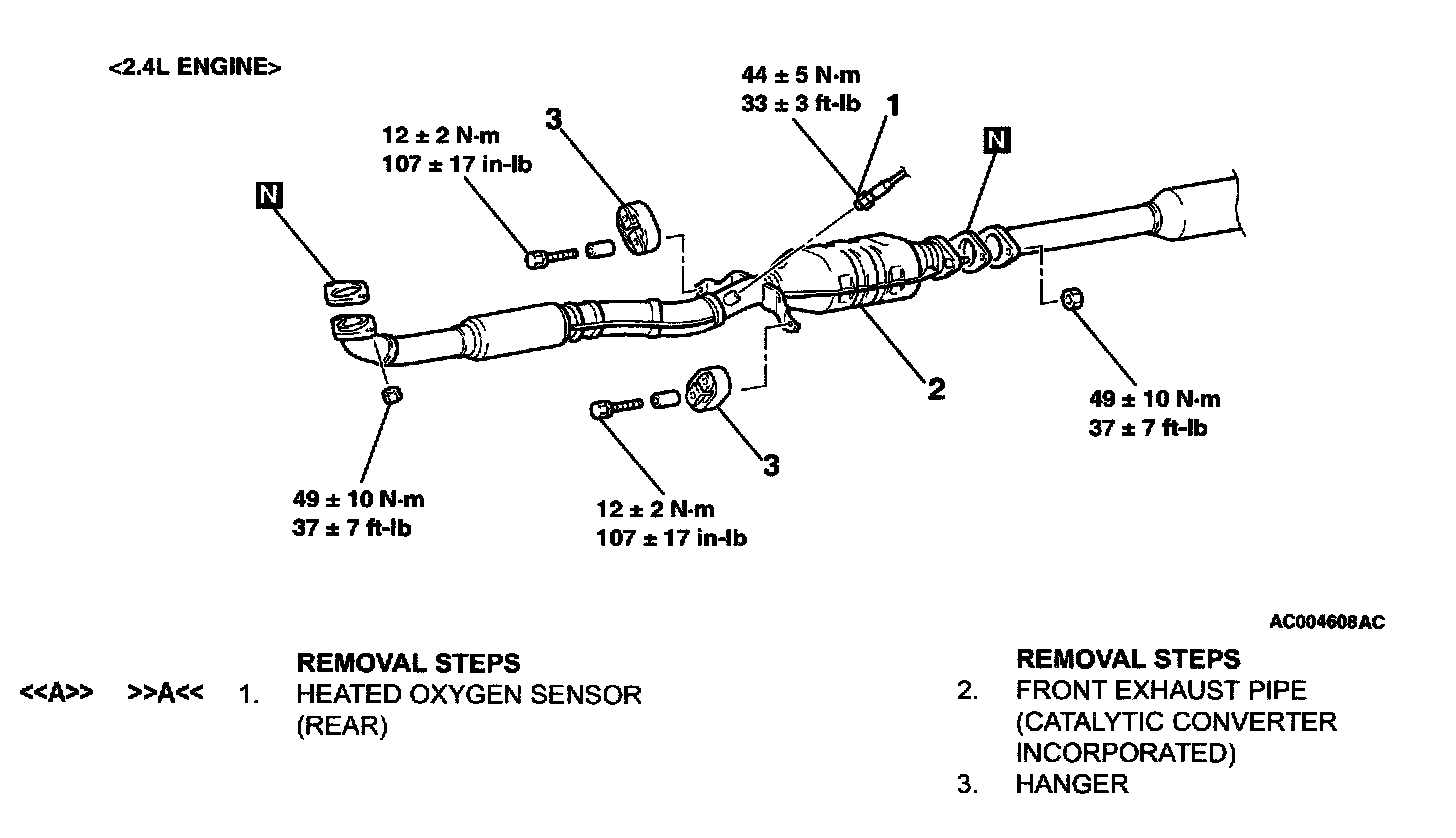

Catalytic Converter:






Required Special Tool:
- MD998770: Oxygen sensor wrench

REMOVAL SERVICE POINT

<> HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL




Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT

>>A<< RIGHT BANK HEATED OXYGEN SENSOR (FRONT)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/HEATED OXYGEN SENSOR (REAR) INSTALLATION




Use special tool MD998770 to installation the oxygen sensor.
