< 3.0L Engine (Vehicles With Variable Induction System) > Downshift Pattern

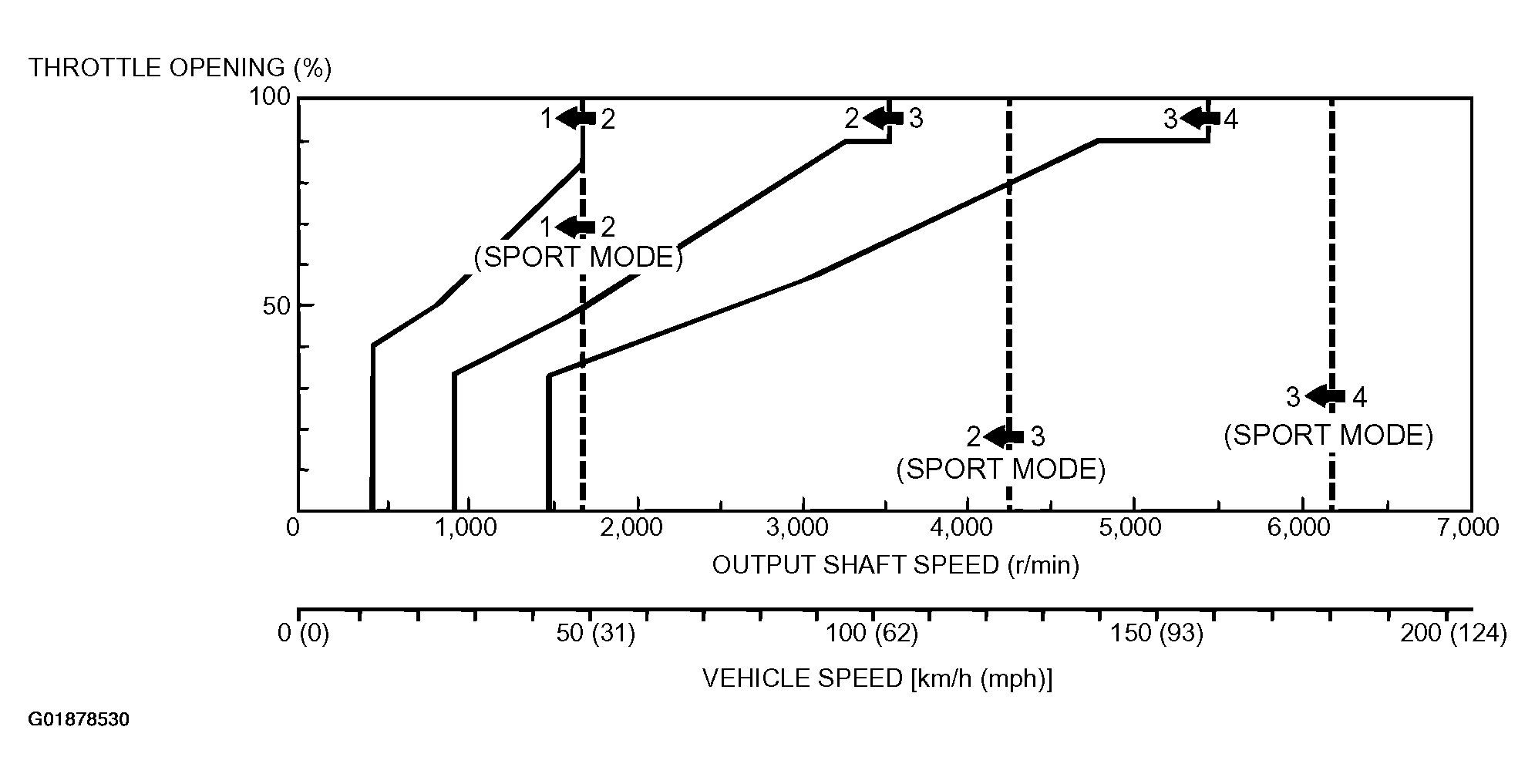

Fig 1: 3.0L Engine Shift Pattern Control (Vehicles With Variable Induction System) - Downshift Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
