Sectional View

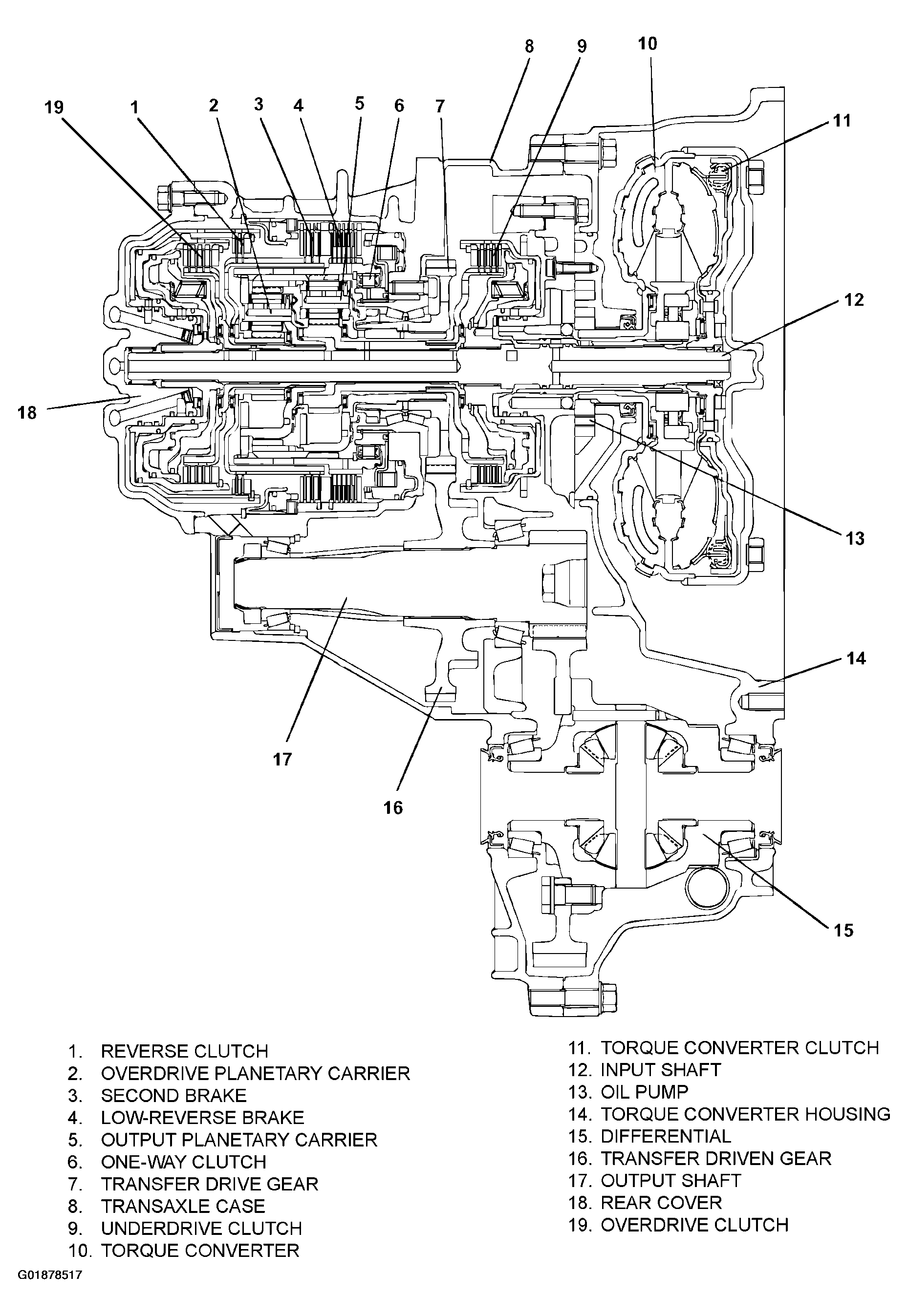

Fig 1: Sectional View Of Transaxle F4A42
G01878517Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

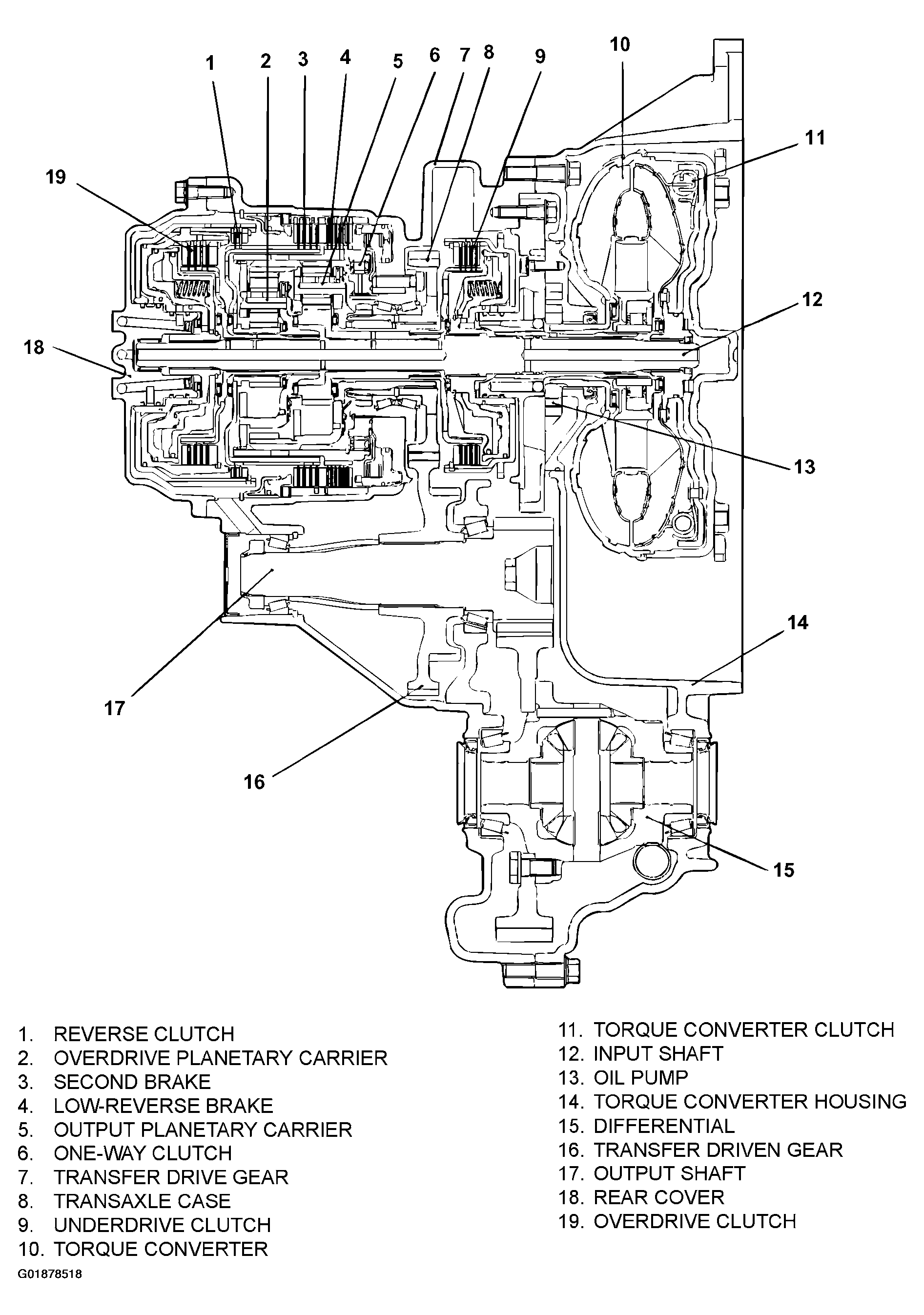

Fig 2: Sectional View Of Transaxle F4A51
G01878518Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
