Shift Lock Mechanism Check

Carry out the following inspections shown in illustration.

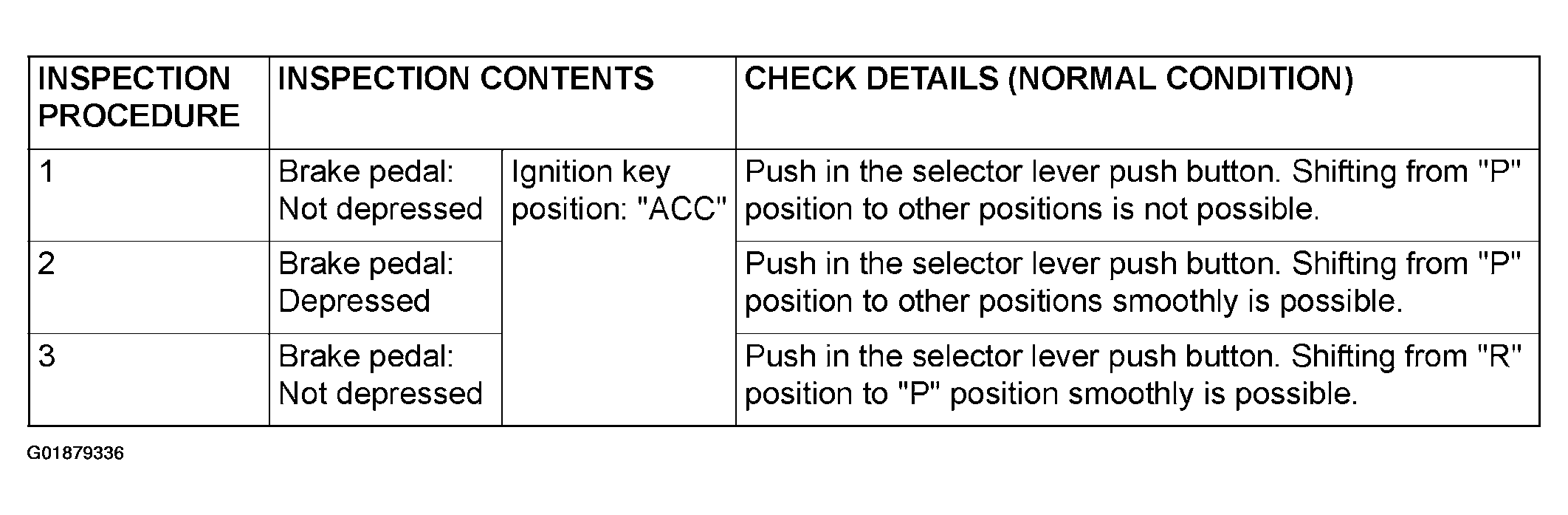

Fig 1: Shift Lock Mechanism Check Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the above operations are defective, adjust the shift lock cable as follows:
1. Remove the floor console. Refer to FLOOR CONSOLE ASSEMBLY .
2. Shift selector lever to "P" position.
3. Loosen the locking nut of shift lock cable.
4. Tighten the locking nut so that the end of the shift lock cable comes above the red marking of the lock cam.

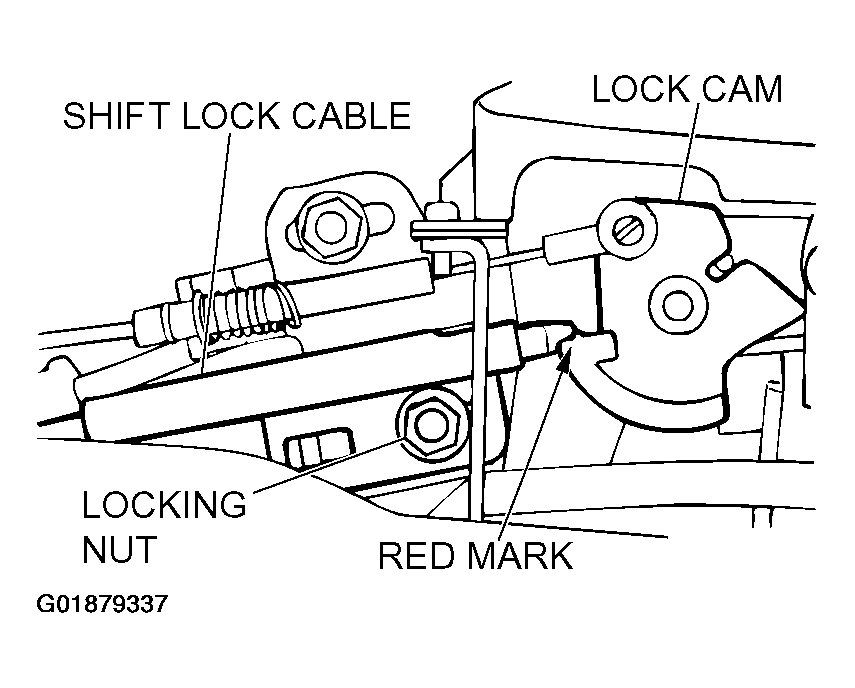

  Fig 2: Checking Shift Lock Mechanism
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Install the floor console.
After adjusting, check the operation once more. If the operation is still incorrect, replace the shift lock cable. Refer to INSPECTION .
