Removal And Installation

CAUTION: When removing and installing the transaxle control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

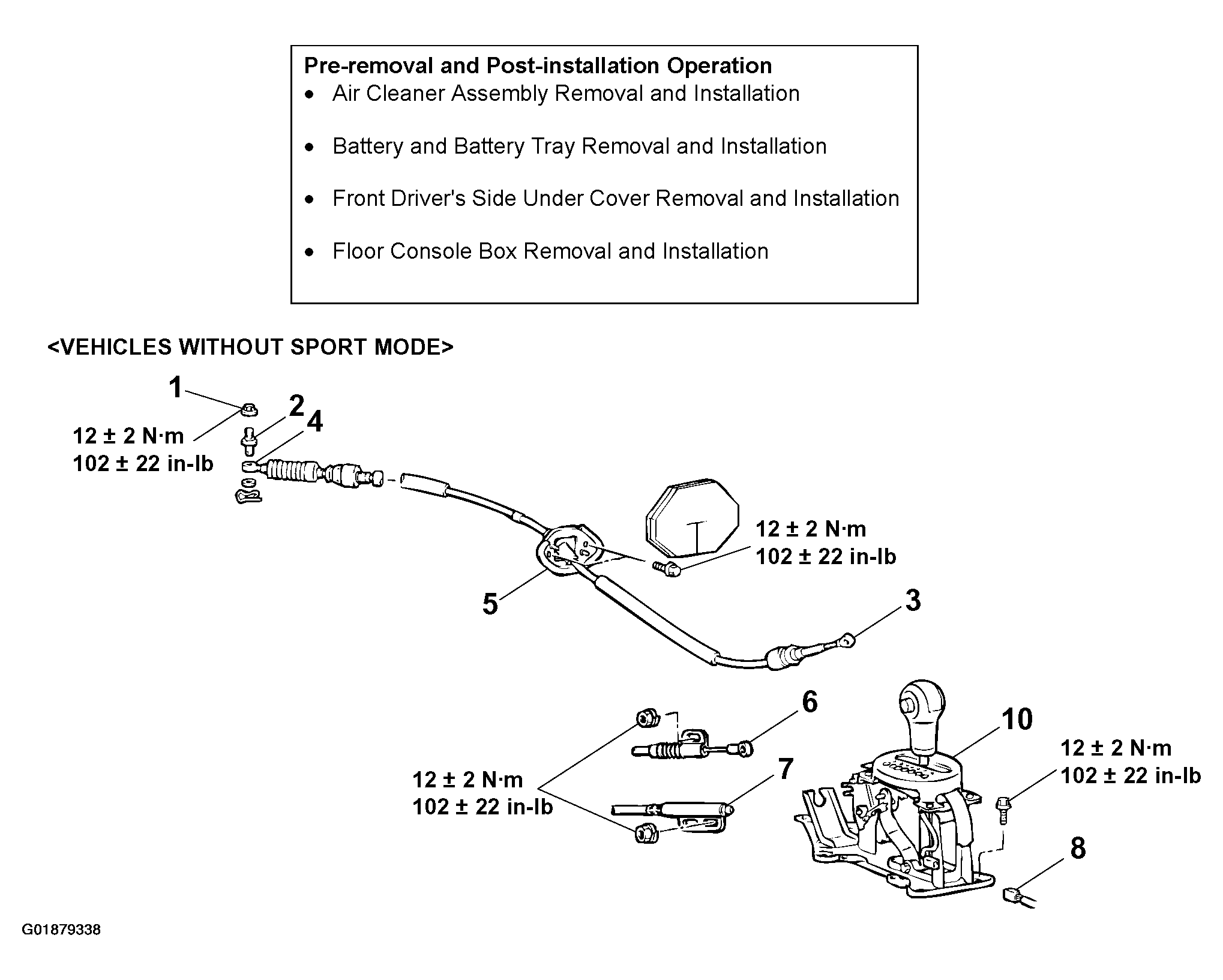

Fig 1: Exploded View Of Transaxle Control Components (Vehicles Without Sport Mode)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

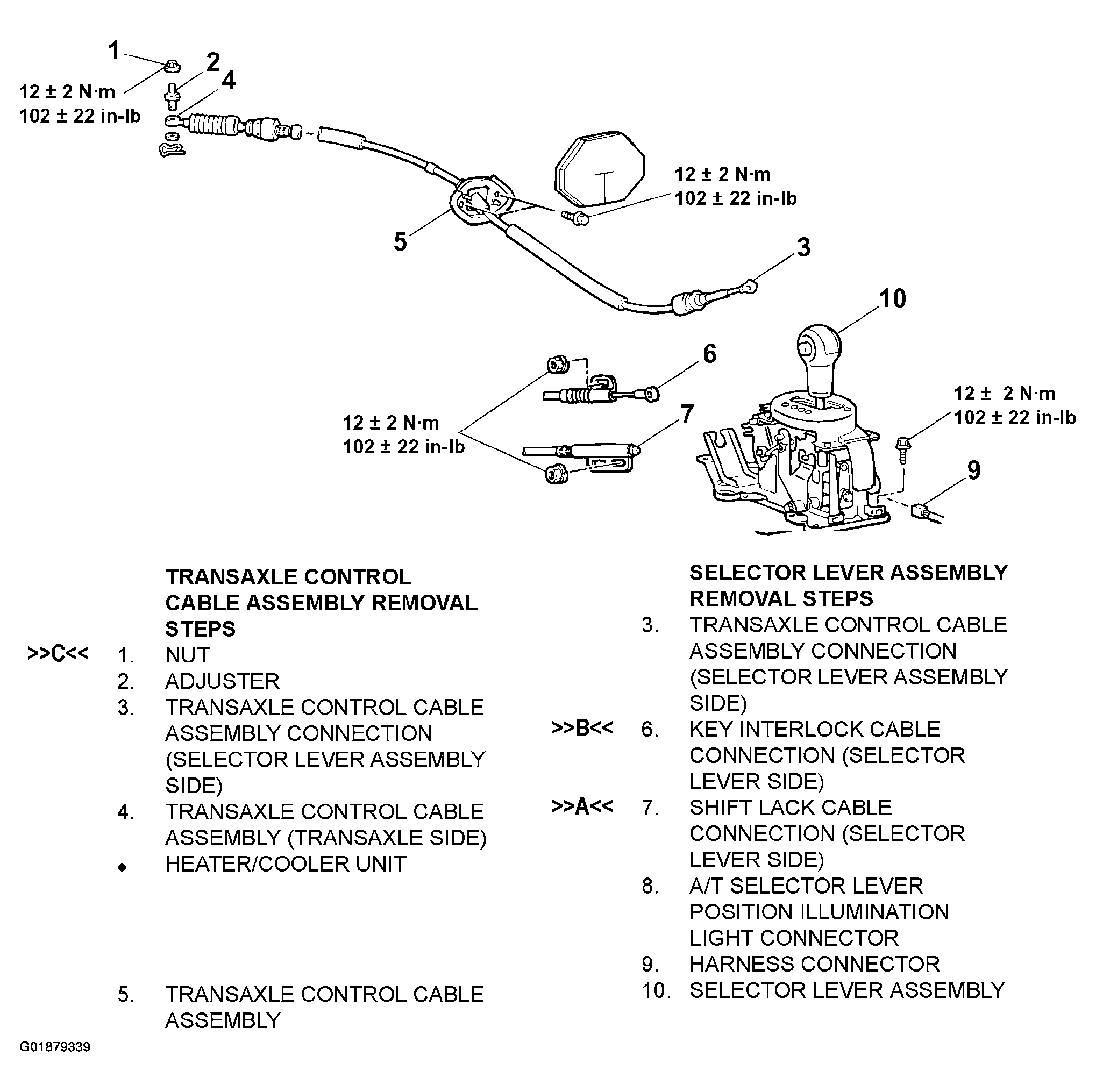

Fig 2: Exploded View Of Transaxle Control Components (Vehicles With Sport Mode)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
