Diagnostic Trouble Code Chart

Check according to the inspection chart that is appropriate for the diagnostic trouble code.

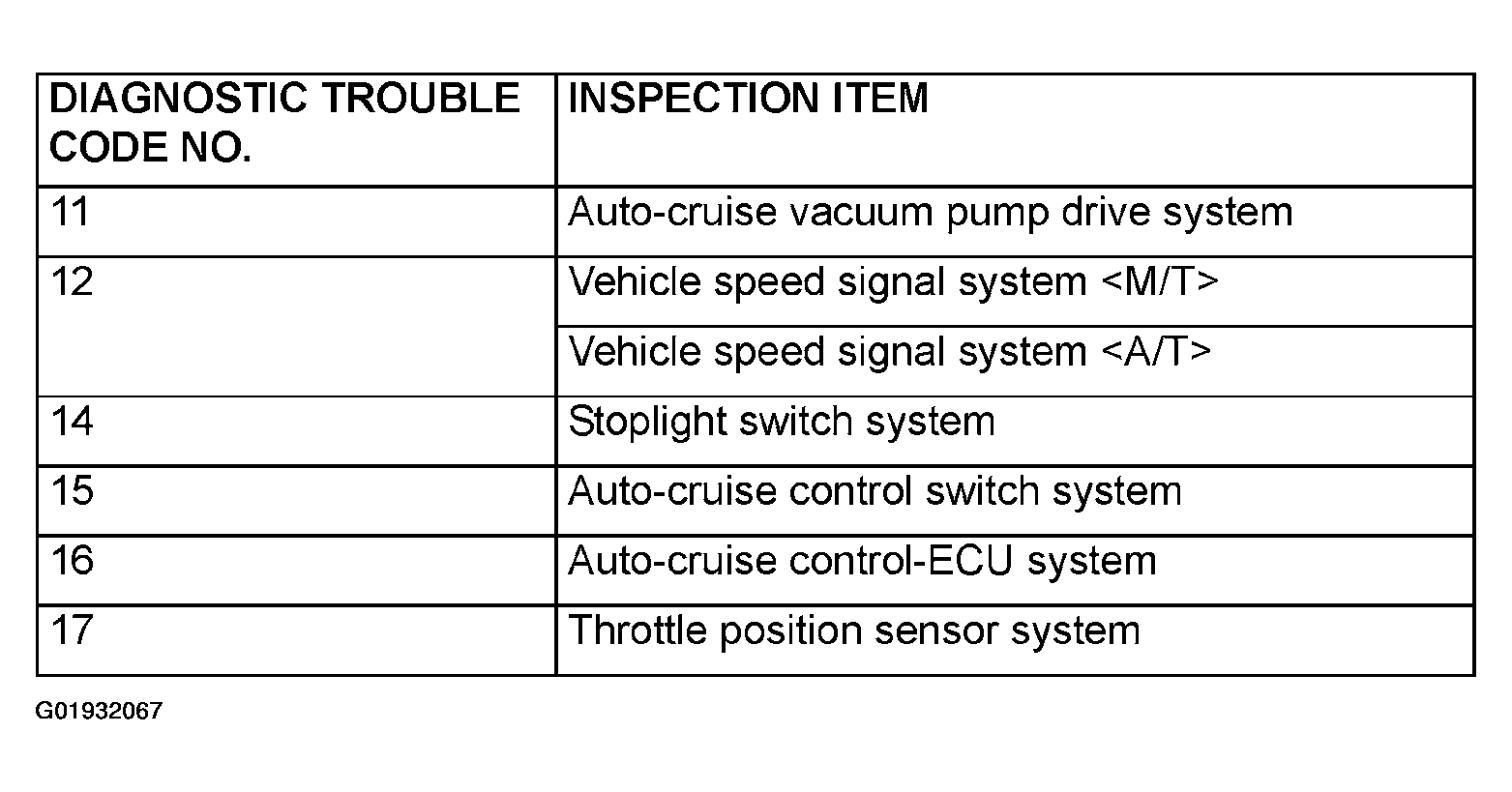

Fig 1: Auto-Cruise Control System Diagnostic Trouble Code Chart
G01932067Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
