General Information: Notes

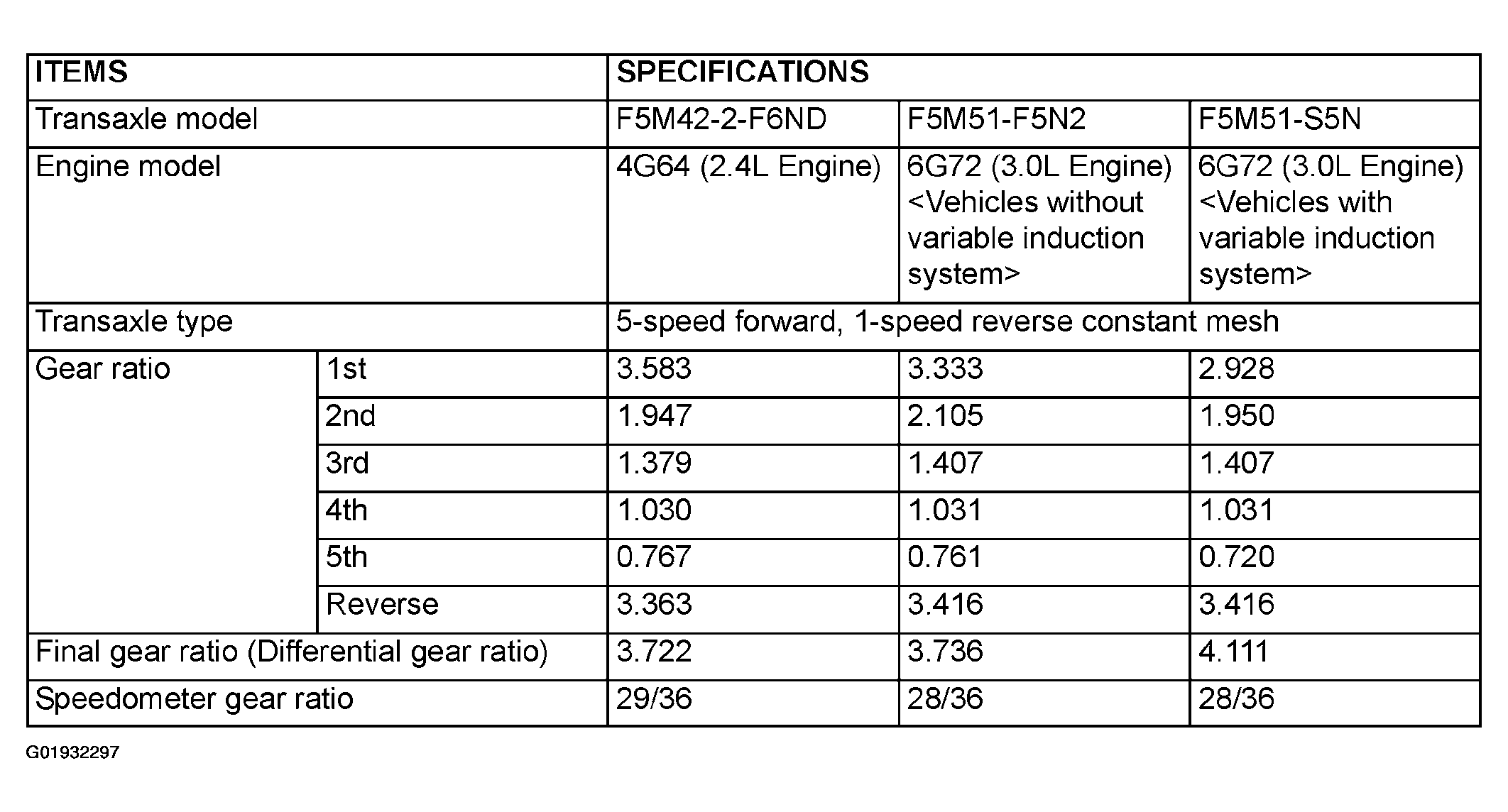

Fig 1: Manual Transaxle Specifications

G01932297

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
