Camshaft, Engine

CAMSHAFT AND CAMSHAFT OIL SEAL REPLACEMENT W/ RELATED COMPONENTS

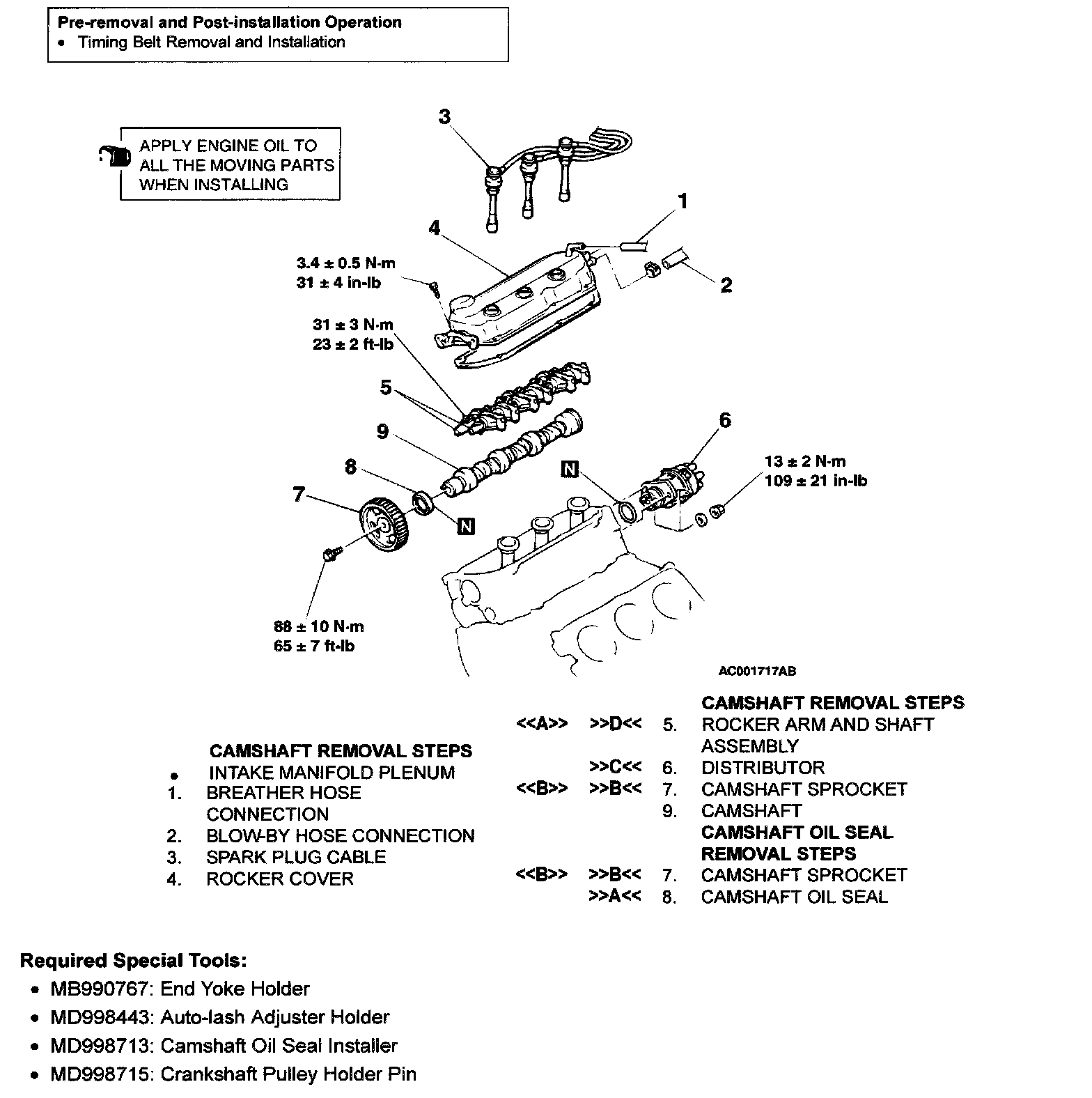

Part 1 of 2

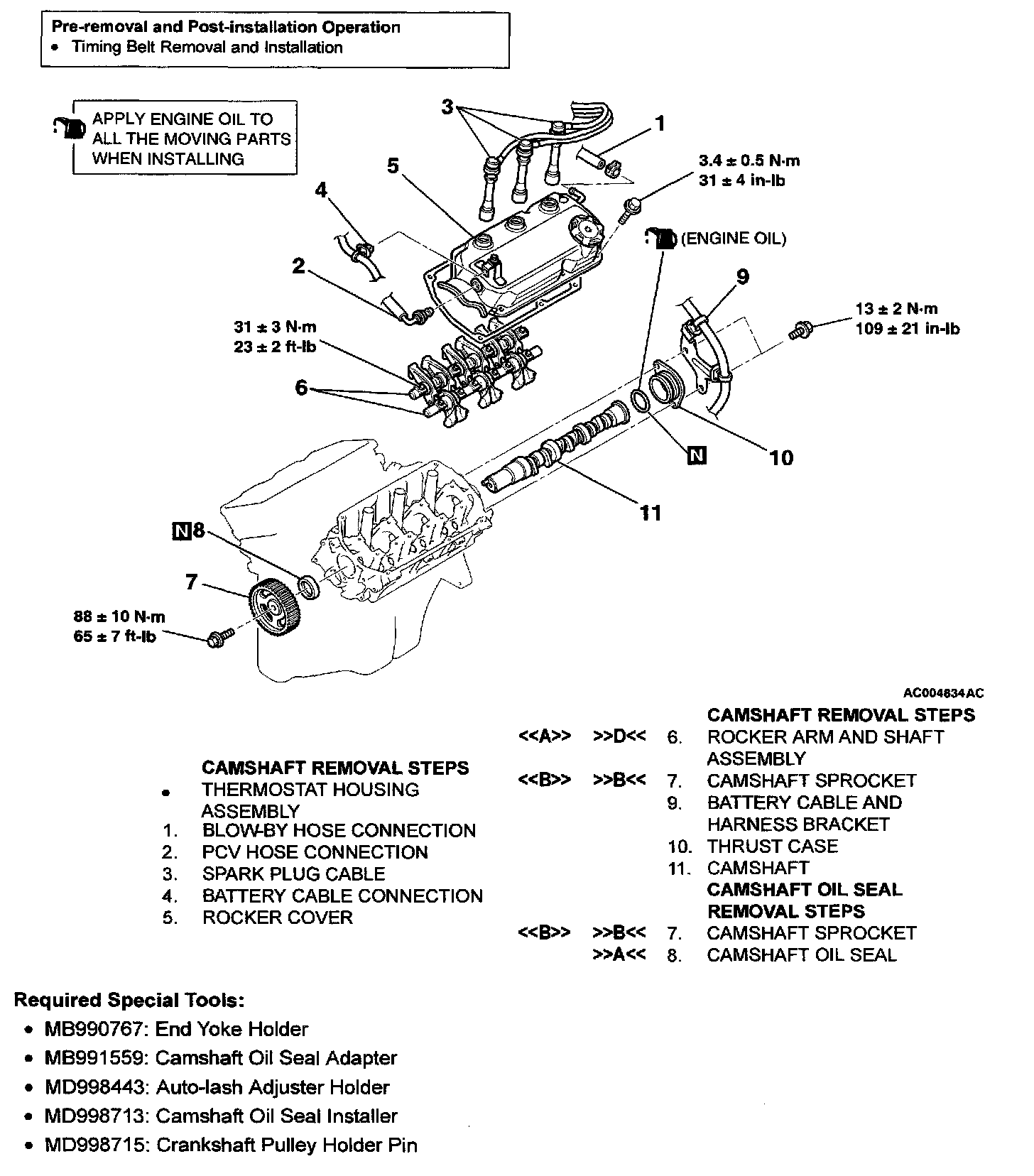

Part 2 of 2
