Scan Tool Testing and Procedures

CONNECTION OF MULTI-USE TESTER II

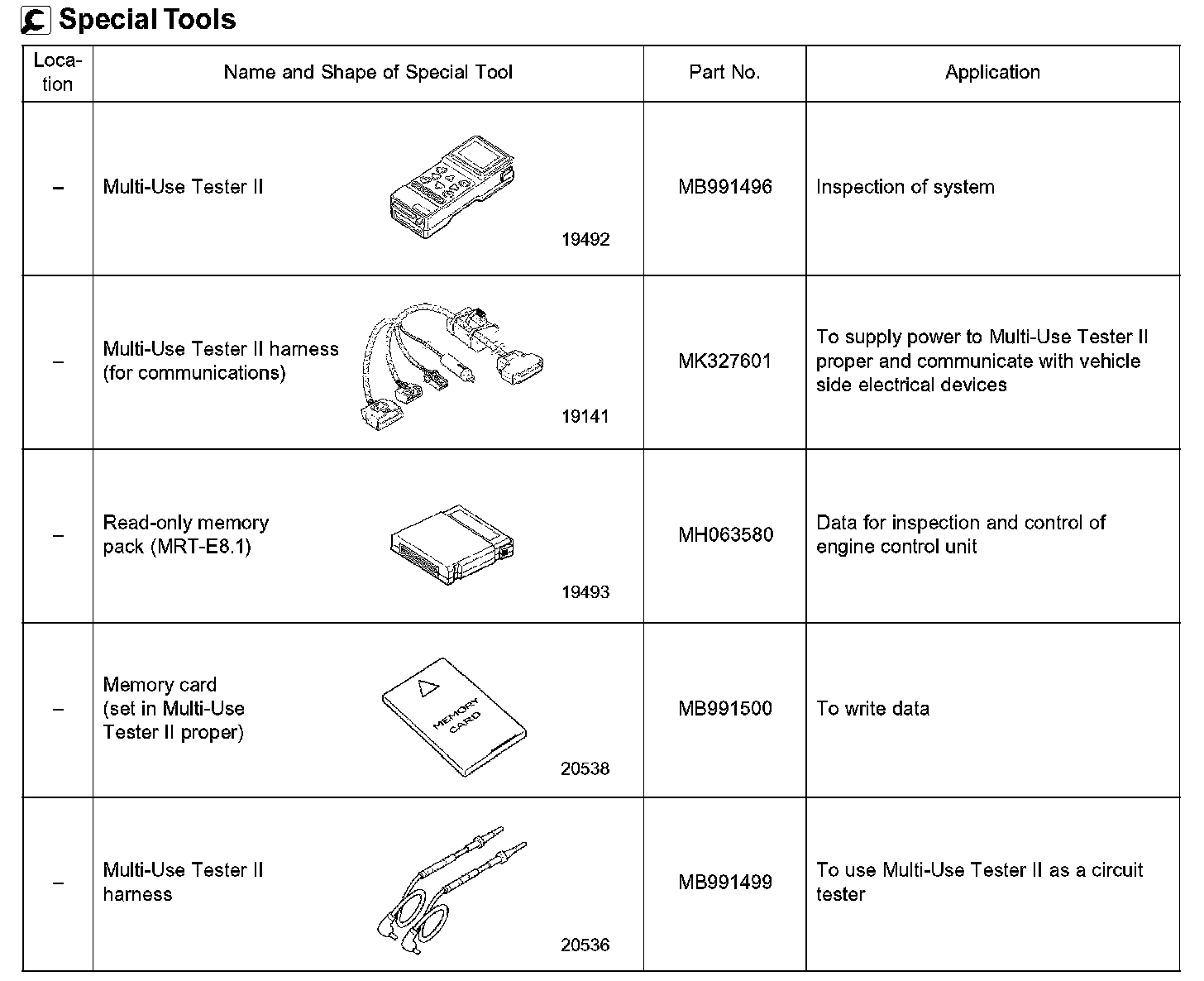

Special Tools












- Place the starter switch at the LOCK position.
- Connect the connector A to the cigar lighter socket.
- Connect the Multi-Use Tester II connector C (16 pins) to the data link connector B (16 pins).

NOTE: For the operating procedures for the Multi-Use Tester II, refer to the instruction manual for the Multi-Use Tester II.
