< 2.4L Engine > Downshift Pattern

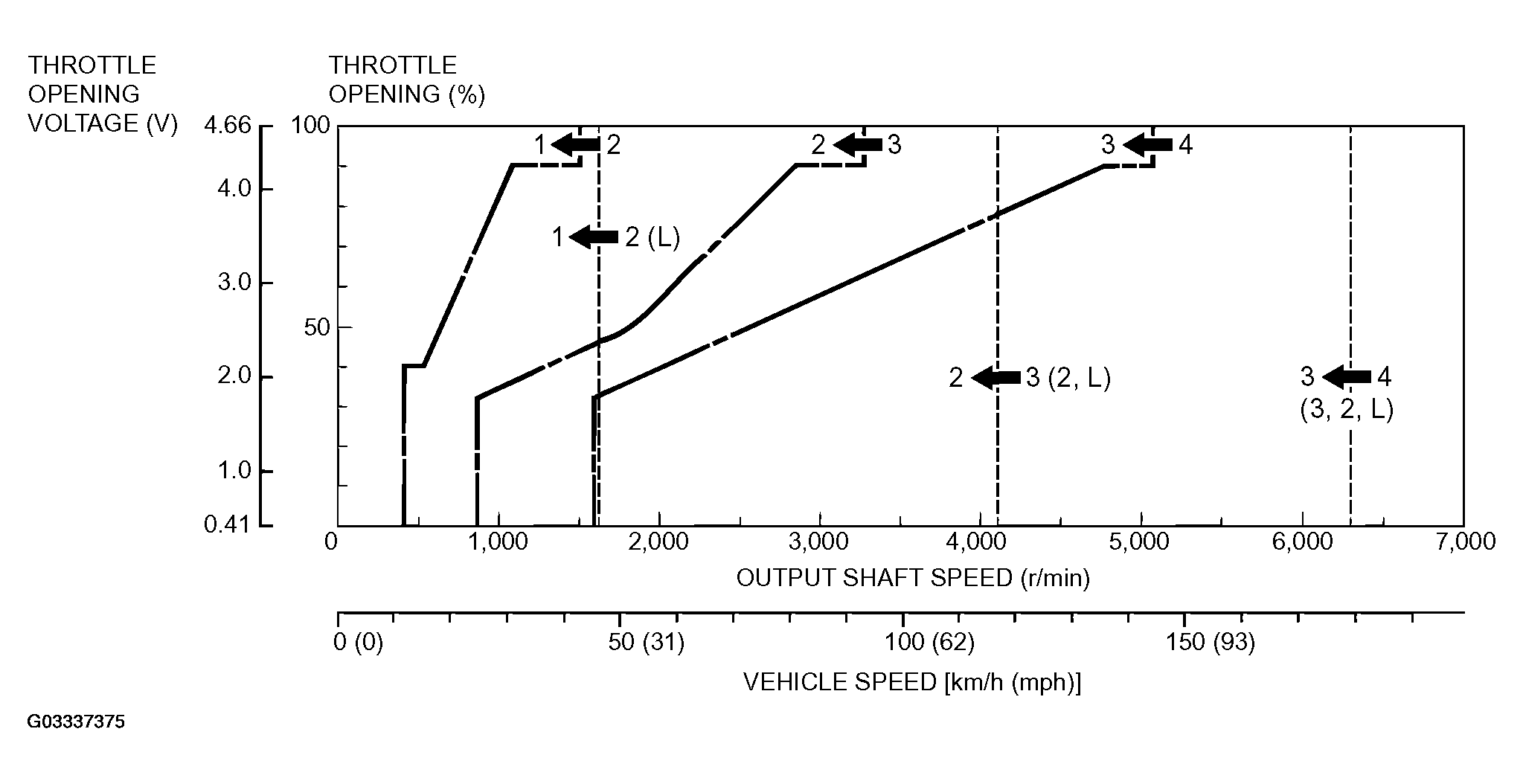

Fig 1: Shift Pattern Control - 2.4L Engine Downshift Pattern
G03337375Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
